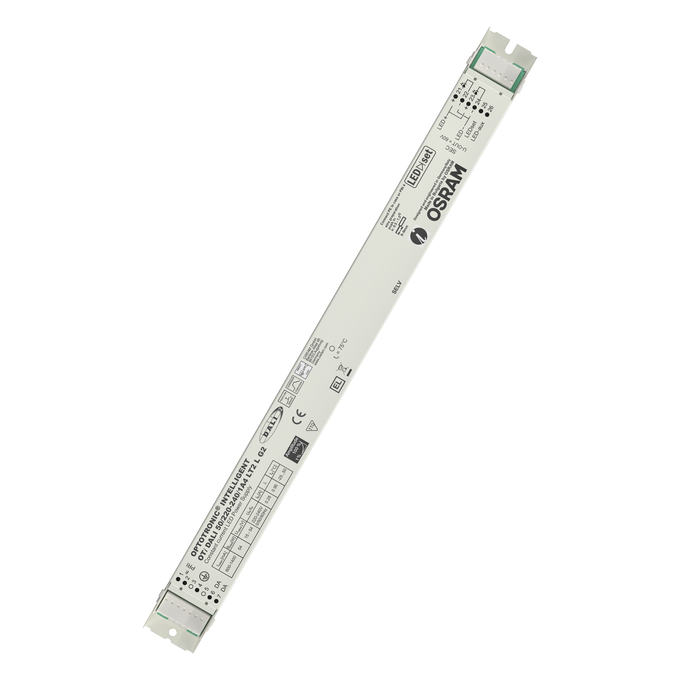

OSRAM 4052899551787, OTi DALI LED Driver 50W (1.4A, G2, 220-240V)

OSRAM 4052899551787, OTi DALI LED Driver 50W (1.4A, G2, 220-240V)

Power Supplies
OSRAM

OSRAM stands at the forefront of lighting innovation, shaping the future of illumination through precision engineering and advanced technology. Known for its exceptional build quality and performance, OSRAM delivers reliable LED drivers, control gear, and smart lighting components tailored for demanding professional applications. Whether for industrial projects or modern lighting systems, OSRAM ensures efficiency, durability, and consistent results you can trust.

Read more
https://www.polytrade.global/web/image/product.template/33901/image_1920?unique=e933da6
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand OSRAM
Manufacturer Code 4052899551787
General Specifications
Destination Indoor
Usage Commercial, Industrial
Working Temperature -25 >< +50 °C
Rated Input Voltage 220 - 240 V
Rated Output Voltage 15 - 54 V
Rated Current -
IP Rating IP20
Length 360 mm
Height 21.0 mm
Width 30.0 mm
Rated Output Power 12 - 50 W

General Description & Application

Product benefits
  • Fully programmable via software (DALI Interface)
  • Flexible current setting (LEDset2)
  • Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
  • High-quality dimming of 1…100 % by amplitude dimming (except 80 W versions)
  • High quality of light thanks to <1% output ripple current
  • Very high efficiency
  • Very low standby power consumption: < 0.15 W *
  • Fulfill safety requirement due to overload, overtemperature, Hot Plug protection
    • Versatile scope of application due to OSRAM DALI Technology:
    • Easy to use in corridors and restrooms because of three-level Corridor function
    • Touch DIM application: easy to control via pushbutton or sensor
    • Energy efficient Touch DIM operation due to automatic switch-off at sufficient residual light
    • Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13, appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off switchable
    • Feedback of power consumption and operating hours (Fit for SMART GRID)
    • Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting
    • Luminaire information for easy maintenance
    Areas of application
    • Linear lighting for office, education, storage areas and retail
    • Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
    • Suitable for luminaires of protection class I
    Product features
    • Line frequency: 0 Hz | 50 Hz | 60 Hz
    • Versatile DALI window driver up to 80 W due to flexible output characteristic
    • Supply voltage: 220…240 V
    • Available with output current range: up to 2,100 mA
    • Constant Lumen Output (CLO)
    • Integrated customizable thermal management (Driver Guard)
    • DALI-2 certified (Part -101,-102 and -207)
