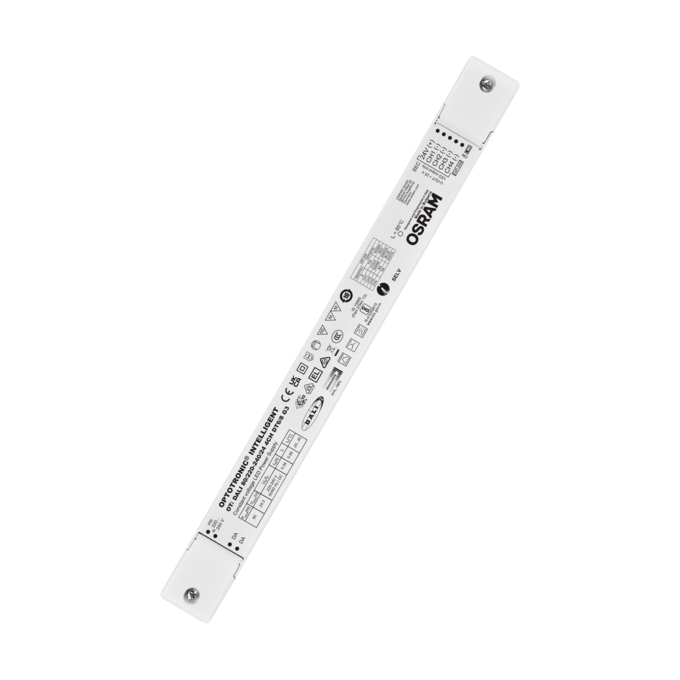

OSRAM 4062172274302, OTi DALI LED Driver 80W (24V, 4CH, DT6/8, G3)

OSRAM 4062172274302, OTi DALI LED Driver 80W (24V, 4CH, DT6/8, G3)

Power Supplies
OSRAM

OSRAM stands at the forefront of lighting innovation, shaping the future of illumination through precision engineering and advanced technology. Known for its exceptional build quality and performance, OSRAM delivers reliable LED drivers, control gear, and smart lighting components tailored for demanding professional applications. Whether for industrial projects or modern lighting systems, OSRAM ensures efficiency, durability, and consistent results you can trust.

Read more
https://www.polytrade.global/web/image/product.template/33915/image_1920?unique=e933da6
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand OSRAM
Manufacturer Code 4062172274302
General Specifications
Destination Indoor
Usage Commercial, Industrial
Working Temperature -20 >< +45 °C
Rated Input Voltage 220 - 240 V
Rated Output Voltage 24 V
Rated Current -
IP Rating IP20
Length 346 mm
Height 22.0 mm
Width 32.0 mm
Rated Output Power 80 W

General Description & Application

Product benefits
  • Intelligent power matching thanks to Smart power supply
  • Slim form factor for mounting on the cove or in linear luminaires
  • No stroboscopic effect thanks to patented high PWM frequency management (> 2 kHz)
  • Suitable for installation in emergency lighting systems according to EN 60598-2-22
  • Available as single-channel or multi-channel with DT6 and DT8 in one device
  • DALI message detection "LED Module failure"
  • IP rating: IP20
Areas of application
  • Cove lighting, wall washer, corridor, handrail, luminous ceilings
  • Suitable for use in luminaires of protection class I and II
Product features
  • Dimmable via Touch DIM
  • LED driver whose output power can be shared arbitrarily among the 2 or 4 channels
  • Dimming range: 0.1…100 %
  • Line frequency: 0 Hz | 50 Hz | 60 Hz
Equipment / Accessories
  • Suitable for 24 V LED modules
