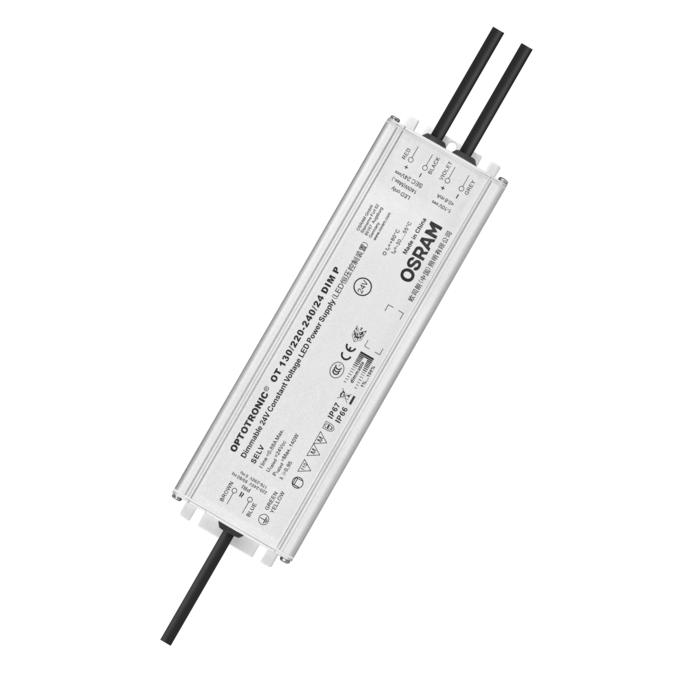

OSRAM 4052899545885, LED Driver 130W (24V, DIM, 220-240V)

OSRAM 4052899545885, LED Driver 130W (24V, DIM, 220-240V)

Power Supplies
OSRAM

OSRAM stands at the forefront of lighting innovation, shaping the future of illumination through precision engineering and advanced technology. Known for its exceptional build quality and performance, OSRAM delivers reliable LED drivers, control gear, and smart lighting components tailored for demanding professional applications. Whether for industrial projects or modern lighting systems, OSRAM ensures efficiency, durability, and consistent results you can trust.

Read more
https://www.polytrade.global/web/image/product.template/33940/image_1920?unique=e933da6
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand OSRAM
Manufacturer Code 4052899545885
General Specifications
Destination Outdoor
Usage -
Working Temperature -30 >< +55 °C
Rated Input Voltage 220 - 240 V
Rated Output Voltage 24.2 V
Rated Current -
IP Rating IP66/IP67
Length 220 mm
Height 37.0 mm
Width 63.0 mm
Rated Output Power 130 W

General Description & Application

Product benefits
  • Large range of products from 20 W to 250 W
  • Installation in very cold and hot environments
  • Very stable output power
  • High electronical reversible short-circuit, overload, overtemperature protection
  • Smart Power Supply: boosting power to turn on cold LEDs
  • Independent installation possible
  • Dimming range: 1…100 %
Areas of application
  • Facades, public squares, cruise ships
  • Signage
  • Suitable for indoor and outdoor installations
Product features
  • DC mode functionality
  • Type of protection: IP66 and IP67
  • Surge protection: up to 4 kV (L-N) / 6 kV (L/N-PE)
  • Wide operating temperature range: -30…+55 °C
  • Lifetime: up to 50,000 h (temperature at max. tc )
  • Dimmable via fully isolated 1…10 V interface
