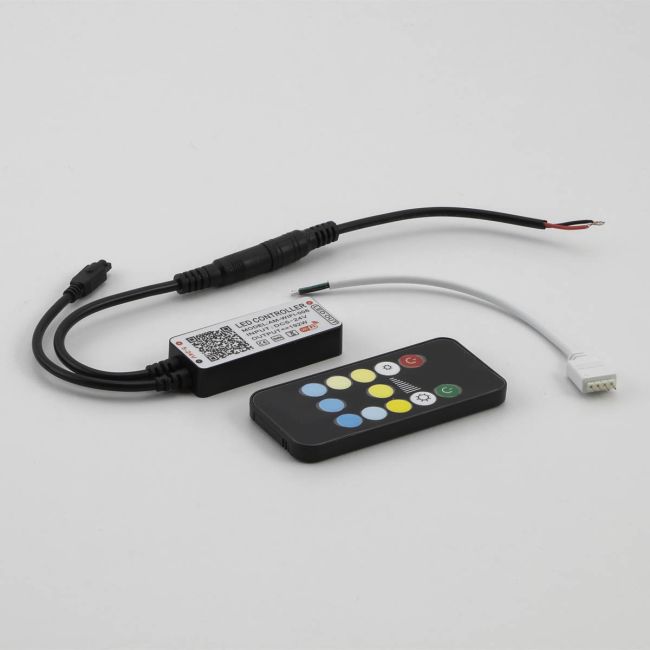

ARELUX CTR003CCTTY, CCT WiFi Controller with IR Remote (Tuya)
ARELUX
ARELUX offers professional LED control solutions including controllers, dimmers, and smart interfaces compatible with WiFi, RF, DMX, and DALI systems, suitable for residential and commercial lighting applications.
Read more|
General Description & Application RGB and brightness controller for RGB LEDs strips, with two output channels. The control is performed through the Wi-Fi application ARELUX SMART (TUYA). Delivered also with remote control in infrared. Product type: Controller Housing/structure: The housings of the controller in white ABS plastic. Electrical gear: Female connector, jack type (DC entry) with 100 mm lenght of the cable. Input voltage 5-24V DC for the controller. Two female 4 pins connector for the two output channels, with 100 mm length of the cables each. Delivered with a set of jack and 4 pins male connectors (two pieces). Infrared remote control with 44 keys. Three buttons, located on the top of the control element housing. First (up) button is for ON/OFF (short press) and Wi-Fi pairing (long press). The second (middle) is for music mode and the last (down) is for switching 7 static colors (short press) and for adjustment of the brightness (long press). Control of colors and brightness adjustment of LEDs RGB strips, using the TUYA Wi-Fi application ARELUX SMART. In the absence of the wireless network, the multifunctional infrared remote control can be used to make the adjustment. The maximum distance of the remote control is 8-10m. |
