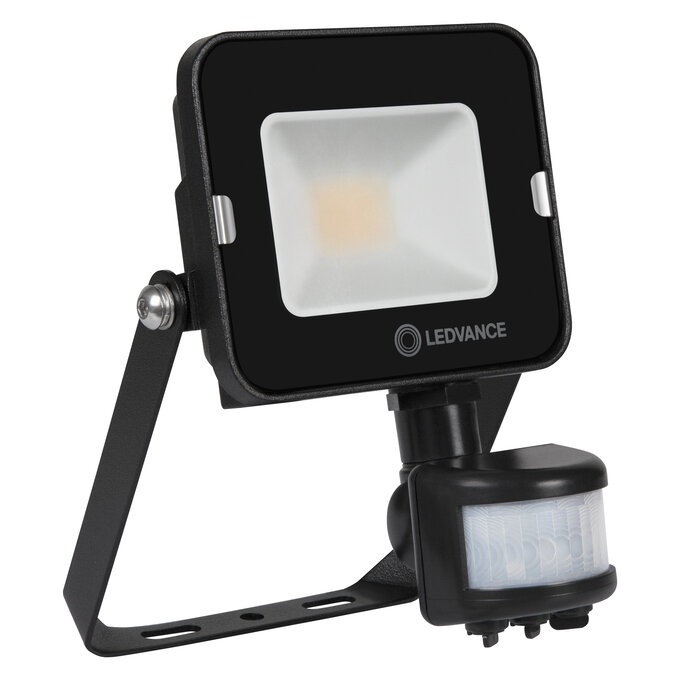

LEDVANCE 4058075575240, Floodlight Compact LED 10W 4000K Symmetrical Beam 100° with Sensor, Black

General Description & Application

Product benefits

• Robust, yet light and compact design
• Demand optimized illumination due to flexible and programmable sensor
• Easy adjustment of sensor range, daylight detection and hold time
• Always-on override, activated via special mains switching pattern
• Safe and very uniform illumination, due to frosted and tempered glass diffuser
• No upper light output ratio (ULOR 0%) when mounted at 0° tilt
• Energy savings of up to 90 % compared to halogen lamp floodlights
• 3 years guarantee

Areas of application

• Replacement for floodlights with halogen lamps
• Outdoor use (IP65)
• Public areas
• Building facades
• Gardens, balconies and other outdoor areas
• Construction areas

Product features

• Flexible motion and daylight sensor
• Sensor with 350° pan and 180° tilt
• Reflector-based, symmetric light distribution with 100° x 100° beam angle
• Mounting bracket with 30° angle and wide rotation area
• Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires

Safety advice

• The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire must be disposed of.
• Terminal block not included. Installation must be made by a qualified person.
• Caution, risk of electric shock.
• Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
