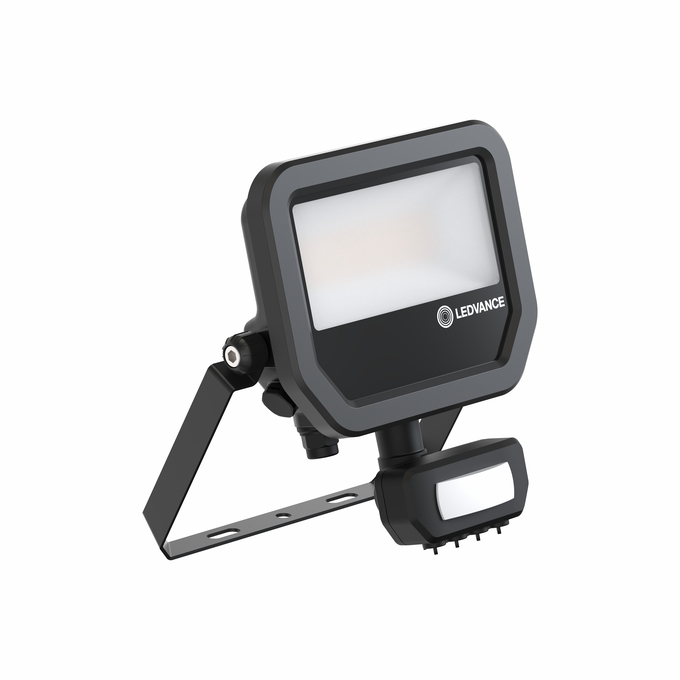

LEDVANCE 4099854309489, Floodlight LED 17W 3000K 2400lm Symmetrical Beam 100°, Black

General Description & Application

Product benefits

• Demand optimized illumination due to flexible and programmable sensor
• Easy adjustment of sensor range, daylight detection, hold time and dimming function
• Always-on override, activated via special mains switching pattern
• Breather membrane to optimize air exchange, without compromising IP protection
• Highly versatile due to selectable lumen steps (Multi Lumen) on the housing
• Robust cable gland with integrated waterstop function
• Safe and very uniform illumination, due to frosted and tempered glass diffuser
• Bright, robust and durable
• Energy savings of up to 90 % compared to halogen lamp floodlights
• No upper light output ratio (ULOR 0%) when mounted at 0° tilt

Areas of application

• Replacement for floodlights with halogen lamps
• Outdoor use (IP65)
• D-sign according to EN 60598-2-24 for fire-risk commercial unit, e.g. by accumulation of dust
• Public areas
• Building facades
• Construction areas
• Parking
• Gardens and balconies

Product features

• Flexible motion and daylight sensor
• Sensor with 350° pan and 200° tilt
• High luminous efficacy: up to 145 lm/W
• Type of protection: IP65
• Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires
• Reflector-based, symmetric light distribution with 100° x 100° beam angle
• Mounting bracket with 30° angle and wide rotation area
• Integrated voltage driver, suitable for 220 - 240 V AC

Safety advice

• Max. wind load surface 0.017 m²
