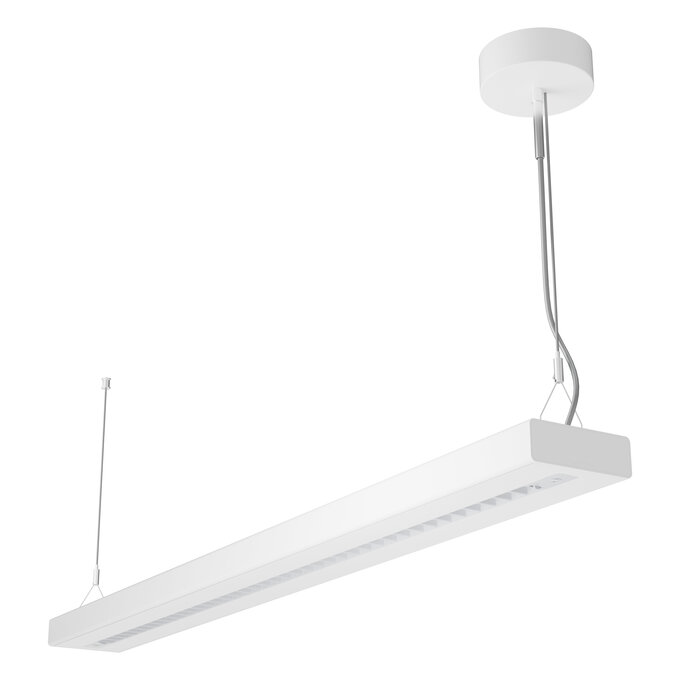

LEDVANCE 4099854249792, Linear LED Luminaire Direct / Indirect 1500mm 69W 3000K DALI Dimmable with Sensor, White

LEDVANCE 4099854249792, Linear LED Luminaire Direct / Indirect 1500mm 69W 3000K DALI Dimmable with Sensor, White

Sensors
LEDVANCE

LEDVANCE is one of the world’s leading companies in the lighting industry and is expanding into the renewable energy solution business. To reflect our broad range of products and solutions, we offer a variety of brands under our LEDVANCE corporate umbrella. Under the LEDVANCE product brand, we sell an extensive line of products for residential, commercial and industrial applications.

Read more
https://www.polytrade.global/web/image/product.template/31173/image_1920?unique=4948921
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand LEDVANCE
Manufacturer Code 4099854249792
General Specifications
Destination Indoor
Mounting Surface Ceiling
Sensor Type Motion, Light
IP Rating IP20
Length 1475 mm
Height 43.0 mm
Width 125.0 mm
Diameter - mm
Color White
Detection Range 1.7-4 m
Lux Threshold - lx

General Description & Application

Product benefits
  • Easy upgradeability of light source and driver (EVERLOOP design)
  • Homogenous light distribution and reduced glare (UGR ≤ 19) thanks to IndiviLED® optics
  • Pendant luminaires with direct light emission (70%) and indirect light emission (30%)
  • High performance with CRI90 and up to 131 lm/W
  • High color consistency with SDCM 3
  • Easy installation
  • Low flicker light thanks to special electronic control gear
  • Suitable for battery emergency installations acc. to EN 60598-2-22
  • Multiple mounting options thanks to different accessories
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Offices, education, public buildings
  • Single and continuous line configuration
  • Direct and indirect lighting
Product features
  • Minimalistic LEDVANCE SCALE design in extruded aluminum housing, available in white and black color
  • Includes EVERLOOP: Convenient replacement of light source and LED driver
  • PIR-Sensor with leader-follower function
  • Combined daylight and motion detection
  • Individual adjustment of the parameters with configuration software or remote control
  • Linkable into seamless light line with accessories (surface or pendant mounting)
  • Pendant mounting with suspension kit (to be ordered separetely)
  • Glow Wire Test according to IEC 60695-2-12: 850 °C
  • 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
  • Lifetime (L80/B10): 70,000 h (at 25 °C)
  • Multi Lumen function: programmable DALI-2 driver
Equipment / Accessories
  • Suspension kit available for pendant luminaire version (to be ordered separately)
  • Inline, corner and infill connectors available as separate accessory
  • Through-wiring cable kit available
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
