ARELUX FW24267CW20S, LED Strip
ARELUX
ARELUX offers professional LED control solutions including controllers, dimmers, and smart interfaces compatible with WiFi, RF, DMX, and DALI systems, suitable for residential and commercial lighting applications.
Read more|

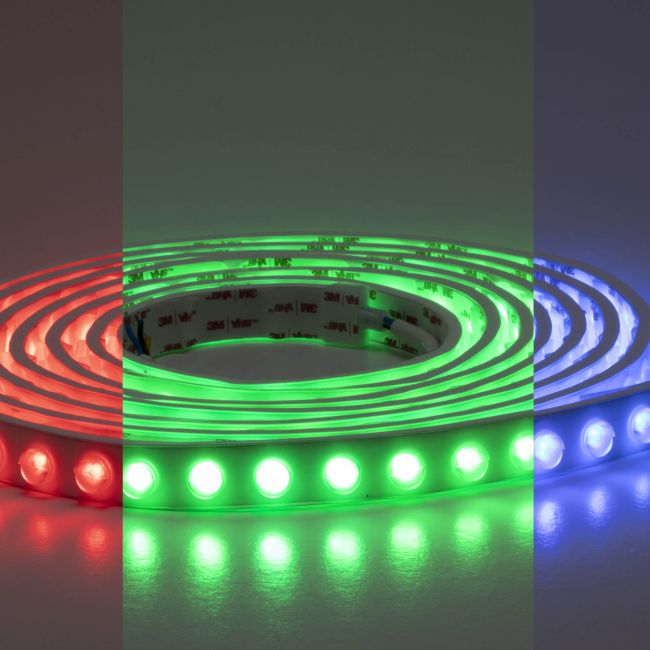

General Description & Application Flexible LED strip, (SMD 3030 RGB 3:1, 42 LED/m), polycarbonate lenses with 25° angular dispersion for each LED and waterproof polyurethane coating (IP67). Minimum radius of curvature is 100 mm. Total length of roll is 5m, sectionable every 166,7 mm (grups of 7 LEDs) or multiple of this size. The maximum length allowed for a single power supply point is 10m, with power supply from both ends. Equipped with power supply cables, 300 mm length, go from lateral direction at both ends, with two 4P (IP67) connectors one male, one female. Set of 4P (IP67) coresponding connectors female/male and accessories for sealing after cutting and fixing are available All accessories have to be ordered separately. Control system R,G,B,+. Product type: Flexible LEDs strip Important: The LED strips from the XFLEX family are delivered in a minimum size of 5m or multiples thereof. The luminous intensity of these LED strips can be adjusted by the following methods: - using TRIAC dimmable drivers, constant voltage, ATD24.50 and ATD24.100, ATD24.100IP67 and ATD24.200IP67, together with the PR350 dimmer. This is valid just for the monochromatic versions. - by means of the wireless constant voltage dimmer basicDIM Wireless PWM CV 4CH, TRIDONIC, with four output channels intercalated between the constant voltage driver and the load and controlled by the TRIDONIC/CASAMBI system protocol. The light intensity is adjusted by the PWM method (Pulse Width Modulation). This method is valid also for RGB versions. Range of applications: Interior or exterior decorative lighting, advertising lighting. Marking the architectural elements of building façades. |
