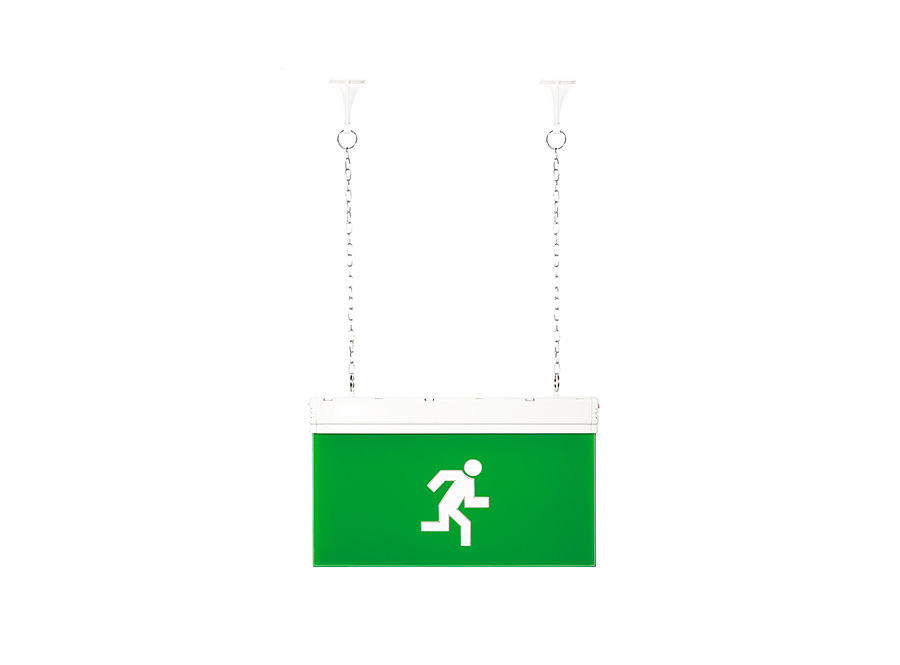

ELBA 21411058, CISA-04 LED 3h

General Description & Application

CISA-04 is an emergency luminaire designed to provide evacuation lighting in case of power failure in buildings. It ensures safe guidance along escape routes and improves safety in emergency situations.

Equipped with integrated LED technology, the product offers significant energy savings and reduced maintenance costs due to the long lifespan of the light source. It is suitable for continuous (maintained) emergency lighting applications in various environments.

Typical applications include industrial buildings, public institutions, and commercial spaces where reliable emergency lighting is required.

Construction & Features

• Housing, end caps, and mounting brackets made of polycarbonate (PC)
• Display panel made of PMMA
• Integrated electronic system for battery charging and automatic switching to emergency mode
• Sealed Ni-Cd batteries: 3.6V / 600mAh (1.5h) or 3.6V / 1000mAh (3h)
• Emergency autonomy: 1.5 hours or 3 hours depending on battery type
• Battery charging time: 24 hours
• Status LED indicator for battery charging
• Test button for battery status verification
• Viewing distance: up to 30 meters
• Color: white
• Optional adhesive signage (white on green background)

Installation

• Surface-mounted installation on walls (vertical) or ceilings (horizontal)
• Suitable for mounting on normally flammable surfaces

Light Source

• Integrated LED module
• Color temperature: 6500K (cool white)
• CRI ≥70
• Lifespan: L70B50 – 50,000 hours at Ta = 25°C

Advantages

• Compact and economical emergency luminaire
• LED-based operation for high energy efficiency
• Easy installation and maintenance
• Low maintenance costs
• No need for light source replacement during operation

Applications

• Emergency exits
• Evacuation routes
• Industrial buildings
• Public institutions
• Commercial spaces

Compliance

Manufactured in accordance with applicable standards (see manufacturer certification).
