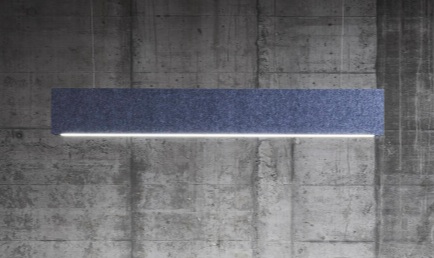

ECHOJAZZ ELI0040K142000A, EchoLED 24mm BAFFLE M 4000

ECHOJAZZ ELI0040K142000A, EchoLED 24mm BAFFLE M 4000

Acoustic Lighting
ECHOJAZZ

ECHOJAZZ offers modern acoustic lighting solutions that combine LED illumination with sound-absorbing materials made from recycled PET. The products are designed to reduce noise and improve comfort in spaces such as offices, meeting rooms, and commercial areas. The design is contemporary and adaptable for various architectural projects.

Read more
https://www.polytrade.global/web/image/product.template/34835/image_1920?unique=589d77a
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand ECHOJAZZ
Manufacturer Code ELI0040K142000A
General Specifications
Destination Indoor / Office / Commercial
Nominal Efficacy 142 lm/W
Luminous Flux 4700 lm
Color Temperature 4000 K
Body Color Blue
Mounting Surface Hanging mounting
IP Rating IP20
Nominal Voltage 230 V +/- 10% AC/DC
Rated Max. Power 33 W
Length 1420 mm
Height 69.0 mm
Width 90.0 mm
Diameter - mm

General Description & Application

EchoLED® 24mm BAFFLE is a high-performance acoustic lighting solution with a textile surface made of 100% PET fibres. It is specifically designed for seamless integration into baffle ceiling systems, combining efficient lighting with sound absorption.

Made from high-tech felt with a homogeneous texture and color, the luminaire is easy to install, serviceable from below, and ready to plug in. It is equipped with DALI dimming for intelligent lighting control.

  • Designed for integration into baffle ceilings
  • High-performance acoustic and lighting solution
  • DALI dimming for advanced control
Technical Data
  • Voltage: 230V ±10% AC/DC
  • Power: 37W / 48W
  • Luminous flux: 4200 / 4700 / 5400 / 6100 lm
  • Light color: 3000K / 4000K
  • Colour consistency: < 3 SDCM
  • UGR: < 19
  • Lifetime: > 50,000 h (L80 B10)
  • Protection: IP20, Class I
  • Diffuser: Microprismatic cover
  • Dimming: DALI
Acoustic Performance
  • aw: 0.50 – 1.00
  • NRC: 0.70 – 0.95
Installation
  • Suitable for indoor and covered outdoor areas
  • Easy to trim with a knife
  • Height-adjustable installation
  • Serviceable from below
Material Properties
  • 100% PET acoustic material
  • Highly durable and shock-resistant
  • Flame retardant (B-s1,d0)
  • Low VOC emissions
  • Formaldehyde emissions < 0.1 mg/m²/h
  • Stable up to 50°C and 95% RH
Environmental
  • Over 50% recycled PET content
  • 100% recyclable
  • Eco-1 rating (eco-bau & Minergie-Eco)
  • Cradle to Cradle Bronze certified
Cleaning & Care
  • Dry or damp cleaning
  • Compatible with chlorine or hydrogen peroxide
