  2. ELBA 32321151, AV-02C LED 64.5W 5000K V2 II 2G Ex db e IIC T6 Gb

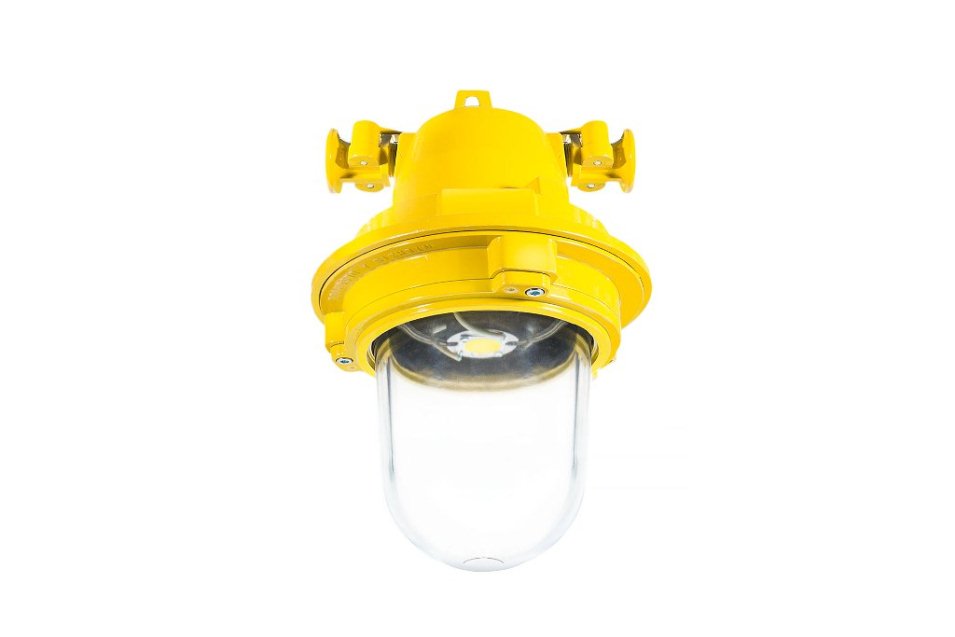

ELBA 32321151, AV-02C LED 64.5W 5000K V2 II 2G Ex db e IIC T6 Gb

AntiEx Lighting
ELBA

ELBA is one of the leading manufacturers of lighting equipment in Romania, with over 100 years of experience in the field. The company offers a wide range of lighting solutions for industrial, commercial, street, and specialized applications, including for hazardous (ATEX) environments.

Read more
https://www.polytrade.global/web/image/product.template/34362/image_1920?unique=8123e96
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand ELBA
Manufacturer Code 32321151
General Specifications
Destination Outdoor
Type Electronic ballast, Eco-friendly products
Mounting Method Suspended
Lamp Type LED module
Light Power from 20 to 100
Number of Lamps 1
IP Rating IP54
Nominal Voltage 49.7 Vdc
Rated Max. Power 57.7 W
Rated Current 1160 mA
Protection Class I
Weight 4.0 Kg
Ambient Temperature -20 >< +40 °C
Length 210 mm
Height 317.0 mm
Width 202.0 mm

General Description & Application

The AV-02C luminaire is intended for lighting in explosion-hazardous areas of group II, zone 1 and 2.

  • The AV-02C LED product consists of a luminaire with a light source and a CAEx-02 LED control box (to be ordered separately) – which supplies the light source.
  • Housing and globe frame die-cast from painted Al alloys.
  • Lamp protective globe made of heat-resistant glass.
  • Cable entries with rubber gasket sealing for diameters of Φ11 – Φ14 mm.
Usage
  • Lighting in explosion-hazardous areas (group II, zone 1 and 2).
  • Suspended or stationary mounting.
  • Individual connection via CAEx-02 LED box.
Advantages
  • Robust die-cast aluminum construction.
  • Certified explosion-proof protection.
  • Extended LED source life.
  • Glass heat-resistant for high protection.
Technical Data
  • Number of terminals: 3 + 2 PE and 4 in the CAEx-02 LED box (F, N, L, PE).
  • Maximum conductor cross-section: 2.5 mm².
  • Protection: II 2G Ex db eb IIC T6 Gb.
  • Explosion-proof encapsulation (d) and increased safety (e).
  • Standards: SR EN 60598-1, SR EN IEC 60079-0:2018, SR EN 60079-1:2015, SR EN 60079-7:2016+A1:2018.
  • AV-02C LED Certification: INSEMEX-OEC.ATEX.22.0302X.
  • CAEx-02 LED Certification: INSEMEX-OEC.ATEX.22.0301X.
Light Source
  • COB LED SAMSUNG, CRI ≥70.
  • Color temperature: 5000K / 6500K.
  • Lifetime (TM-21, 74°C):
  • L70B50: 182,000 h
  • L70B10: 103,000 h
  • L80B50: 113,000 h
  • L80B10: 65,000 h
  • L90B50: 53,000 h
  • L90B10: 31,000 h
Color

Yellow
