ELBA 32321155, CAEx-02 LED 44.5W V2

AntiEx Lighting
ELBA

ELBA is one of the leading manufacturers of lighting equipment in Romania, with over 100 years of experience in the field. The company offers a wide range of lighting solutions for industrial, commercial, street, and specialized applications, including for hazardous (ATEX) environments.

Read more
https://www.polytrade.global/web/image/product.template/34367/image_1920?unique=8123e96
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand ELBA
Manufacturer Code 32321155
General Specifications
Destination Outdoor
Type Electronic driver, Eco-friendly products
Mounting Method Suspended
Lamp Type LED module
Light Power from 10 to 100
Number of Lamps 1, LED module
IP Rating IP54
Nominal Voltage 230 Vdc
Rated Max. Power 44.1 W
Rated Current 790 mA
Protection Class I
Weight 5.0 Kg
Ambient Temperature -20 >< +40 °C
Length 233 mm
Height 195.0 mm
Width 274.0 mm

General Description & Application

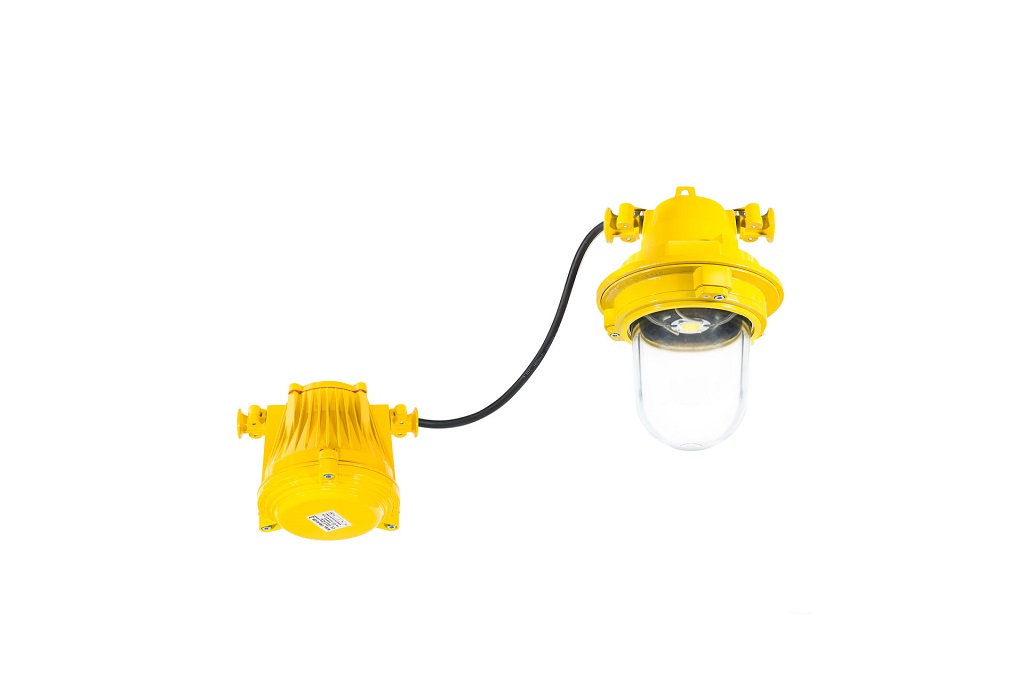

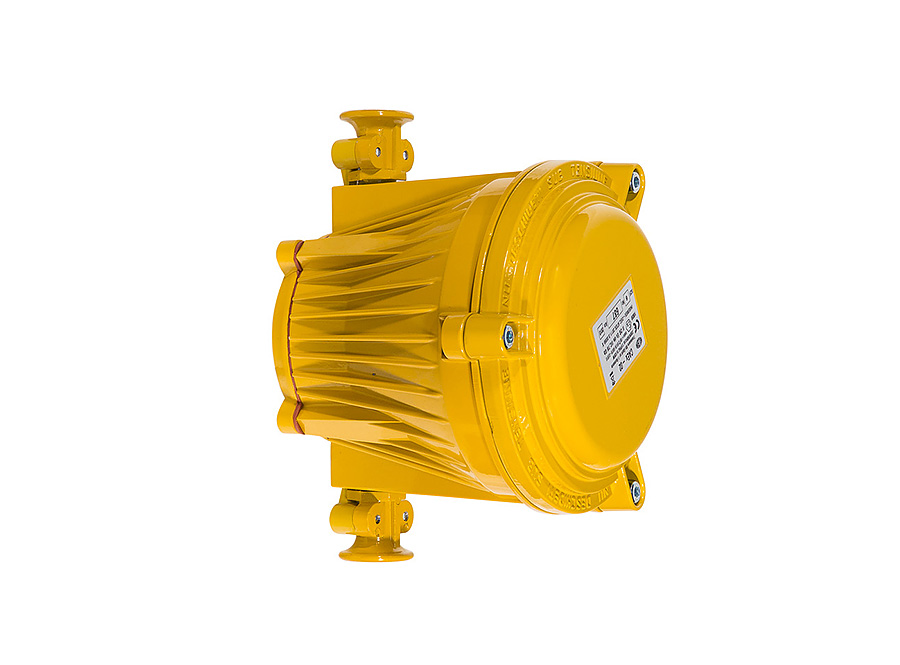

CAEX-02 LED is the power supply for the AV-02C LED II 2G Ex db eb IIC T6 Gb luminaire, intended for lighting in explosion-hazardous areas of group II, zone 1 and 2.

  • The AV-02C LED luminaire is powered by the CAEx-02 LED control box.
  • Painted die-cast aluminum alloy housing.
  • Protective globe made of heat-resistant glass.
  • Cable entries with sealing for diameters of Φ11 – Φ14 mm.
Usage
  • Power supply for AV-02C LED luminaires.
  • Use in explosion-hazardous areas (group II, zone 1 and 2).
Advantages
  • Robust aluminum construction.
  • Certified explosion-proof protection.
  • High operational safety.
  • Compatibility with AV-02C LED system.
Technical Data
  • Number of terminals: 3 + 2 PE and 4 in compartment (F, N, L, PE).
  • Maximum conductor cross-section: 2.5 mm².
  • Protection: II 2G Ex db eb IIC T6 Gb.
  • Explosion-proof encapsulation (d) and increased safety (e).
  • Standards: SR EN 60598-1, SR EN IEC 60079-0:2018, SR EN 60079-1:2015, SR EN 60079-7:2016+A1:2018.
  • AV-02C LED certification: INSEMEX-OEC.ATEX.21.0302X.
  • CAEX-02 LED certification: INSEMEX-OEC.ATEX.21.0301X.
Power Supply
  • LED driver according to standards: IEC 61347-1 / IEC 61347-2-13 / IEC 62384.
  • EMC Compliant: CISPR 15, IEC 61000-3-2, IEC 61000-3-3, IEC 61547.
Color

Yellow
