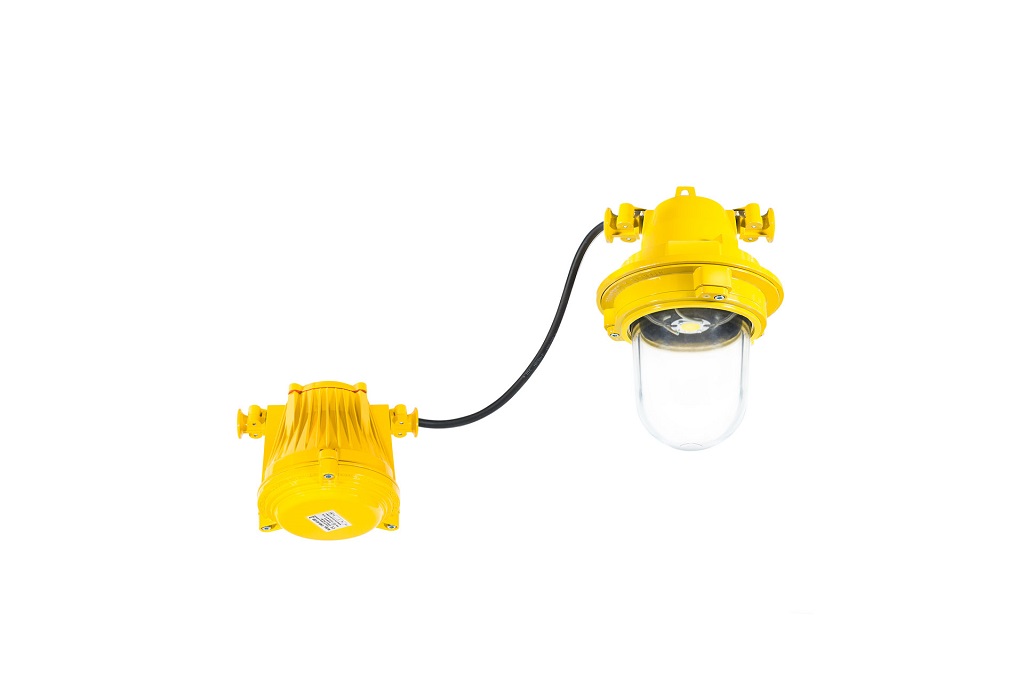

ELBA 32321159, CAEx-02 LED 64.5W V2

AntiEx Lighting
ELBA

ELBA is one of the leading manufacturers of lighting equipment in Romania, with over 100 years of experience in the field. The company offers a wide range of lighting solutions for industrial, commercial, street, and specialized applications, including for hazardous (ATEX) environments.

Read more
https://www.polytrade.global/web/image/product.template/34370/image_1920?unique=8123e96
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand ELBA
Manufacturer Code 32321159
General Specifications
Destination Outdoor
Type Electronic driver, Eco-friendly products
Mounting Method Suspended
Lamp Type LED module
Light Power from 10 to 100
Number of Lamps 1, LED module
IP Rating IP54
Nominal Voltage 230 Vdc
Rated Max. Power 62.8 W
Rated Current 1040 mA
Protection Class I
Weight 5.0 Kg
Ambient Temperature -20 >< +40 °C
Length 233 mm
Height 195.0 mm
Width 274.0 mm

General Description & Application

The AV-02C luminaire is intended for lighting in explosion-hazardous areas of group II, zone 1 and 2.

  • The AV-02C LED 230V product consists only of the body with the light source.
  • Housing and globe frame die-cast from painted Al alloys.
  • Protective globe made of heat-resistant glass.
  • Cable entries with sealing for diameters of Φ11 – Φ14 mm.
Usage
  • Lighting in areas with explosion hazard (group II, zone 1 and 2).
  • Suspended or stationary mounting.
  • Individual or series connection directly to the mains (230V).
Advantages
  • Robust die-cast aluminium construction.
  • Certified explosion-proof protection.
  • Heat-resistant glass for high protection.
  • Compatible with direct mains connection.
Technical Data
  • Number of terminals: 2 + 2 PE (direct supply).
  • Maximum conductor cross-section: 2.5 mm².
  • Protection: II 2G Ex db eb IIC T6 Gb.
  • Explosion-proof encapsulation (d) and increased safety (e).
  • Standards: SR EN 60598-1, SR EN IEC 60079-0:2018, SR EN 60079-1:2015, SR EN 60079-7:2016+A1:2018.
  • Certificate: INSEMEX-OEC.ATEX.22.302X +A1/2023.
Light Source
  • COB LED SAMSUNG, CRI ≥70.
  • Color temperature: 5000K / 6500K.
  • Lifetime (TM-21):
  • L70B50: 182,000 h
  • L70B10: 103,000 h
  • L80B50: 113,000 h
  • L80B10: 65,000 h
  • L90B50: 53,000 h
  • L90B10: 31,000 h

DOB (Driver on Board) Vossloh-Schwabe, CRI ≥80, 4000K, extended lifetime.

Equivalent system with HME 125W mercury lamps.

Color

Yellow
