ELBA 23418856, CFN 02 LED EX 6180LM 38.3W 840 1.2M

AntiEx Lighting
ELBA

ELBA is one of the leading manufacturers of lighting equipment in Romania, with over 100 years of experience in the field. The company offers a wide range of lighting solutions for industrial, commercial, street, and specialized applications, including for hazardous (ATEX) environments.

Read more
https://www.polytrade.global/web/image/product.template/34373/image_1920?unique=8123e96
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand ELBA
Manufacturer Code 23418856
General Specifications
Destination Outdoor
Type LED driver
Mounting Method Surface mounted, Wall mounted, Suspended
Lamp Type LED module
Light Power from 20 to 100
Number of Lamps LED module
IP Rating IP65
Nominal Voltage 230 Vdc
Rated Max. Power 38.3 W
Rated Current -
Protection Class I
Weight 3.4 Kg
Ambient Temperature -20 >< +40 °C
Length 1272 mm
Height 100.0 mm
Width 145.0 mm

General Description & Application

The CFN-02 LED luminaire is intended for lighting in humid or dusty environments, with an atmosphere of conductive dust (zone 22), at ambient temperatures between -25°C and +45°C (respectively +5°C to +45°C with emergency kit).

  • UV-stable polycarbonate frame, resistant to impact, moisture and dust.
  • Transparent polycarbonate diffuser with prismatic structure for uniform light distribution.
  • Steel sheet reflector.

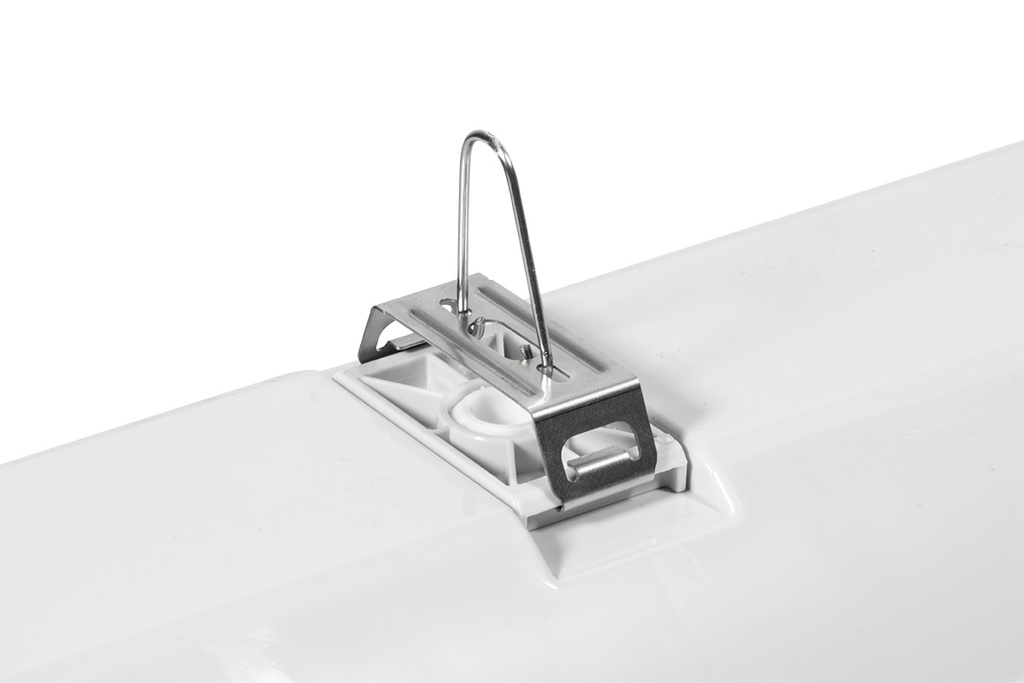

  • Robust fastening system with stainless steel and polyamide clips and fasteners.
  • PG13 ATEX cable gland, cable diameter Φ7–Φ13 mm.
Usage
  • Lighting in environments with conductive dust (area 22).
  • Use in wet and industrial areas.
  • Operating temperature: -25°C … +45°C.
Advantages
  • High resistance to impact and harsh conditions.
  • Protection against dust and moisture.
  • Efficient light distribution.
  • Accessories included for quick installation.
Technical Data
  • Maximum conductor cross-section: 2.5 mm².
  • 3-pole connector + grounding.
  • Protection: II 3D Ex tc IIIC T70°C Dc.
  • Dust ignition protection through the housing.
  • Standards: SR EN 60079-0, SR EN 60079-31, SR EN 60598-1.
  • Electronic driver included.
Light Source
  • LED modules, 4000K, CRI 80.
  • Lifespan: L80B10 > 80,000 hours (Ta = 25°C).
Color

Grey
