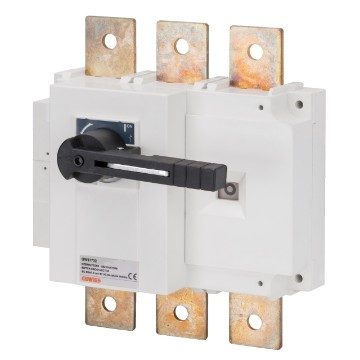

  2. GEWISS GW97731, Switch-disconnector, MSS 630, 3P 400A 400V
GEWISS GW97731, Switch-disconnector, MSS 630, 3P 400A 400V

GEWISS GW97731, Switch-disconnector, MSS 630, 3P 400A 400V

Disconnectors
GEWISS

Founded in 1970 on the revolutionary innovation of using technopolymer in electrical engineering, today GEWISS is the most important company in the electrotechnical sector with Italian capital.

Read more
https://www.polytrade.global/web/image/product.template/11820/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand GEWISS
Manufacturer Code GW97731
Disconnector Type Rotary switch disconnector
Product Family 97 MSS Range-Rotary switch disconnectors
General Specifications
Number of poles 3P
Rated current 400.0 A
Standards EN 60947-3
Width 230.0 mm
Height 170.0 mm
Depth 110.0 mm
Weight 3.6 Kg
Execution N/A
Use category N/A
DIN rail mounting N/A
Rated frequency N/A Hz
Rated operating voltage (Ue) 400 Vac - 220 Vdc
Rated impulse withstand voltage (Uimp) 12.0 kV
Terminals supplied N/A
Overvoltage category N/A
Assembly position N/A
Insulation voltage (Ui) 1000.0 V
Upline/downline power supply N/A
Electrical life (415Vac) N/A
Mechanical life 5.000 cycles
Total power loss N/A
Operating Temperature N/A °C
Stocking temperature N/A °C

General Description & Application


MSX Range Moulded case circuit breakers for power distribution - The moulded case circuit breakers MSX range is made up of circuit breakers with thermo-magnetic release, circuit breakers with thermo-magnetic release and Overcurrent Protection, circuit breakers with electronic release and switch disconnectors.
