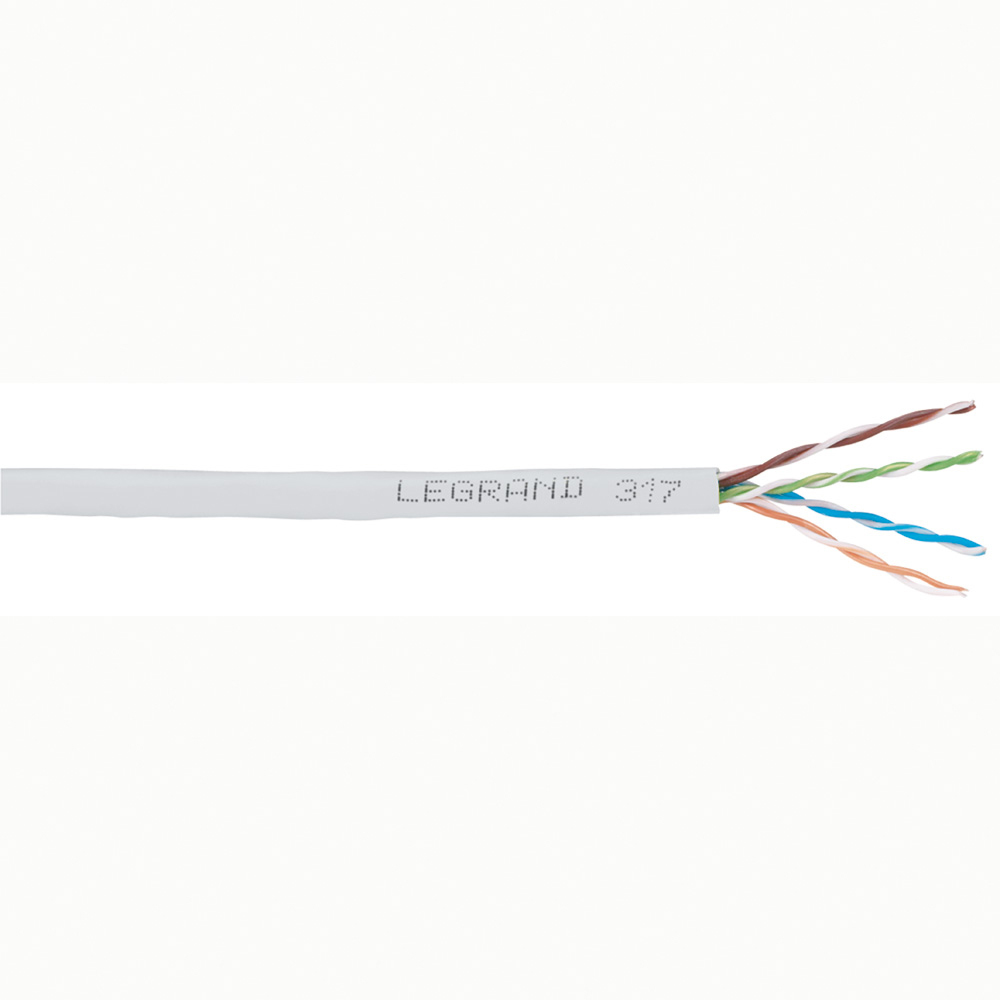

Legrand 032751, LCS³ Category 5e U/UTP 4-Pair Twisted Cable for Local Area Networks, 100 Ohms, PVC, 305 m

Category: Ethernet LAN

LEGRAND

Legrand is a global leader in electrical and digital building infrastructures, providing innovative, high-quality products for residential, commercial, and industrial environments. Present in over 90 countries, the company offers switches, sockets, automation systems, network solutions, and data center equipment, combining technical performance with sustainability and energy efficiency.

This combination does not exist.

The above design is only a sample of the options available, for reference purposes only. Our policy of continuous improvement may result in a change of specifications without notice. If any discrepencies might be between the data sheet values and standards, we reserve the rights to make technical changes. Our company will not be held responsible, as all or any of pictures, drawings, weights and dimensions details or other elements in this document are only indicative and must not be considered contractual. Contact our sales team for other specifications or custom made products.

Preview TDS

Download TDS

Technical Characteristics
Number of Conductors	8
Cable Overall Diameter	0.5 x 4.9 mm
Cable Weight	30 kg/km
Conductor Material	Copper
Conductor Cross-Section	0.2 mm²
Conductor Class	Eca
Conductor Type	Other
Insulation Material	PE
Outersheath Material	PE
Outersheath Color	Grey
Max. Permissible Installation Temperature	0 >< 50 °C
Operating Temperature	-20 >< 60 °C
Rate Tensile Strength (RTS)	N/A N
Crush	N/A N/10cm
Conductor Resistance	100 Ω/km
Resistance unbalance	N/A %
Insulation Resistance	N/A MΩ/km
Nominal Velocity of Propagation	66 %
Signal Propagation Delay	N/A ns/100m
Test Voltage	N/A V
Minimum Bending Radius (Installing)	20 mm
Minimum Bending Radius (Operating)	N/A
Packing	Wooden Drum
Delivery Lengths	305 m
Delivery Length Tolerance	N/A %
