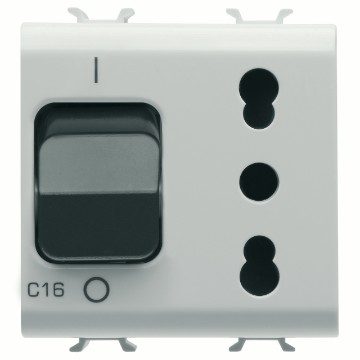

GEWISS GW10311, Interlocked Switched Socket Outlet, 2P+E 16A P17/P11, with Miniature Circuit Breaker 1P+N 16A, 230V Ac, 2 Modules, Glossy White, Chorusmart.

GEWISS GW10311, Interlocked Switched Socket Outlet, 2P+E 16A P17/P11, with Miniature Circuit Breaker 1P+N 16A, 230V Ac, 2 Modules, Glossy White, Chorusmart.

Sockets
GEWISS

Founded in 1970 on the revolutionary innovation of using technopolymer in electrical engineering, today GEWISS is the most important company in the electrotechnical sector with Italian capital.

Read more
https://www.polytrade.global/web/image/product.template/13941/image_1920?unique=9945577
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand GEWISS
Manufacturer Code GW10311
Product Family CHORUSMART - Domestic range-Glossy white modular devices
General Specifications
Type Dual amperage interlocked socket-outlet
Number of poles 2P+E - 16A
Color Glossy white
Material Technopolymer
Modules No. 2
Voltage 230V ac
Characteristics N/A
Wiring terminals With screw
Resistance at test voltage 2000 V at 50 Hz for 1 minute
Insulation Resistance > 5 MΩ
Standards IEC 60884-1; EN 60898-1

General Description & Application


CHORUS - Civil range White modular devices - Chorus modular devices, available in three colors and in different sizes, make it possible to create an infinite number of frame-component combinations. The result is a complete range, able to satisfy all design, functional and installation requirements. Glossy white, bright and versatile, does not attract dust. Unlimited functions in small spaces: the Chorus range consists of button-type keys with ½, 1, 2 and 3 modules, to optimize the space according to needs. Devices with 2 and 3 modules are easy to use and allow the quick localization of the button, while the ½ module (only available in the Chorus range) allows optimal use of small spaces. Frontal coupling: the frontal coupling allows simple and quick assembly and disassembly of components, as well as carrying out these operations without disassembling the support.
