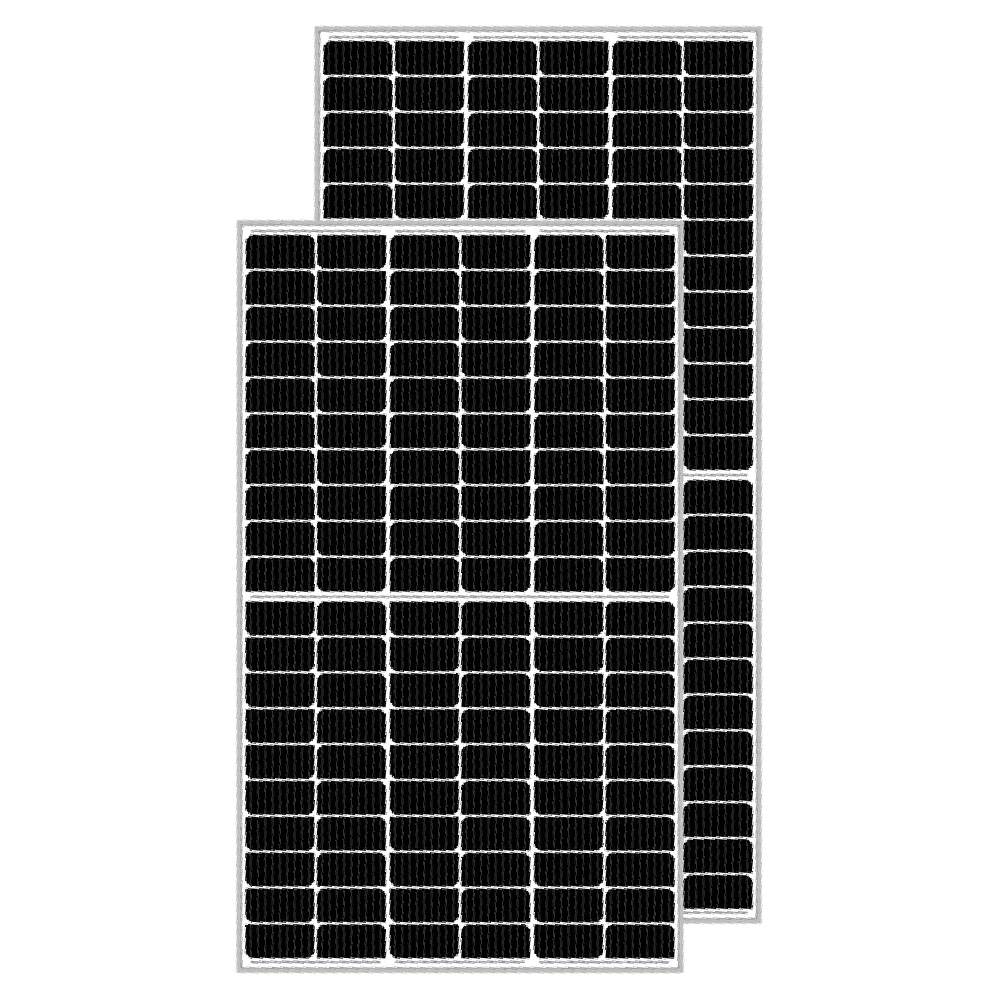

SOLARDAY, TEN HC108 415W, Standard Monofacial Monocrystalline Silicon MONO half-cut cells 415Wp Solar Panel

PV Panels
SOLARDAY

Solarday is a historical Italian module manufacturer, specialized in high-end products and customized PV Solution, located in Lombardy. Solarday has been traditionally focused on the Italian domestic market since the first “Conto Energia”. In 2018, the international expansion towards European markets began.

Read more
https://www.polytrade.global/web/image/product.template/3706/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand SOLARDAY
Product Code TEN HC108 415W

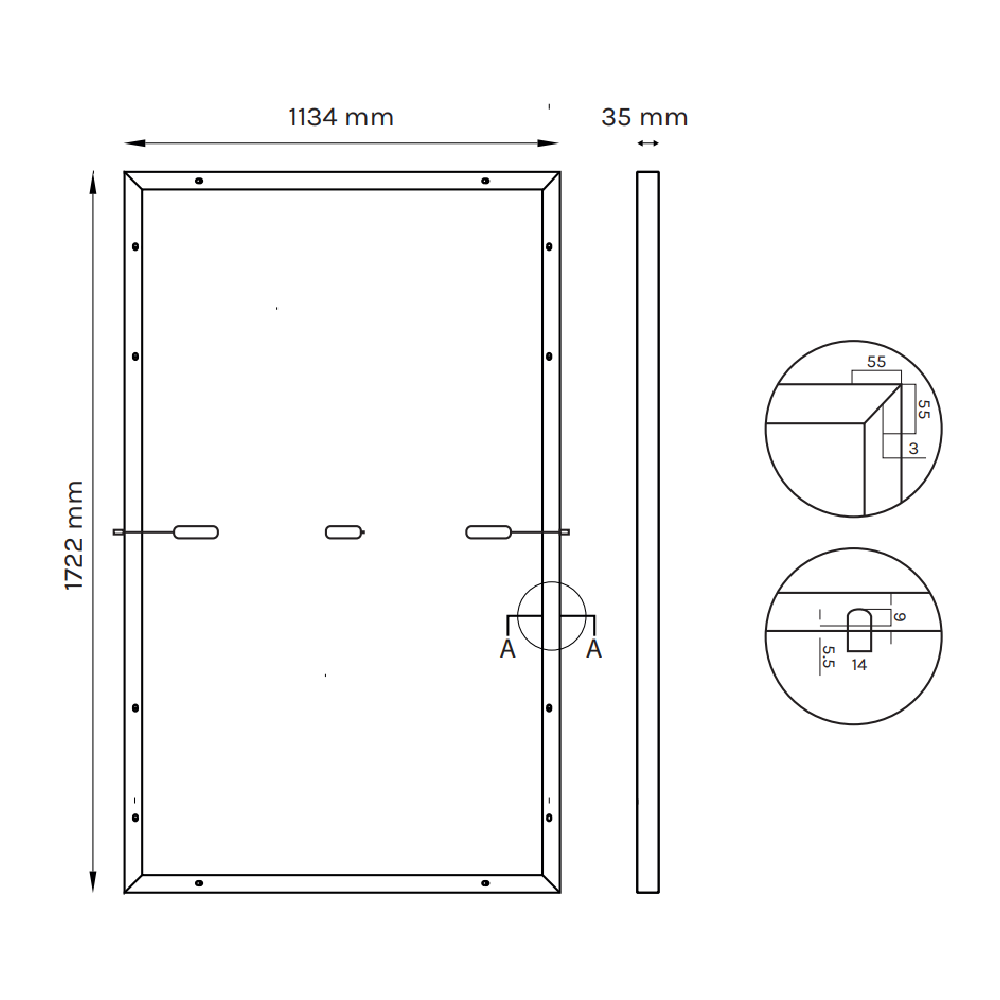

Design & Mechanical Specification
Panel Type Monofacial
Panel Surface Standard
Panel Weight 21.0 Kg
Panel Length 1722.0 mm
Panel Width 1134.0 mm
Panel Thickness 35.0 mm
Cell Material Monocrystalline Silicon
Cell Type MONO half-cut cells
No. of Cells 108.0
Cell Dimension 182.0
Glass Type Single
Encapsulation Type EVA
Junction Box IP Rate 68.0
Frame Type Black-Silver Anodized Aluminium
Connector Type MC4
Wind Load 2400.0 Pa
Mechanical Load 5400.0 Pa
Operating Temperature -40 >< +85 °C
Electrical Specifications (*STC)
Nominal Max Power - Pmax 415.0 Wp
Maximum Operating Voltage - Vmpp 32.03 V
Maximum Operation Current - Impp 12.96 A
Open Circuit Voltage - Voc 38.21 V
Short Circuit Current - Isc 13.84 A
Module Efficiency - η 21.25 %
Power Tolerance (+)5% Wp
Maximum System Voltage 1500.0 V
Maximum Series Fuse Rating 25.0 A
Warranty
Products Warranty 20.0 yrs
Performance Warranty 25.0 yrs

General Description & Application

Solar panels are engineered for maximum efficiency, capturing sunlight and converting it into electricity with remarkable precision. Solar panels incorporate the latest advancements, ensuring you benefit from the most efficient and reliable solar solutions available on the market.
From extreme weather conditions to daily wear and tear, solar panels are designed to provide long-lasting, reliable performance, ensuring a sound investment in your energy future.
With solar panels, you're actively contributing to the reduction of greenhouse gas emissions and promoting a cleaner, healthier planet for generations to come.

Standards

Solar panels are engineered and testing according to below standards, as the case may be:
Low Voltage EU Directive 2014/35/EU
IEC 60068-2-68:1994
IEC 61215-1:2016
IEC 61215-1-1:2016
IEC 61215-2:2016
IEC 61730-1:2016
IEC 61730-2:2016
EN 61215-1:2016
EN 61215-1-1:2016
EN 61215-2:2017
EN 61730-1:2018
EN 61730-2:2018
IEC 61701:2011
EN 61701:2012
IEC 62716:2013
EN 62716:2013
IEC 62804-1:2015 / 2 PFG 2387/01.18
IEC 60068-2-68:1994
