  2. TRINA SOLAR, TSM-DEG14C(II), Standard Bifacial Monocrystalline 370Wp Solar Panel

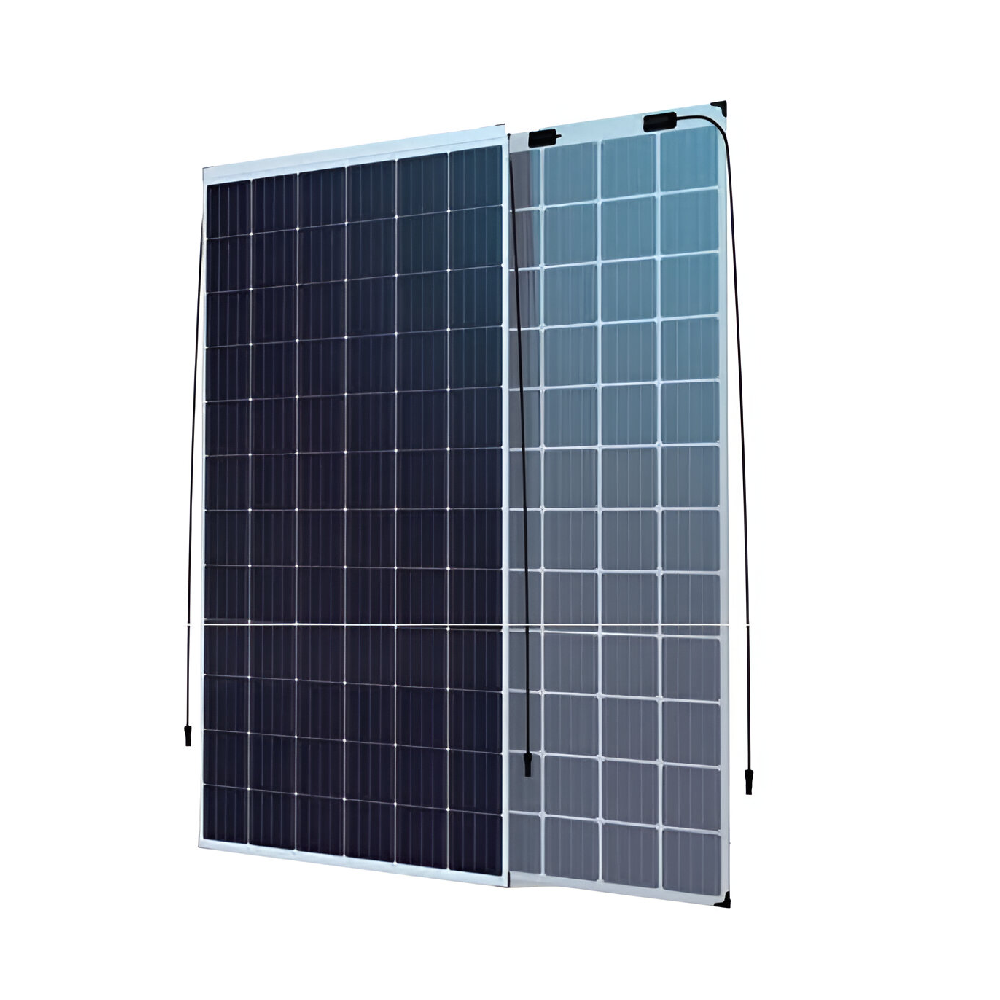

TRINA SOLAR, TSM-DEG14C(II), Standard Bifacial Monocrystalline 370Wp Solar Panel

PV Panels
TRINA SOLAR

Trina Solar; stock code: 688599) is mainly engaged in the research and development, production and sales of PV modules; power stations and system products; PV power generation, operation and maintenance services; development and sales of intelligent microgrids and multi-energy systems, as well as the operation of energy cloud platforms, etc., committing to lead the way in smart solar energy solutions for a net-zero future.

Read more
https://www.polytrade.global/web/image/product.template/5398/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand TRINA SOLAR
Product Code TSM-DEG14C(II)

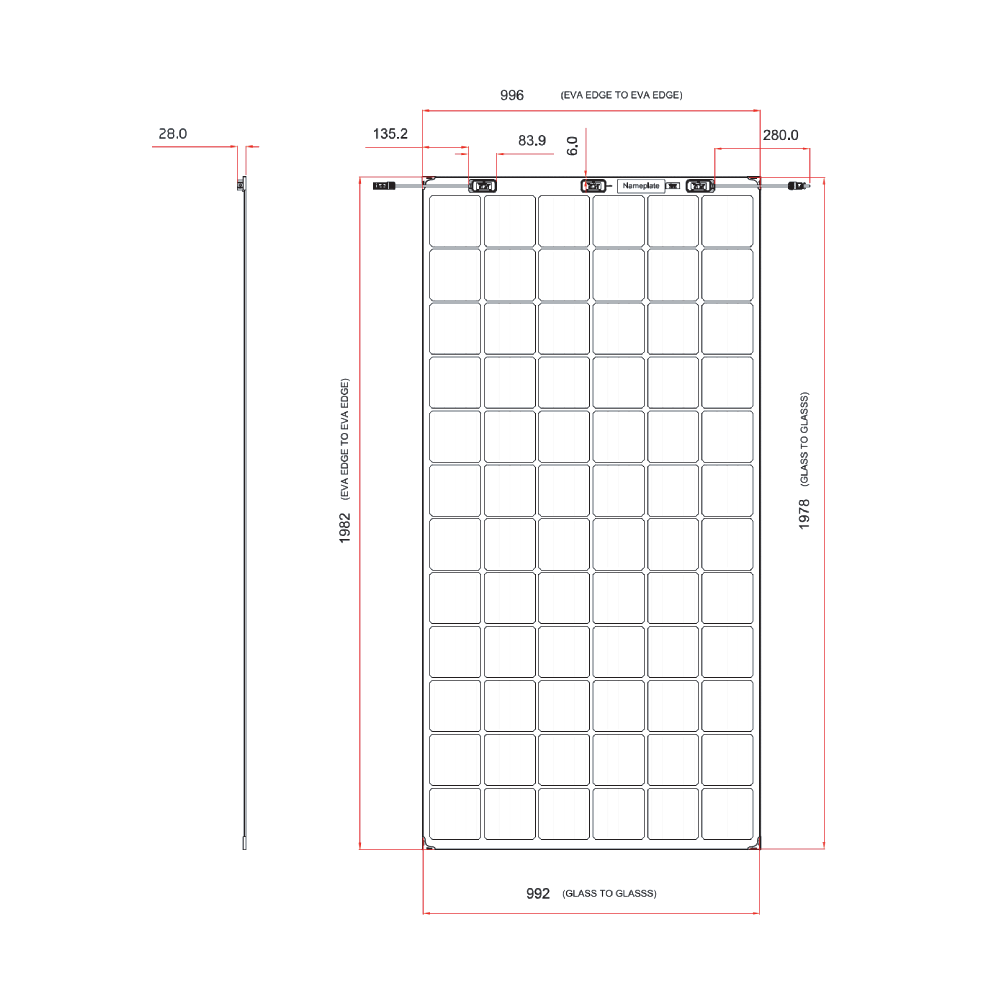

Design & Mechanical Specification
Panel Type Bifacial
Panel Surface Standard
Panel Weight 28.0 Kg
Panel Length 1978.0 mm
Panel Width 992.0 mm
Panel Thickness 6.0 mm
Cell Material Monocrystalline
Cell Type N/A
No. of Cells 72.0
Cell Dimension N/A
Glass Type Dual Glass
Encapsulation Type EVA
Junction Box IP Rate 68.0
Frame Type Frameless
Connector Type Trina TS4
Wind Load N/A Pa
Mechanical Load N/A Pa
Operating Temperature -40 >< +85 °C

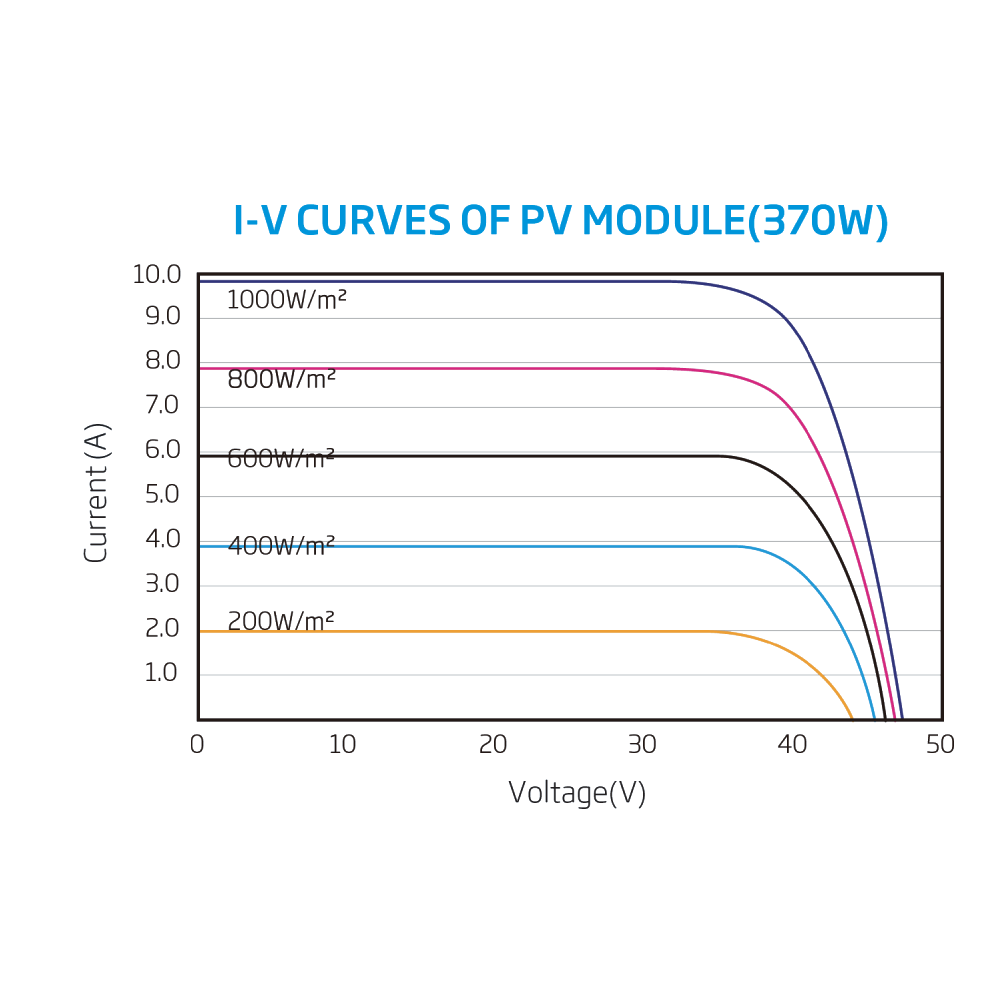

Electrical Specifications (*STC)
Nominal Max Power - Pmax 370.0 Wp
Maximum Operating Voltage - Vmpp 39.8 V
Maximum Operation Current - Impp 9.29 A
Open Circuit Voltage - Voc 48.3 V
Short Circuit Current - Isc 9.86 A
Module Efficiency - η 18.9 %
Power Tolerance (+)5% Wp
Maximum System Voltage 1500.0 V
Maximum Series Fuse Rating 20.0 A
Warranty
Products Warranty 10.0 yrs
Performance Warranty 30.0 yrs

General Description & Application

Solar panels are engineered for maximum efficiency, capturing sunlight and converting it into electricity with remarkable precision. Solar panels incorporate the latest advancements, ensuring you benefit from the most efficient and reliable solar solutions available on the market.
From extreme weather conditions to daily wear and tear, solar panels are designed to provide long-lasting, reliable performance, ensuring a sound investment in your energy future.
With solar panels, you're actively contributing to the reduction of greenhouse gas emissions and promoting a cleaner, healthier planet for generations to come.

Standards

Solar panels are engineered and testing according to below standards, as the case may be:
Low Voltage EU Directive 2014/35/EU
IEC 60068-2-68:1994
IEC 61215-1:2016
IEC 61215-1-1:2016
IEC 61215-2:2016
IEC 61730-1:2016
IEC 61730-2:2016
EN 61215-1:2016
EN 61215-1-1:2016
EN 61215-2:2017
EN 61730-1:2018
EN 61730-2:2018
IEC 61701:2011
EN 61701:2012
IEC 62716:2013
EN 62716:2013
IEC 62804-1:2015 / 2 PFG 2387/01.18
IEC 60068-2-68:1994
