  2. SUNPRO POWER, SPDG460W-144M, Standard Bifacial Mono-Crystalline PERC 460Wp Solar Panel

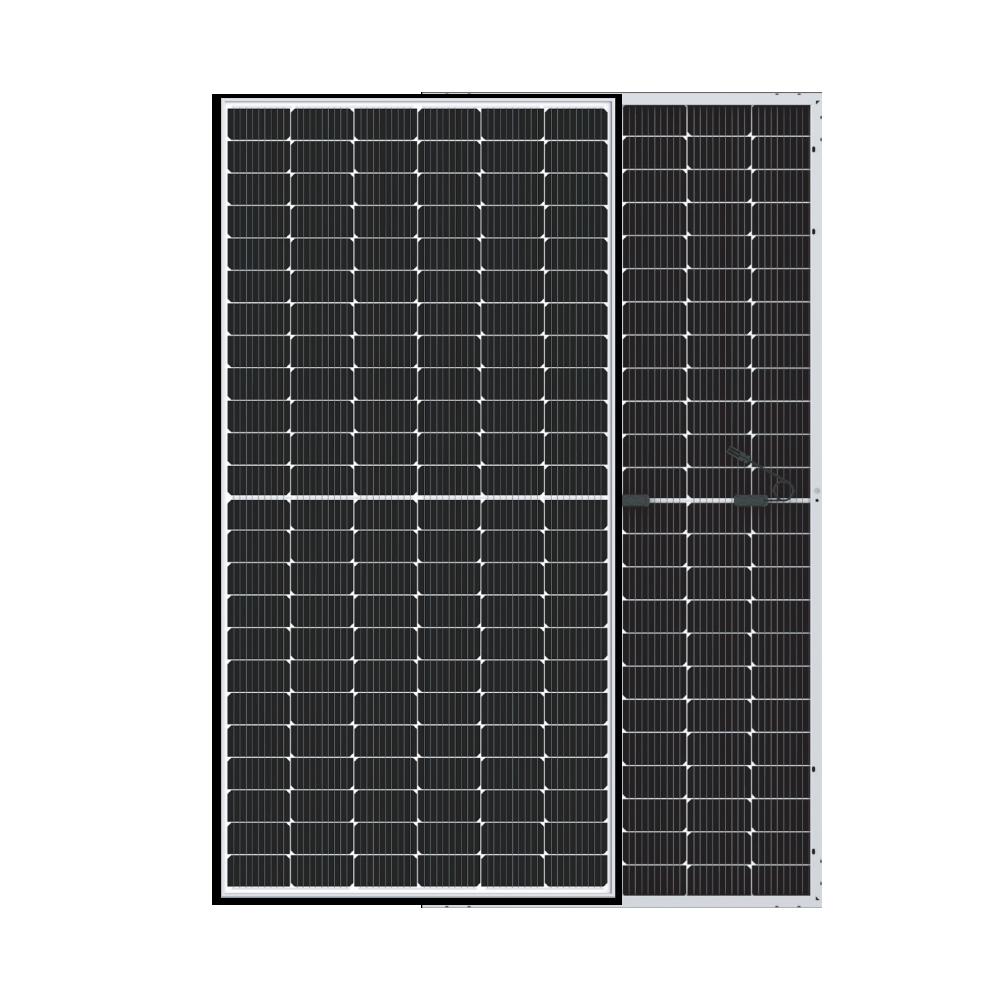

SUNPRO POWER, SPDG460W-144M, Standard Bifacial Mono-Crystalline PERC 460Wp Solar Panel

PV Panels
SUNPRO POWER

SUNPRO POWER provides innovative alternative energy solutions. Solar and energy storage solutions for residential & commercial applications. Experienced In PV industry for over 10 years.

Read more
https://www.polytrade.global/web/image/product.template/5870/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand SUNPRO POWER
Product Code SPDG460W-144M

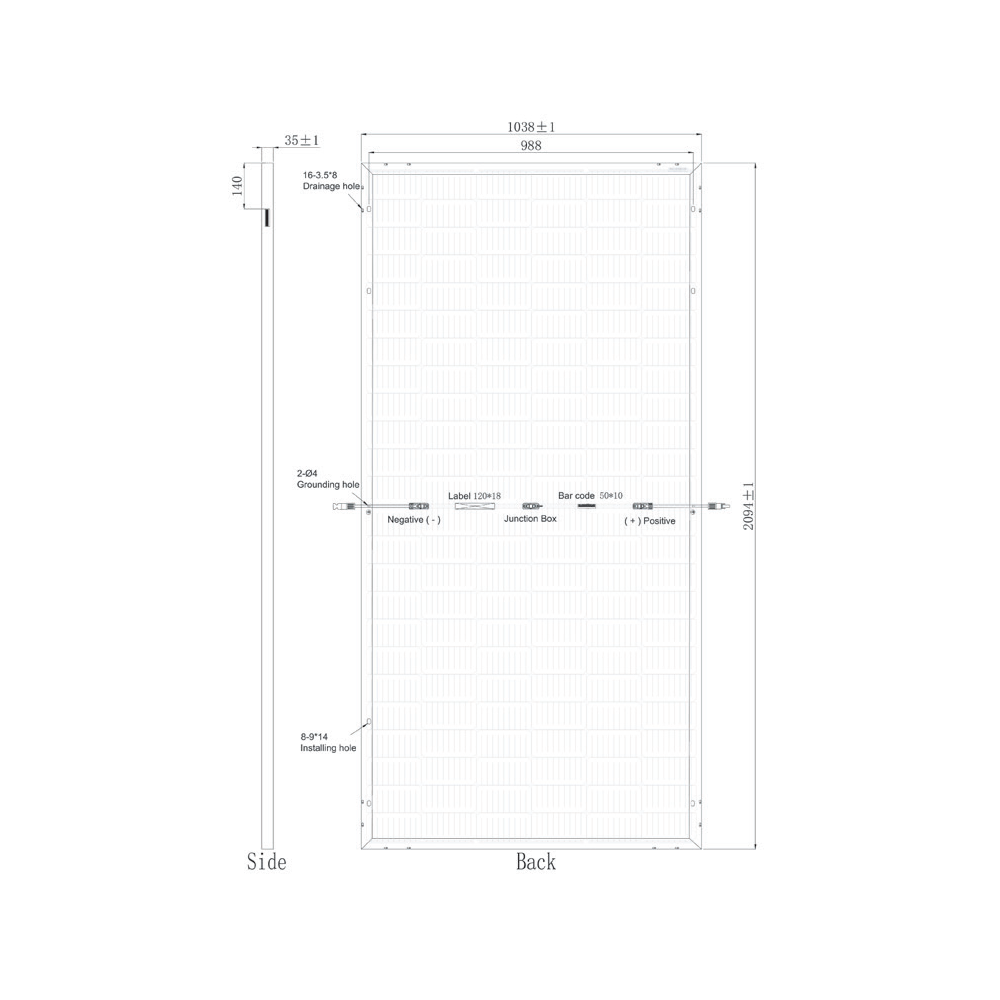

Design & Mechanical Specification
Panel Type Bifacial
Panel Surface Standard
Panel Weight 23.5 Kg
Panel Length 2094.0 mm
Panel Width 1038.0 mm
Panel Thickness 35.0 mm
Cell Material Monocrystalline
Cell Type Mono-Crystalline PERC
No. of Cells 144.0
Cell Dimension N/A
Glass Type Double
Encapsulation Type EVA
Junction Box IP Rate 68.0
Frame Type Silver frame
Connector Type MC4
Wind Load 2400.0 Pa
Mechanical Load 5400.0 Pa
Operating Temperature -40 >< +85 °C
Electrical Specifications (*STC)
Nominal Max Power - Pmax 460.0 Wp
Maximum Operating Voltage - Vmpp 41.2 V
Maximum Operation Current - Impp 11.7 A
Open Circuit Voltage - Voc 50.0 V
Short Circuit Current - Isc 11.69 A
Module Efficiency - η 21.2 %
Power Tolerance 0.03 Wp
Maximum System Voltage 1500.0 V
Maximum Series Fuse Rating 20.0 A
Warranty
Products Warranty 15.0 yrs
Performance Warranty 30.0 yrs

General Description & Application

Solar panels are engineered for maximum efficiency, capturing sunlight and converting it into electricity with remarkable precision. Solar panels incorporate the latest advancements, ensuring you benefit from the most efficient and reliable solar solutions available on the market.
From extreme weather conditions to daily wear and tear, solar panels are designed to provide long-lasting, reliable performance, ensuring a sound investment in your energy future.
With solar panels, you're actively contributing to the reduction of greenhouse gas emissions and promoting a cleaner, healthier planet for generations to come.

Standards

Solar panels are engineered and testing according to below standards, as the case may be:
Low Voltage EU Directive 2014/35/EU
IEC 60068-2-68:1994
IEC 61215-1:2016
IEC 61215-1-1:2016
IEC 61215-2:2016
IEC 61730-1:2016
IEC 61730-2:2016
EN 61215-1:2016
EN 61215-1-1:2016
EN 61215-2:2017
EN 61730-1:2018
EN 61730-2:2018
IEC 61701:2011
EN 61701:2012
IEC 62716:2013
EN 62716:2013
IEC 62804-1:2015 / 2 PFG 2387/01.18
IEC 60068-2-68:1994
