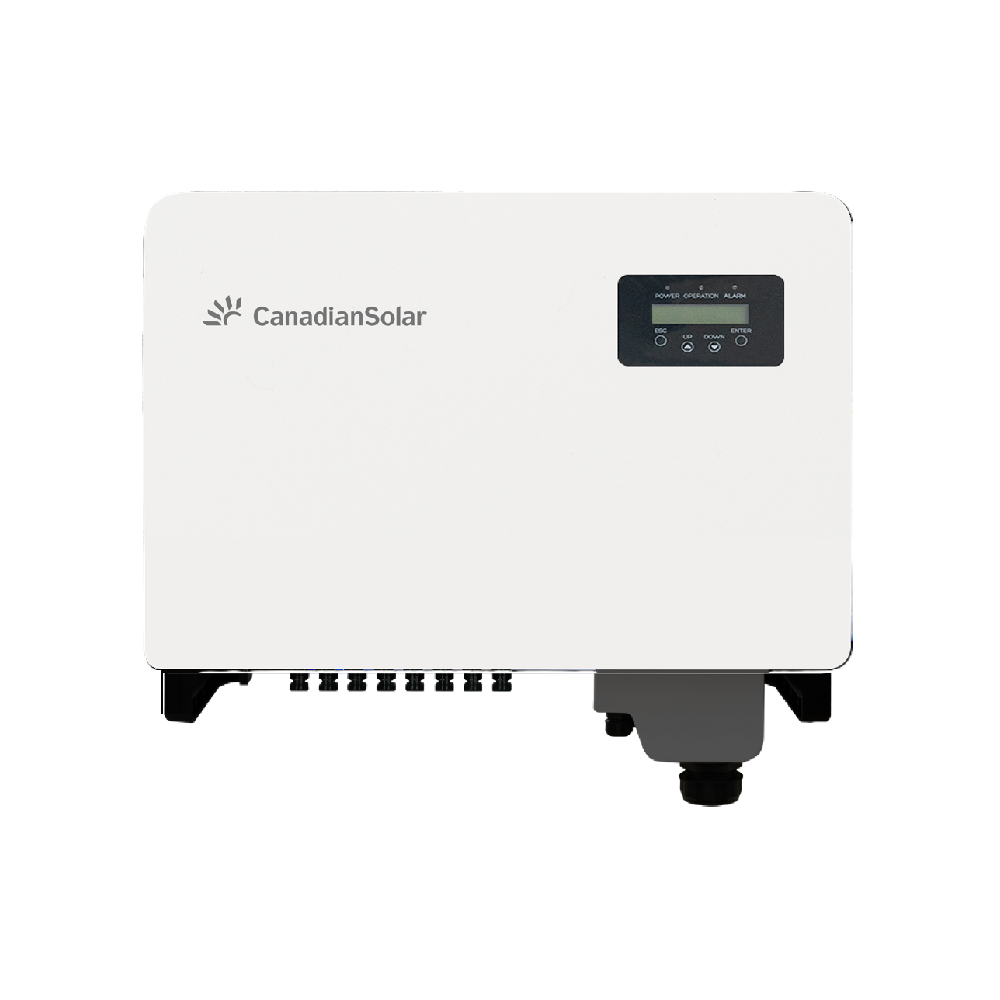

CANADIAN SOLAR, CSI-40K-T500GL02-E, 40kW, Three Phase Inverter

Inverters
CANADIAN SOLAR

Canadian Solar is one of the most bankable companies in the solar and renewable energy industry, having been publicly listed on the NASDAQ since 2006. Canadian Solar has two business segments: CSI Solar and Recurrent Energy

Read more
https://www.polytrade.global/web/image/product.template/6324/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identifications
Brand CANADIAN SOLAR
Product Code CSI-40K-T500GL02-E
Type Three Phase
General Specifications
Width 647.0 mm
Height 629.0 mm
Depth 252.0 mm
Weight 45.0 Kg
Min. Operating Temperature -25 °C
Max. Operating Temperature +60 °C
Max. Operating Altitude 4000 m
Relative Humidity 0 ~ 100 %
Topology Transformerless
IP Rating IP65

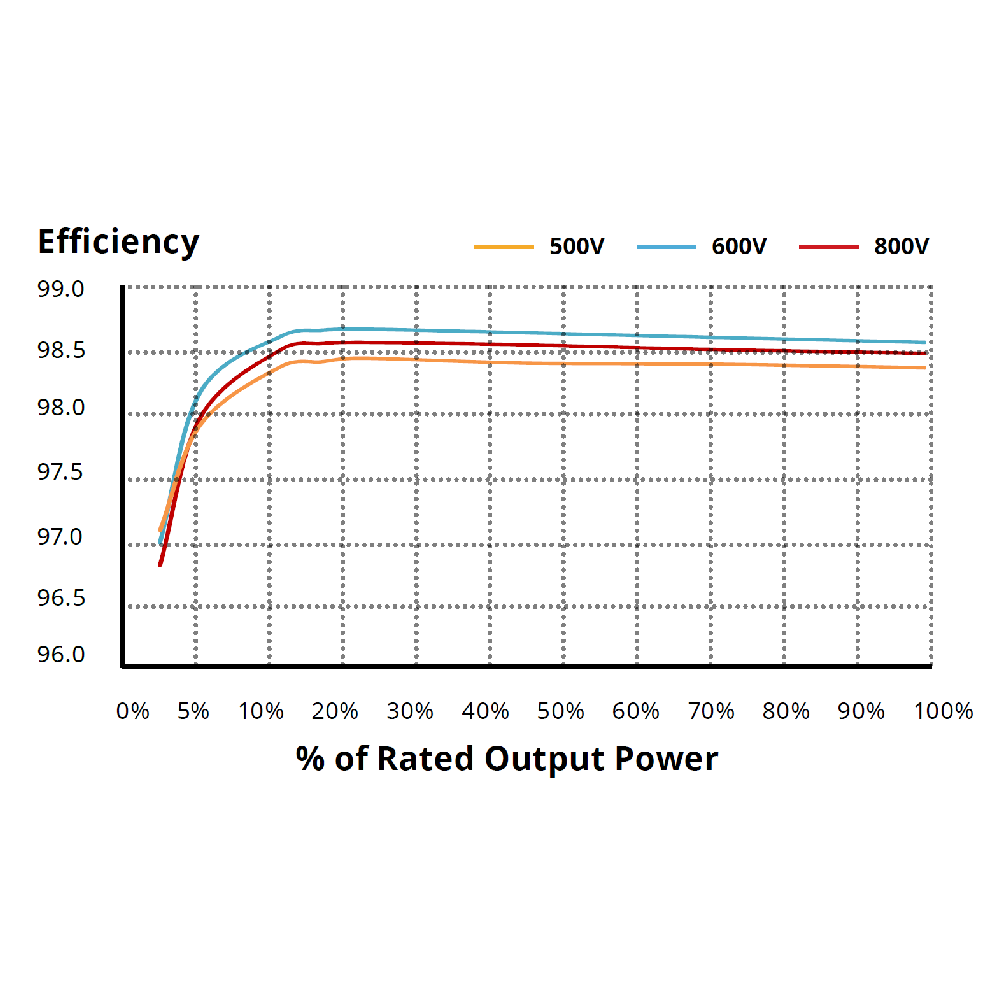

Max. Efficiency 98.8 %
Input
No. of MPPTS 4.0
Max. number of inputs 8
Max. Input Voltage 1100.0 V
Rated Input Voltage N/A V
Max.Short Circuit Current 160.0 A
Start Voltage 180.0 V
MPPT Operating Voltage Range 200 ~ 1000 V
Max. Input Current 104.0 A
Output
Rated Output Power 40000.0 W
Max. AC Apparent Power N/A VA
Max. Output Power N/A W
Rated AC Output Voltage 480.0 VA
Rated Grid Frequency 50/60 Hz
Max. Output Current 53.0 A
Total Harmonic Distortion N/A %
Power Factor >0.99
Protection
DC Surge Arrester N/A
Anti-islanding Protection N/A
AC Overcurrent Protection N/A
AC Short Circuit Protection N/A
DC Reverse Connection N/A
AC Surge Arrester N/A
Insulation Detection N/A
Communication
Display LCD
RS485 Optional
USB N/A
Monitoring BUS (MBUS) N/A
WiFi Optional

General Description & Application

Experience superior performance and reliability with Canadian Solar advanced inverters, designed to maximize your solar system's output and ensure long-lasting efficiency.

Key Features:

  • Enhanced Solar System Output:

    • High Current Support: Operates with 12A current, ideal for high current PV modules.
    • Max Efficiency 98%: Utilizing H6 Plus high-efficiency topology, our inverters achieve a maximum efficiency of 98%, with a European efficiency of 97.5%.

  • User-Friendly Design:

    • Lightweight: Easy installation by a single person due to the lightweight design.
    • Real-Time Monitoring: Monitor your system in real-time with our Cloud platform.
    • One-Click Configuration: Simplify setup with one-click inverter configuration.
    • Remote Management: Support for remote parameter configuration and firmware updates ensures your system is always up-to-date.

  • Higher Reliability:

    • Integrated Power Module: A seamless design integrating all essential power components.
    • Integrated DC Switch: Enhances safety and convenience with an integrated DC switch.
    • Natural Convection Cooling: Maintains optimal operating temperature through natural convection.
    • IP65 Rating: Durable and weather-resistant with an IP65 rating, perfect for both indoor and outdoor installations.

Upgrade to our high-performance inverters and enjoy increased efficiency, ease of use, and exceptional reliability. Ideal for residential, commercial, and industrial applications, our inverters are engineered to deliver superior results and long-term satisfaction.

Standards

Inverters are engineered and tested according to below standards:

IEC 62109-1/2
IEC 61000-6-1
IEC 61000-6-3
IEC 61727
IEC 62116
