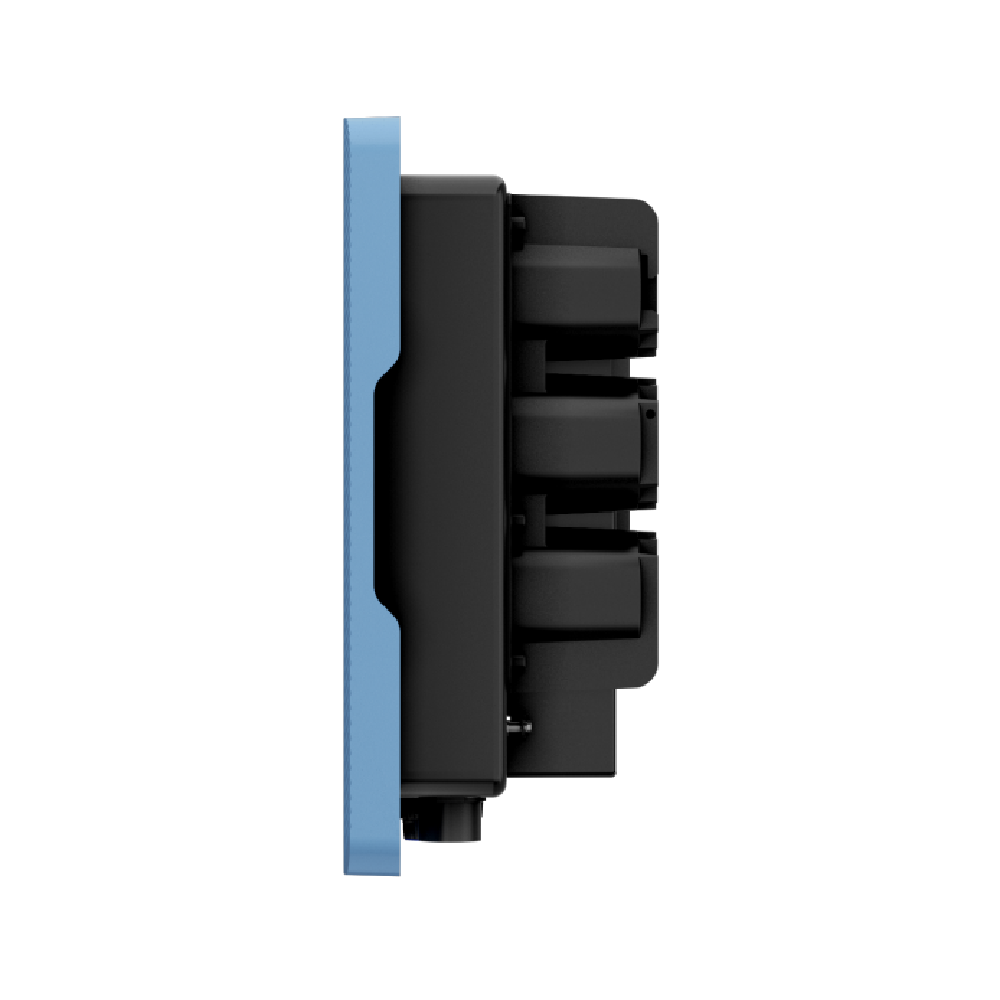

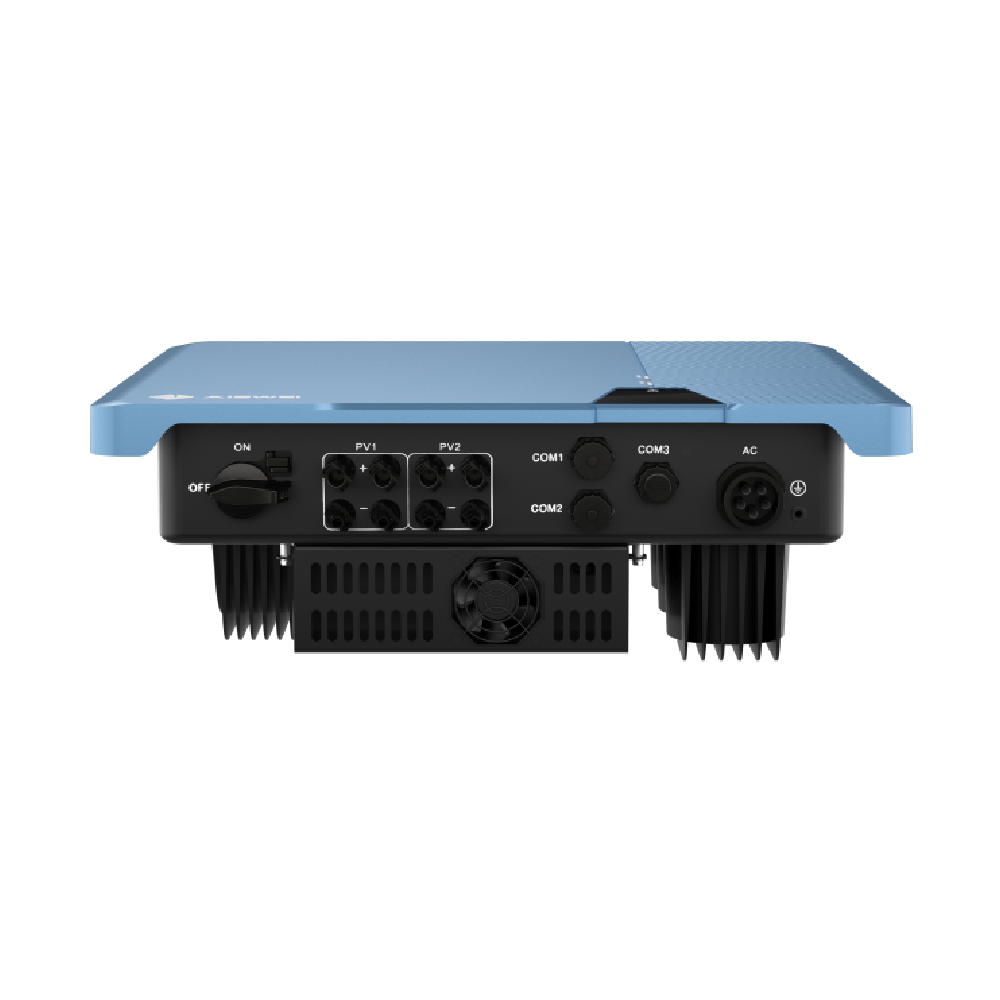

SOLPLANET, ASW 15K-LT-G2, 15kW, Three phase Inverter

Inverters
SOLPLANET

Solplanet manufactures Single-Phase, Three-Phase and Hybrid inverters, intuitive monitoring solutions and smart EV Chargers in compliance with international high-quality standards. Our research and development departments and production plants are growing and innovating constantly, so chances are we can meet your demand, no matter the size of your installation.

Read more
https://www.polytrade.global/web/image/product.template/6746/image_1920?unique=742326b
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identifications
Brand SOLPLANET
Product Code ASW 15K-LT-G2
Type Three phase
General Specifications
Width 503.0 mm
Height 435.0 mm
Depth 183.0 mm
Weight 17.0 Kg
Min. Operating Temperature -25.0 °C
Max. Operating Temperature 60.0 °C
Max. Operating Altitude 3000.0 m
Relative Humidity 100.0 %
Topology Non-isolated
IP Rating IP66
Max. Efficiency 98.6 %
Input
Max. Input Voltage 1100.0 V
Rated Input Voltage 630.0 V
Max. Input Current 26.0 A
Max.Short Circuit Current 40.0 A
Start Voltage 150.0 V
No. of MPPTS 2.0
Max. number of inputs 2.0
MPPT Operating Voltage Range 150-1000 V
Output
Rated Output Power 15000.0 W
Max. AC Apparent Power 15000.0 VA
Max. Output Power N/A W
Rated AC Output Voltage 220/380, 230/400, 240/415 VA
Rated Grid Frequency 50/60 Hz
Max. Output Current 24.0 A
Total Harmonic Distortion ≤3 %
Power Factor 0.8
Protection
Anti-islanding Protection Yes
AC Overcurrent Protection Yes
AC Short Circuit Protection Yes
DC Reverse Connection Yes
DC Surge Arrester Yes
AC Surge Arrester Yes
Insulation Detection N/A
Communication
Display LED
RS485 Yes
USB N/A
Monitoring BUS (MBUS) N/A
WiFi Yes

General Description & Application

Solplanet inverters are reliable and user-friendly photovoltaic power conversion solutions designed to deliver high efficiency, intelligent monitoring, and long-term operational stability. Suitable for residential and commercial solar installations, Solplanet inverters combine modern technology with simplified installation and maintenance, ensuring optimized energy production and seamless grid integration.

Key Features:

  • Optimized Energy Yield:

    • Multiple MPPT Trackers: Maximizes power generation across different roof orientations and shading conditions.
    • High Conversion Efficiency: Advanced inverter design reduces energy losses and enhances overall system performance.

  • Smart Monitoring & Connectivity:

    • Integrated Monitoring Platform: Real-time performance tracking via mobile app or web portal.
    • Flexible Communication Interfaces: WiFi, RS485, and optional LAN connectivity for easy system integration.
    • Remote Firmware Updates: Simplifies maintenance and system optimization.

  • Reliable & Durable Design:

    • Comprehensive Protection Functions: Includes over-voltage, over-current, short-circuit, reverse polarity, and anti-islanding protection.
    • Efficient Cooling System: Ensures stable operation and extended service life.
    • IP65 Protection Rating: Suitable for both indoor and outdoor installations.

Designed for simplicity and performance, Solplanet inverters provide scalable solutions that meet modern grid requirements while delivering dependable and efficient solar energy conversion.

Standards

Solplanet inverters are manufactured and tested in accordance with international standards, including:

IEC 62109-1/2 (Safety requirements for PV power converters)
IEC 61000-6-1 / IEC 61000-6-3 (Electromagnetic compatibility)
IEC 61727 (Utility interface requirements)
IEC 62116 (Anti-islanding protection)
EN 50549 (Grid connection compliance)
