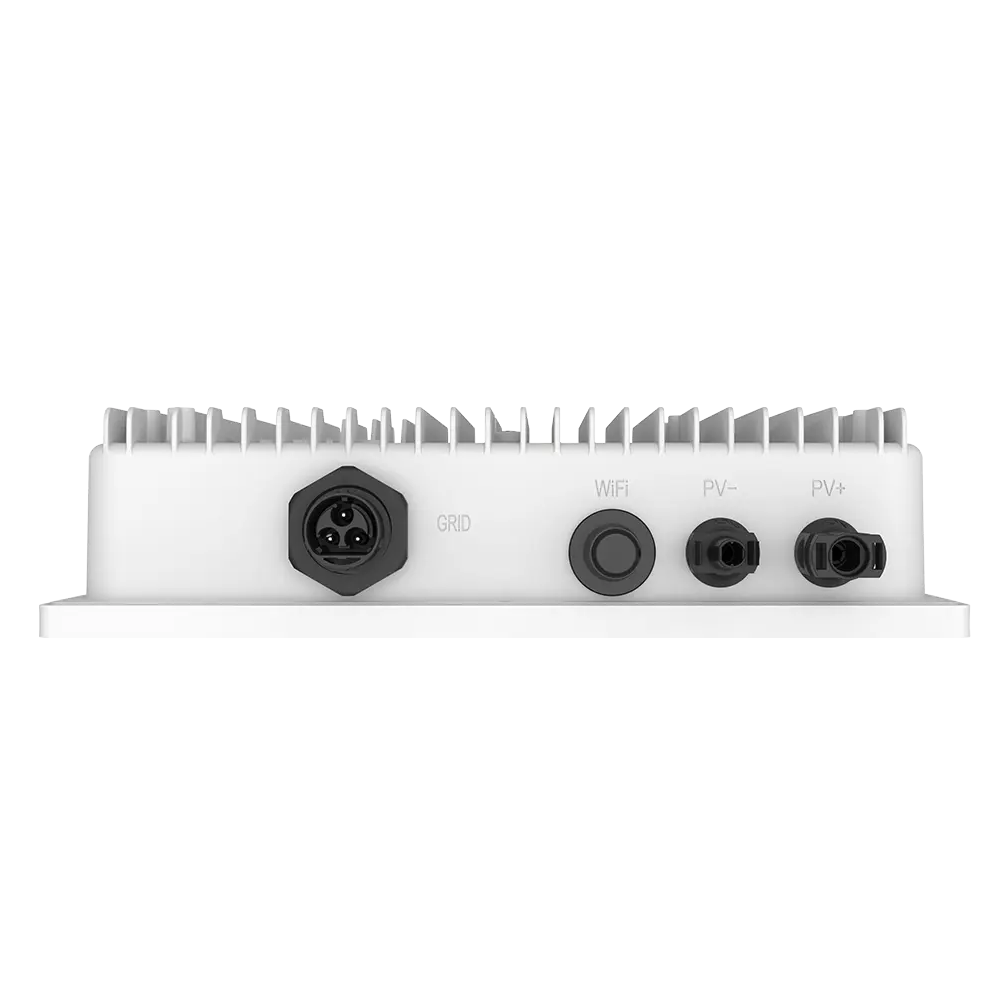

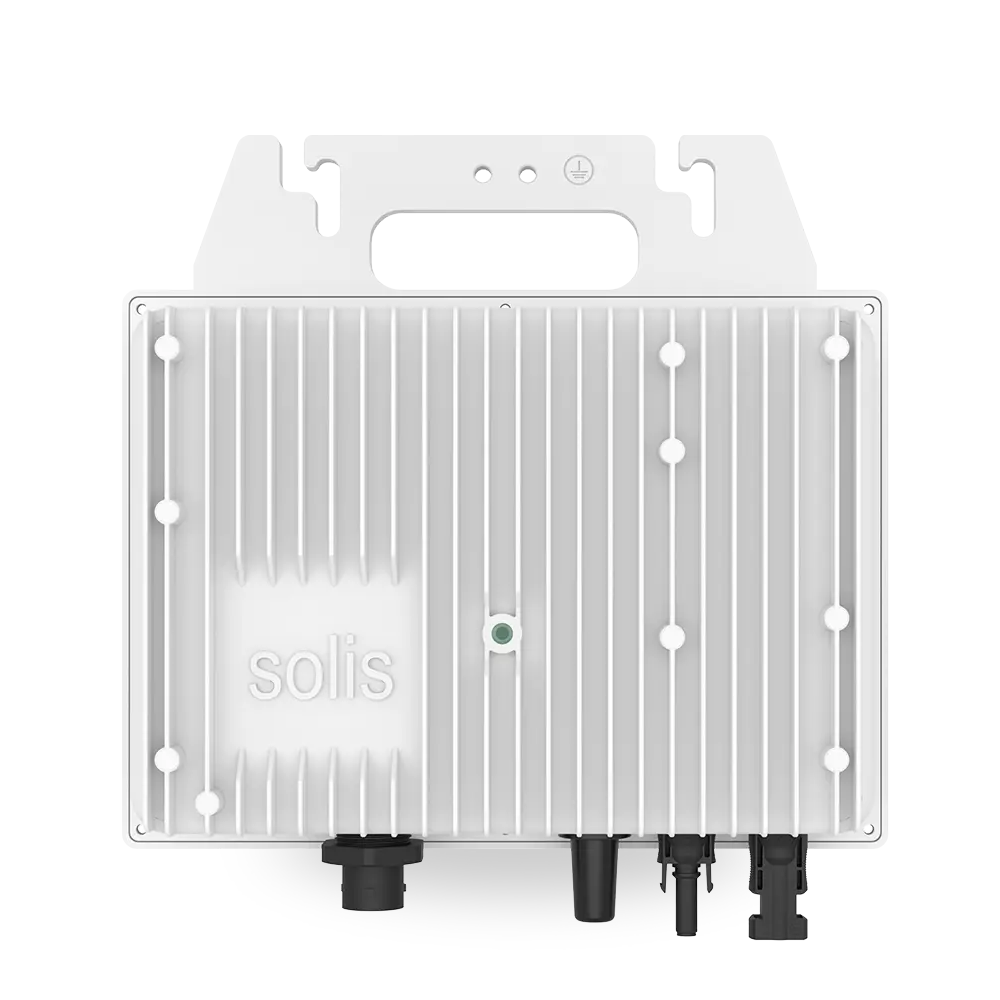

Solis S6-GR1P0.8K-UM, 0.8kW, Single Phase Inverter

Inverters
SOLIS

Established in 2005, Ginlong (Solis) is recognized as the world’s third-largest PV inverter manufacturer. As a global provider of solar and energy storage solutions for residential, commercial, and utility-scale customers, the company delivers value throughout the solar supply chain. Operating under the Solis brand, its solar inverter product line utilizes innovative string technology, ensuring top-tier reliability validated by rigorous international certifications.

Read more
https://www.polytrade.global/web/image/product.template/16162/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identifications
Brand Solis
Product Code S6-GR1P0.8K-UM
Type Single Phase
General Specifications
Width 265.0 mm
Height 255.0 mm
Depth 64.0 mm
Weight 2.9 Kg
Min. Operating Temperature -25.0 °C
Max. Operating Temperature 60.0 °C
Max. Operating Altitude 2000.0 m
Relative Humidity 0-100 %
Topology Transformerless
IP Rating IP65
Max. Efficiency 96.6 %
Input
Max. Input Voltage 500.0 V
Rated Input Voltage 60.0 V
Max. Input Current 16.0 A
Max.Short Circuit Current 25.0 A
Start Voltage 40.0 V
No. of MPPTS 1.0
Max. number of inputs 1.0
MPPT Operating Voltage Range 30 - 500 V
Output
Rated Output Power 800.0 W
Max. AC Apparent Power 800.0 VA
Max. Output Power 800.0 W
Rated AC Output Voltage 230.0 VA
Rated Grid Frequency 50.0 Hz
Max. Output Current 3.5 A
Total Harmonic Distortion <3 %
Power Factor >0,99
Protection
Anti-islanding Protection Yes
AC Short Circuit Protection Yes
AC Overcurrent Protection Yes
Insulation Detection Yes
AC Surge Arrester Yes
DC Surge Arrester Yes
DC Reverse Connection Yes
Communication
WiFi Wi-Fi + Bluetooth
RS485 N/A
Monitoring BUS (MBUS) N/A
Display LED+APP
USB MC4 connector

General Description & Application

S6-GR1P0.8K-UM

Key Features:

  • Balcony Solar Inverter

  • S6-GR1P0.8K-UM series inverter, can meet the balcony, terrace, garage, outdoor and other different PV project needs. Low-voltage starting, wide MPPT voltage range, 16A input current, suitable for a variety of PV modules; Weighing only 2.9kg, it is as big as a book, easy to install, and built-in Bluetooth and WiFi communication modules support remote monitoring, convenient and intelligent, providing a more user-friendly solution for a green and sustainable lifestyle.
