  2. Solis S6-GR1P1.5K-M, 1.5kW, Single Phase Inverter

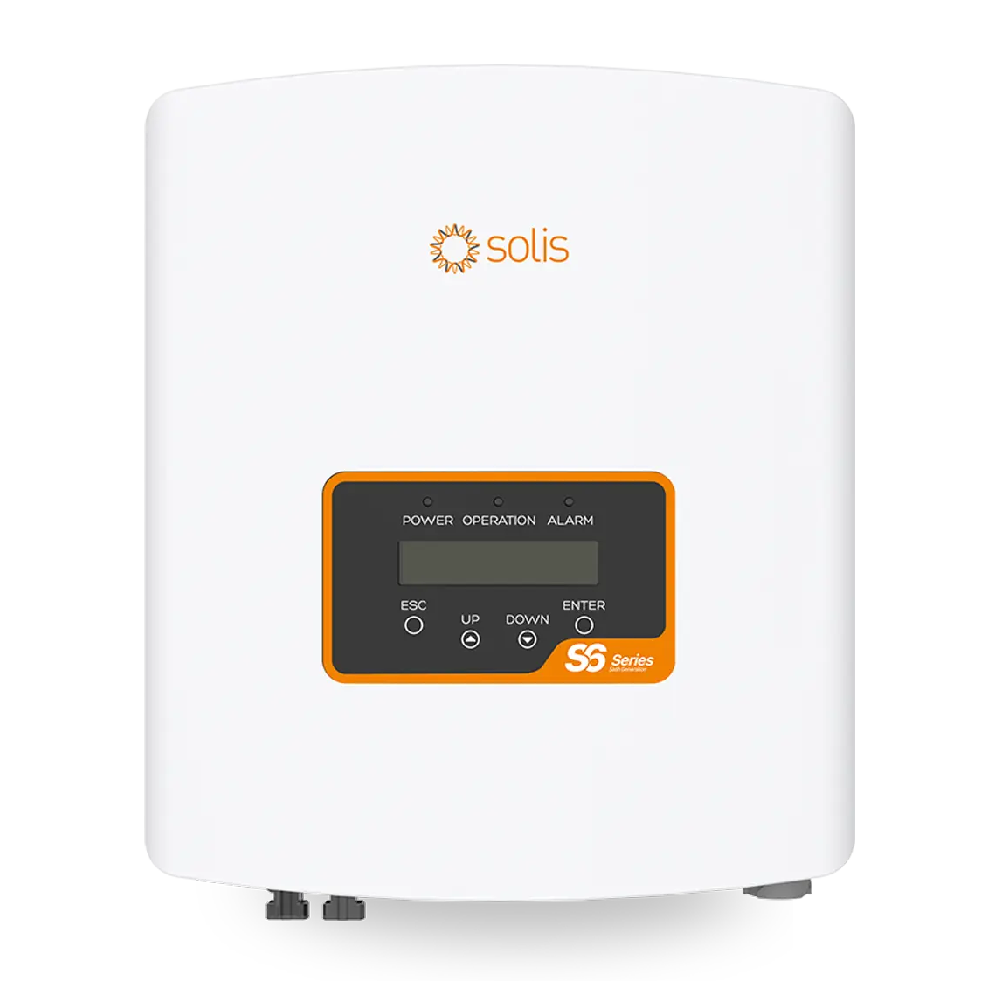

Solis S6-GR1P1.5K-M, 1.5kW, Single Phase Inverter

Inverters
SOLIS

Established in 2005, Ginlong (Solis) is recognized as the world’s third-largest PV inverter manufacturer. As a global provider of solar and energy storage solutions for residential, commercial, and utility-scale customers, the company delivers value throughout the solar supply chain. Operating under the Solis brand, its solar inverter product line utilizes innovative string technology, ensuring top-tier reliability validated by rigorous international certifications.

Read more
https://www.polytrade.global/web/image/product.template/16165/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identifications
Brand Solis
Product Code S6-GR1P1.5K-M
Type Single Phase
General Specifications
Width 310.0 mm
Height 373.0 mm
Depth 160.0 mm
Weight 7.7 Kg
Min. Operating Temperature -25.0 °C
Max. Operating Temperature 60.0 °C
Max. Operating Altitude 4000.0 m
Relative Humidity 0-100 %
Topology Transformerless
IP Rating IP66
Max. Efficiency 97.1 %
Input
Max. Input Voltage 550.0 V
Rated Input Voltage 200.0 V
Max. Input Current 14.0 A
Max.Short Circuit Current 22.0 A
Start Voltage 60.0 V
No. of MPPTS 1.0
Max. number of inputs 1.0
MPPT Operating Voltage Range 50 - 500 V
Output
Rated Output Power 1500.0 W
Max. AC Apparent Power 1650.0 VA
Max. Output Power 1650.0 W
Rated AC Output Voltage 220/230 VA
Rated Grid Frequency 50/60 Hz
Max. Output Current 8.1 A
Total Harmonic Distortion <3 %
Power Factor >0,99
Protection
Anti-islanding Protection Yes
AC Short Circuit Protection Yes
AC Overcurrent Protection Yes
Insulation Detection Yes
AC Surge Arrester Yes
DC Surge Arrester Yes
DC Reverse Connection Yes
Communication
WiFi Optional: Wi-Fi, GPRS
RS485 Yes
Monitoring BUS (MBUS) N/A
Display LCD
USB No

General Description & Application

S6-GR1P(0.7-3.6)K-M

Key Features:

  • Single Phase Grid-Tied Inverter

  • S6-GR1P(0.7-3.6)K-M series inverter is designed for residential PV plants. The maximum input current per string is 14A, which is compatible with high-efficiency modules and bi-facial modules. Compact and lightweight design, make it easy to install. Fanless design, lower noise, brings you a comfortable living environment. Integrated AFCI function can proactively reduce the risk of fire.
