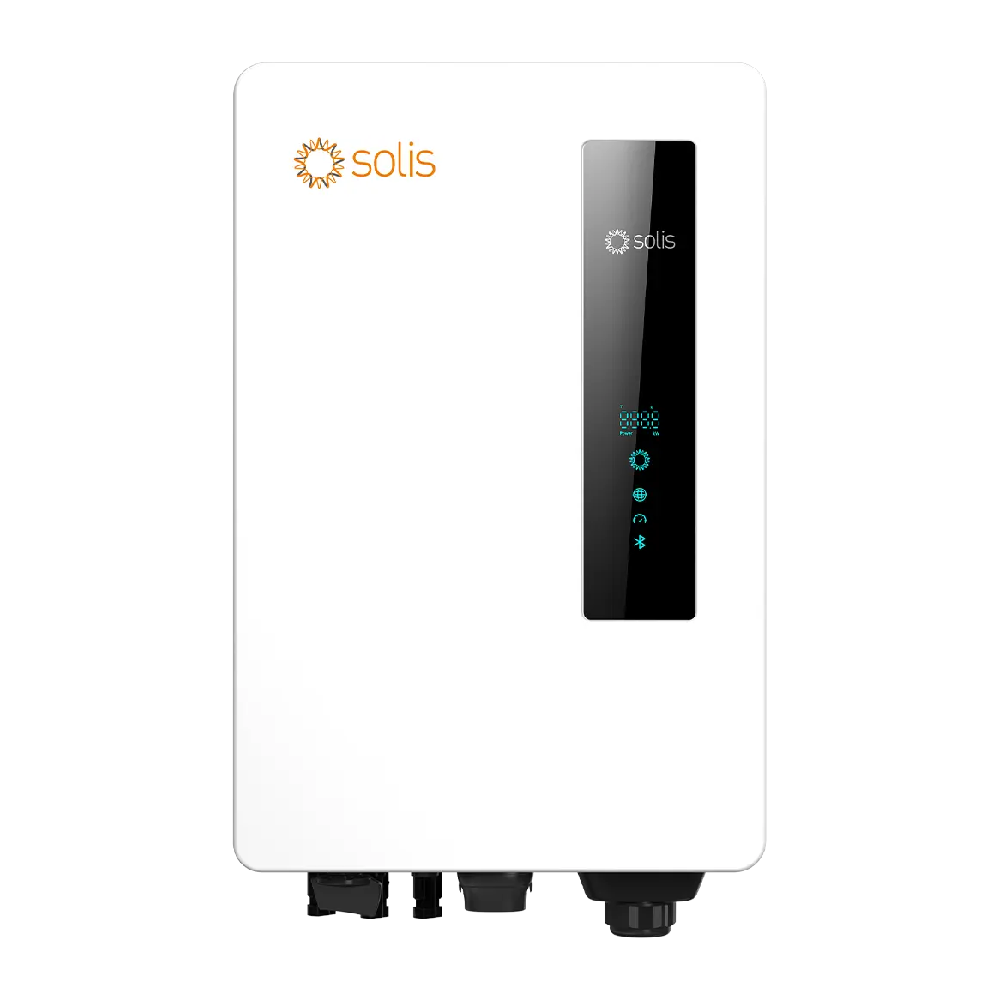

Solis S6-GR1P10K03-NV-ND, 10kW, Single Phase Inverter

Inverters
SOLIS

Established in 2005, Ginlong (Solis) is recognized as the world’s third-largest PV inverter manufacturer. As a global provider of solar and energy storage solutions for residential, commercial, and utility-scale customers, the company delivers value throughout the solar supply chain. Operating under the Solis brand, its solar inverter product line utilizes innovative string technology, ensuring top-tier reliability validated by rigorous international certifications.

Read more
https://www.polytrade.global/web/image/product.template/16205/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identifications
Brand Solis
Product Code S6-GR1P10K03-NV-ND
Type Single Phase
General Specifications
Width 335.0 mm
Height 510.0 mm
Depth 220.0 mm
Weight 16.1 Kg
Min. Operating Temperature -25.0 °C
Max. Operating Temperature 60.0 °C
Max. Operating Altitude 4000.0 m
Relative Humidity 0-100 %
Topology Transformerless
IP Rating IP66
Max. Efficiency 98.0 %
Input
Max. Input Voltage 550.0 V
Rated Input Voltage 330.0 V
Max. Input Current 60.0 A
Max.Short Circuit Current 25/25/25 A
Start Voltage 60.0 V
No. of MPPTS 3.0
Max. number of inputs 3.0
MPPT Operating Voltage Range 50 - 500 V
Output
Rated Output Power 10000.0 W
Max. AC Apparent Power 10000.0 VA
Max. Output Power 10000.0 W
Rated AC Output Voltage 220/230 VA
Rated Grid Frequency 50/60 Hz
Max. Output Current 45.5 A
Total Harmonic Distortion <3 %
Power Factor >0,99
Protection
Anti-islanding Protection Yes
AC Short Circuit Protection Yes
AC Overcurrent Protection Yes
Insulation Detection Yes
AC Surge Arrester Yes
DC Surge Arrester Yes
DC Reverse Connection Yes
Communication
WiFi Optional: Wi-Fi, GPRS
RS485 Yes
Monitoring BUS (MBUS) N/A
Display LED digital display & Bluetooth + APP
USB No

General Description & Application

S6-GR1P(7-10)K03-NV-ND

Key Features:

  • Single Phase Grid-Tied Inverter

  • The S6-GR1P(7-10)K03-NV-ND series inverters are designed for residential PV plants. With 3 MPPT and up to 20A series current, compatible with all high-power PV modules 182/210mm, suitable for a variety of complex residential orientations, maximizing the yield of the PV plant. The compact and lightweight design allows for easy installation. With zero export control and 24-hour load monitoring function, it makes your power plant intelligent and controllable. Additionally, it integrates rich safety features, ensuring your PV plant is extremely safe and reliable. Rest assured to enjoy green electricity.
