  2. Solis S6-EO1P5K-48-EU, 7kW, Single Phase Hybrid Energy Storage Inverter

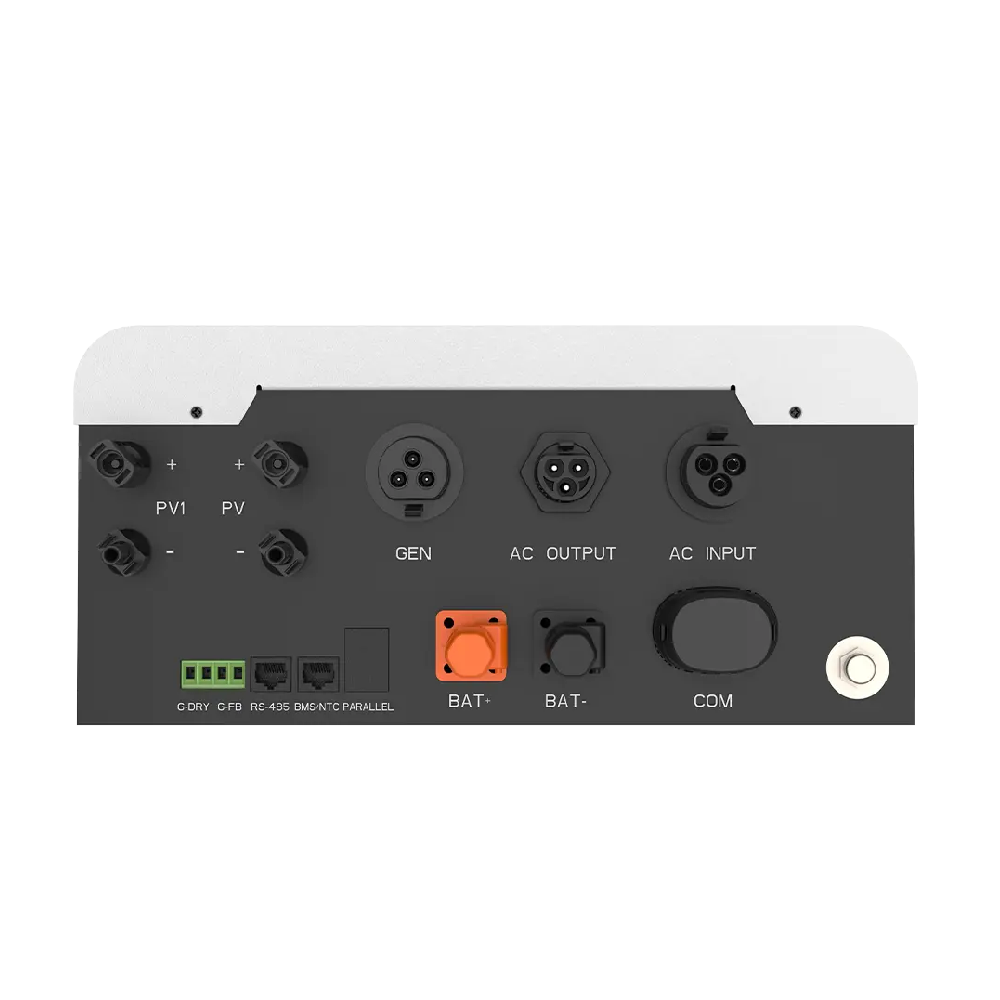

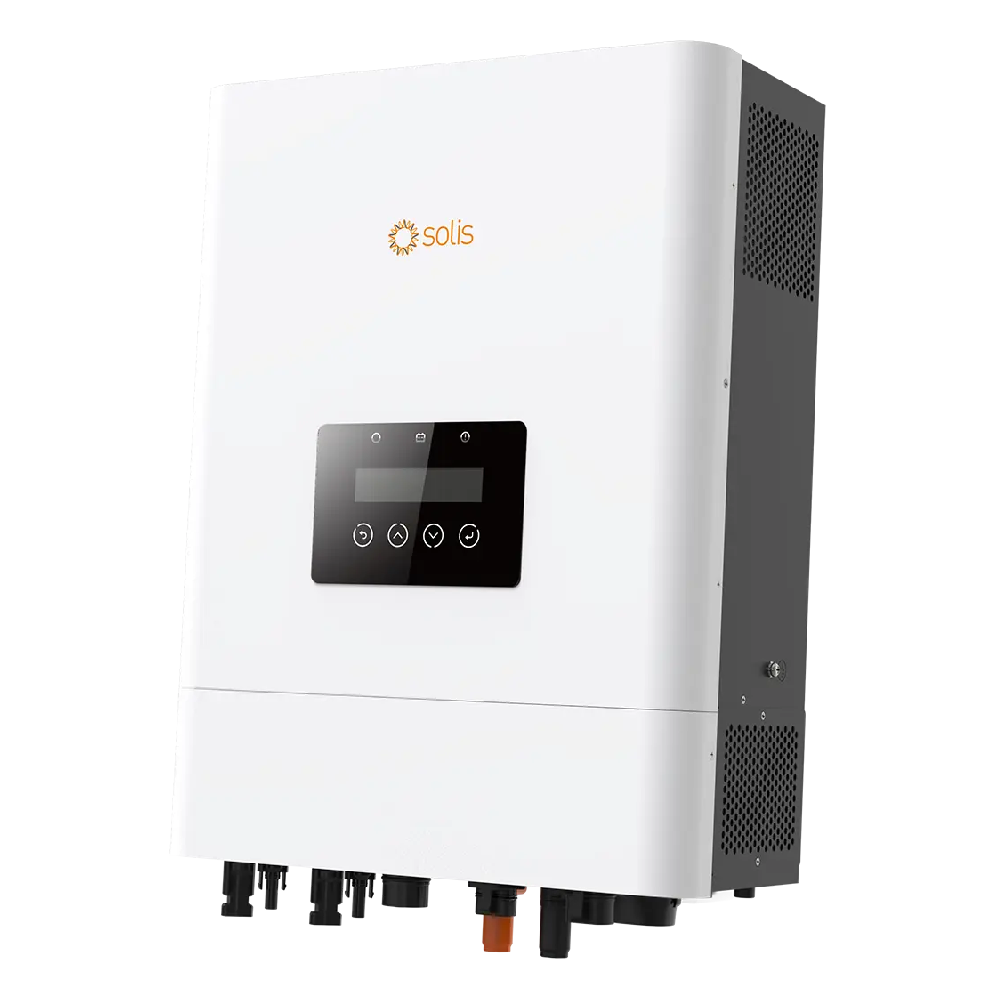

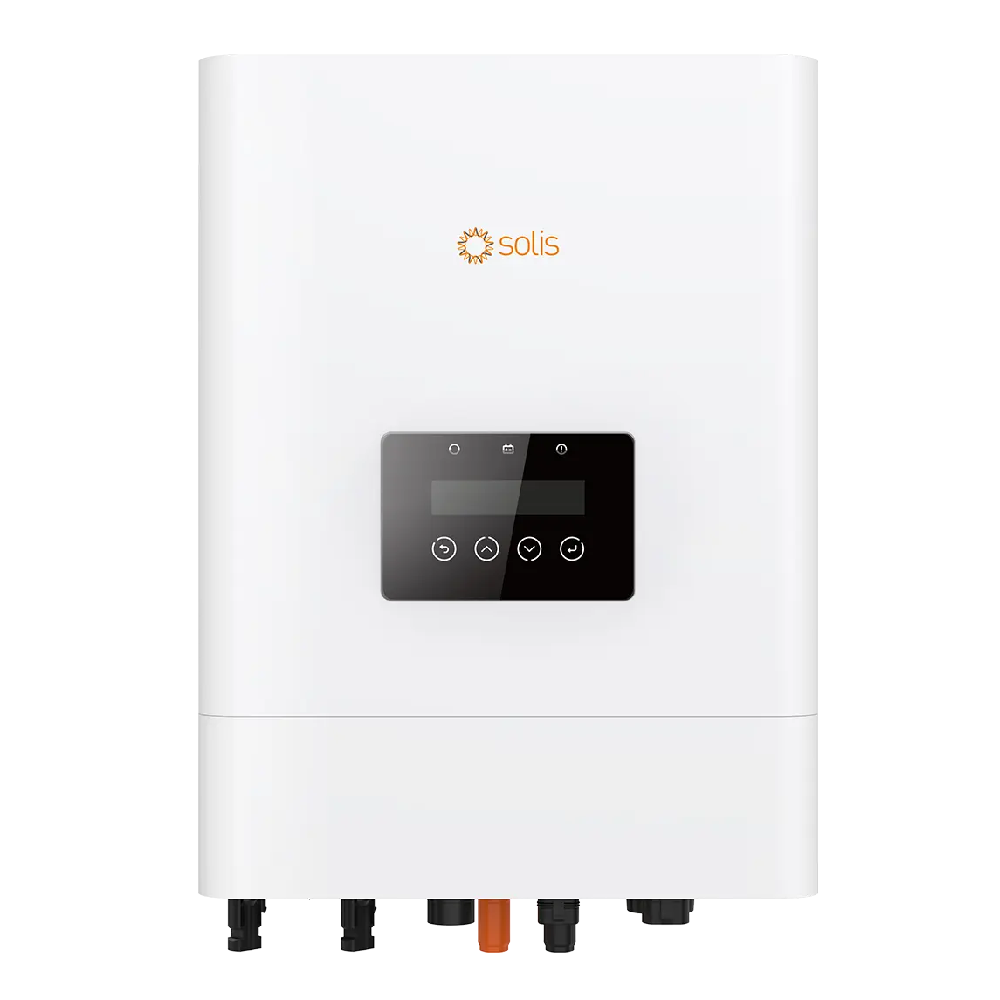

Solis S6-EO1P5K-48-EU, 7kW, Single Phase Hybrid Energy Storage Inverter

Inverters
SOLIS

Established in 2005, Ginlong (Solis) is recognized as the world’s third-largest PV inverter manufacturer. As a global provider of solar and energy storage solutions for residential, commercial, and utility-scale customers, the company delivers value throughout the solar supply chain. Operating under the Solis brand, its solar inverter product line utilizes innovative string technology, ensuring top-tier reliability validated by rigorous international certifications.

Read more
https://www.polytrade.global/web/image/product.template/16333/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identifications
Brand Solis
Product Code S6-EO1P5K-48-EU
Type Single Phase Hybrid Energy Storage
General Specifications
Width 340.0 mm
Height 480.0 mm
Depth 170.0 mm
Weight 13.8 Kg
Min. Operating Temperature -25.0 °C
Max. Operating Temperature 60.0 °C
Max. Operating Altitude 2000.0 m
Relative Humidity 0-100 %
Topology High frequency non-isolation
IP Rating IP21
Max. Efficiency 96.6 %
Input
Max. Input Voltage 500.0 V
Rated Input Voltage N/A V
Max. Input Current 16/16 A
Max.Short Circuit Current 40.0 A
Start Voltage 90.0 V
No. of MPPTS 1.0
Max. number of inputs 2.0
MPPT Operating Voltage Range 90 - 430 V
Output
Rated Output Power 7000.0 W
Max. AC Apparent Power 7000.0 VA
Max. Output Power N/A W
Rated AC Output Voltage 230.0 VA
Rated Grid Frequency 50/60 Hz
Max. Output Current 35.0 A
Total Harmonic Distortion <3 %
Power Factor N/A
Protection
Anti-islanding Protection No
AC Short Circuit Protection Yes
AC Overcurrent Protection Yes
Insulation Detection No
AC Surge Arrester Yes
DC Surge Arrester Yes
DC Reverse Connection No
Communication
WiFi Optional: Wi-Fi
RS485 No
Monitoring BUS (MBUS) N/A
Display LCD
USB No

General Description & Application

S6-EO1P(4-5)K-48-EU

Key Features:

  • Single Phase Low Voltage Off-Grid Inverter

  • S6-EO1P(4-5)K-48-EU series off-grid inverter is designed for areas without power grids or areas with frequent power outages. It supports parallel operation of up to 6 units, systems of up to 30kW. Pleasing appearance and compact structure make installation more convenient. Integrates multiple protections and fault monitoring to ensure the safety of batteries and equipment.
