DEYE SUN-BK60-2.0KWH-EU-AM2, Single Phase Micro Hybrid Storage System (ESS)

BESS
DEYE

DEYE is a globally recognized manufacturer of advanced solar inverter solutions, delivering reliable and high-performance technology for modern energy systems. With a comprehensive portfolio of on-grid, hybrid, and off-grid inverters available in single-phase and three-phase configurations, DEYE products are designed to meet the needs of residential, commercial, and industrial applications. Engineered for efficiency, durability, and smart energy management, DEYE inverters ensure optimal system performance, seamless battery compatibility, and intelligent monitoring, helping users maximize energy savings and long-term sustainability.

Read more
https://www.polytrade.global/web/image/product.template/31047/image_1920?unique=0c03f9f
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand DEYE
Product Code SUN-BK60-2.0KWH-EU-AM2
General Specifications
Width 450.0 mm
Height 210.0 mm
Depth 244 mm
Weight 20.0 Kg
Operating Temperature -10 >< 50 °C
Max. Operating Altitude 2000 m
Relative Humidity 15-85(No Condensing) %
IP Rating -
Battery Chemistry LiFePO4
Max. Efficiency - %
Electrical Data
Rated AC Output Power 600 kVA
Rated DC Power 660 kW
Storage Capacity 2 kWh
DC Voltage (Nominal) 51.2 V
DC Voltage Range 44.8 - 57.6 V
Max.Short Circuit Current 27 + 27 A
Protection
Protection <p>-</p>
Communication
Communication Interface Wi-Fi, Bluetooth, CAN2.0, LoRa
Communication Protocol -

General Description & Application

Micro Hybrid Energy Storage System

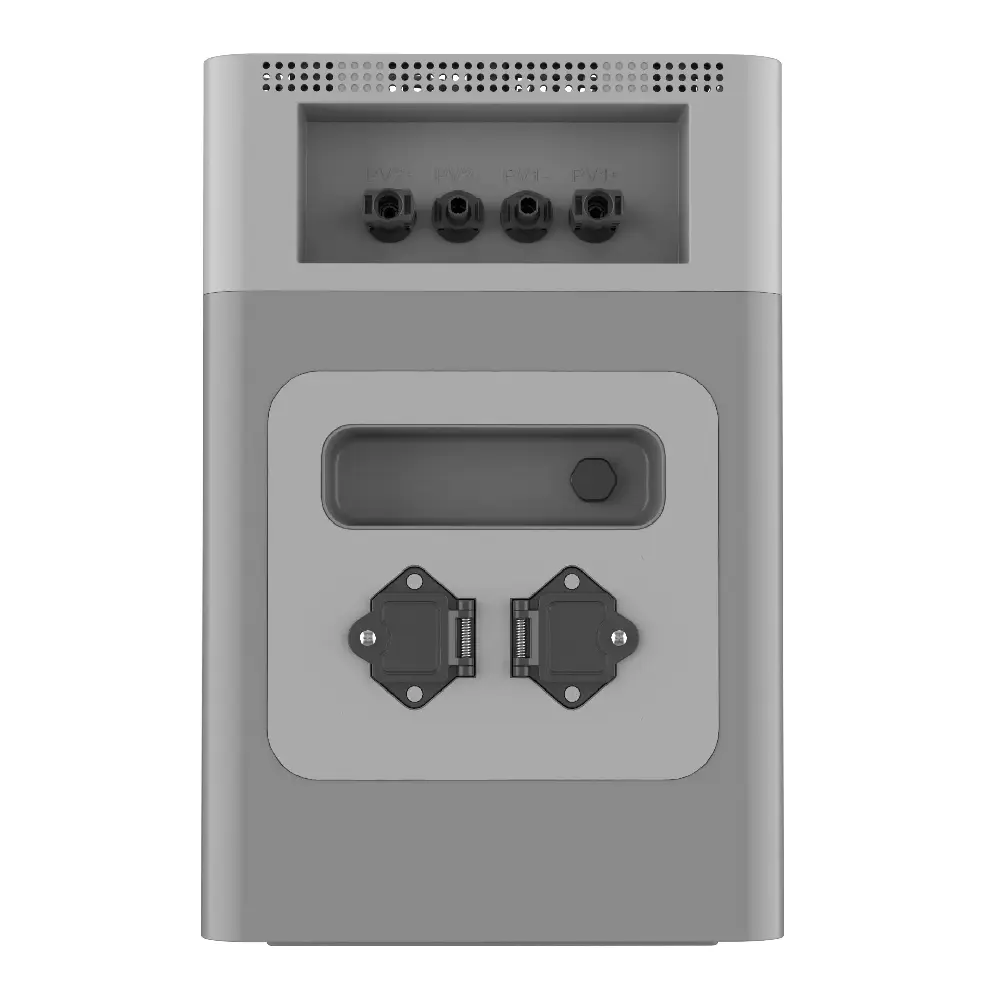

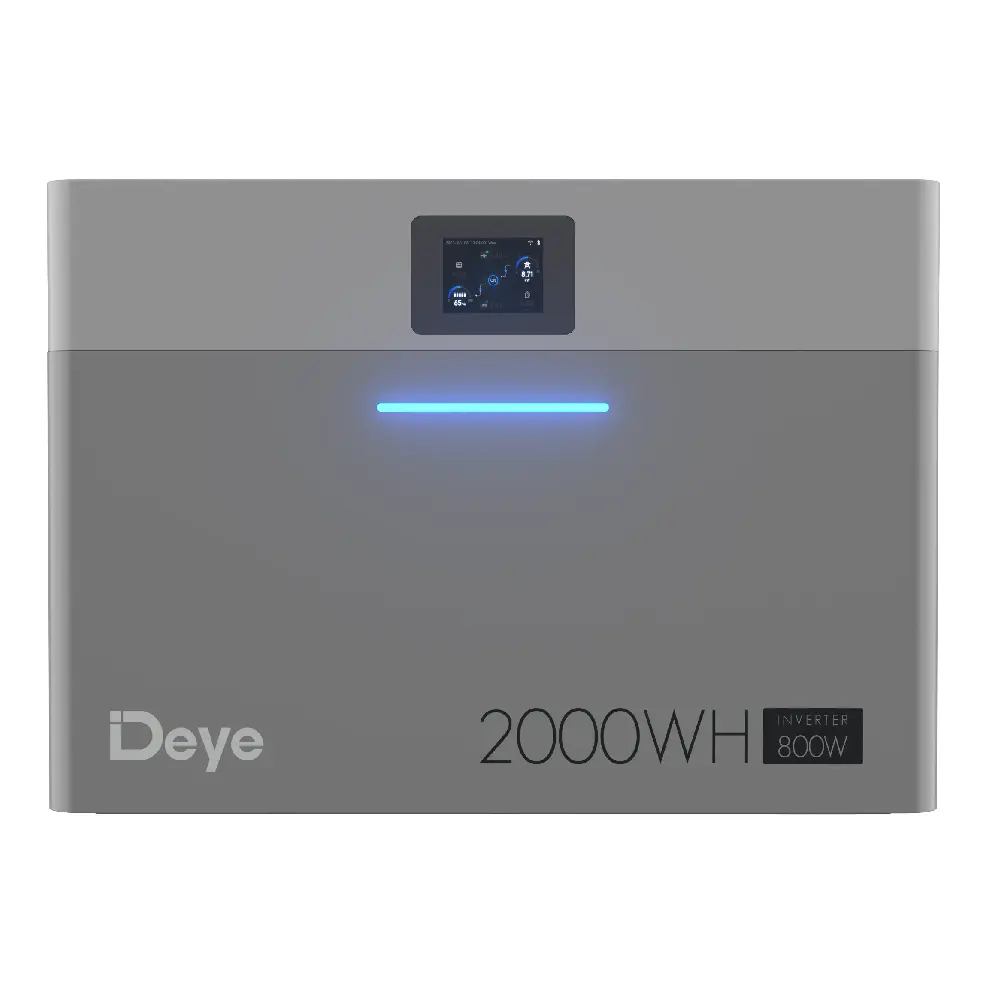

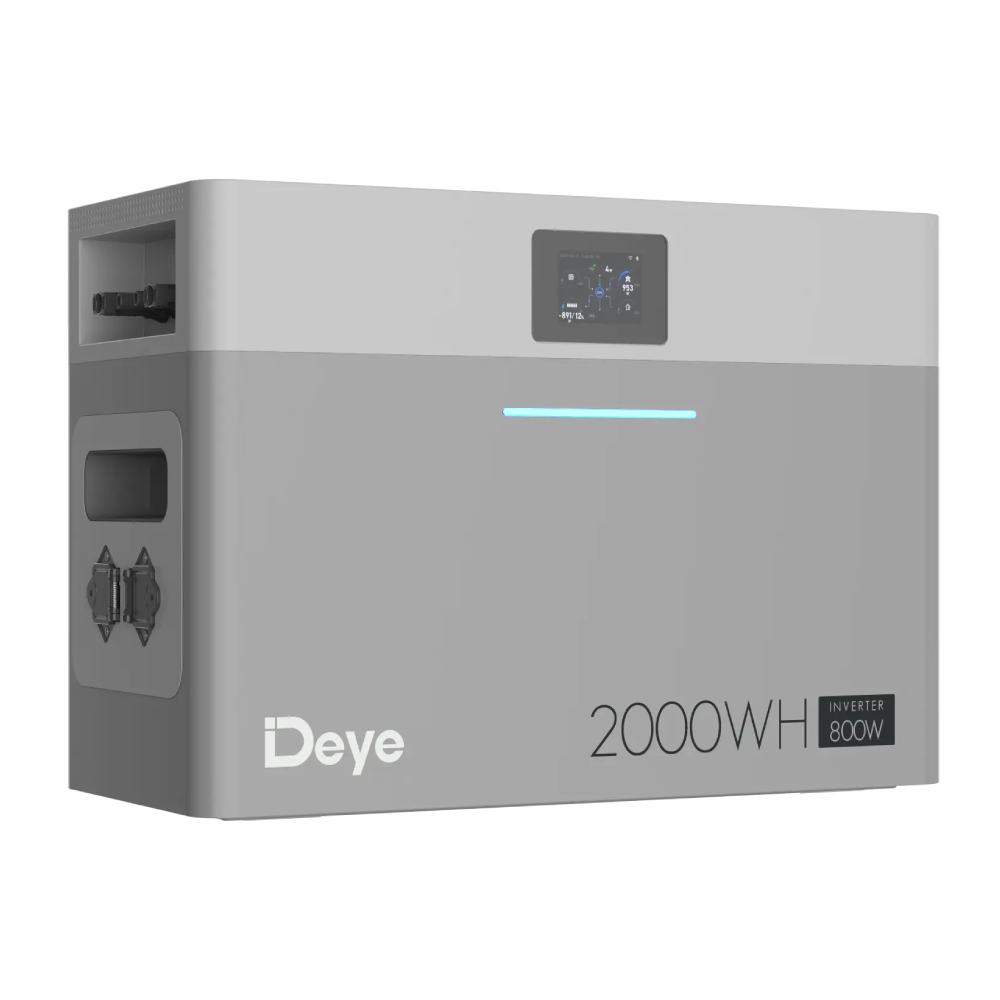

DEYE SUN-BK(60-100)-2.0KWH-EU-AM2 is a compact all-in-one micro hybrid energy storage system designed for residential solar applications. The system integrates a high-efficiency micro inverter and a 2.0 kWh LiFePO4 battery, providing reliable energy storage and optimized power management.

Available with rated AC output power options of 600W, 800W, and 1000W, the unit supports grid-connected operation and enhances self-consumption by storing surplus solar energy for later use.


Key Features

  • Integrated 2.0 kWh LiFePO4 battery
  • Rated AC Output Power: 0.6 kW / 0.8 kW / 1.0 kW
  • High-efficiency micro inverter design
  • 220/230 Vac, 50/60 Hz compatibility
  • Compact and easy-to-install solution
  • Smart monitoring and energy management
