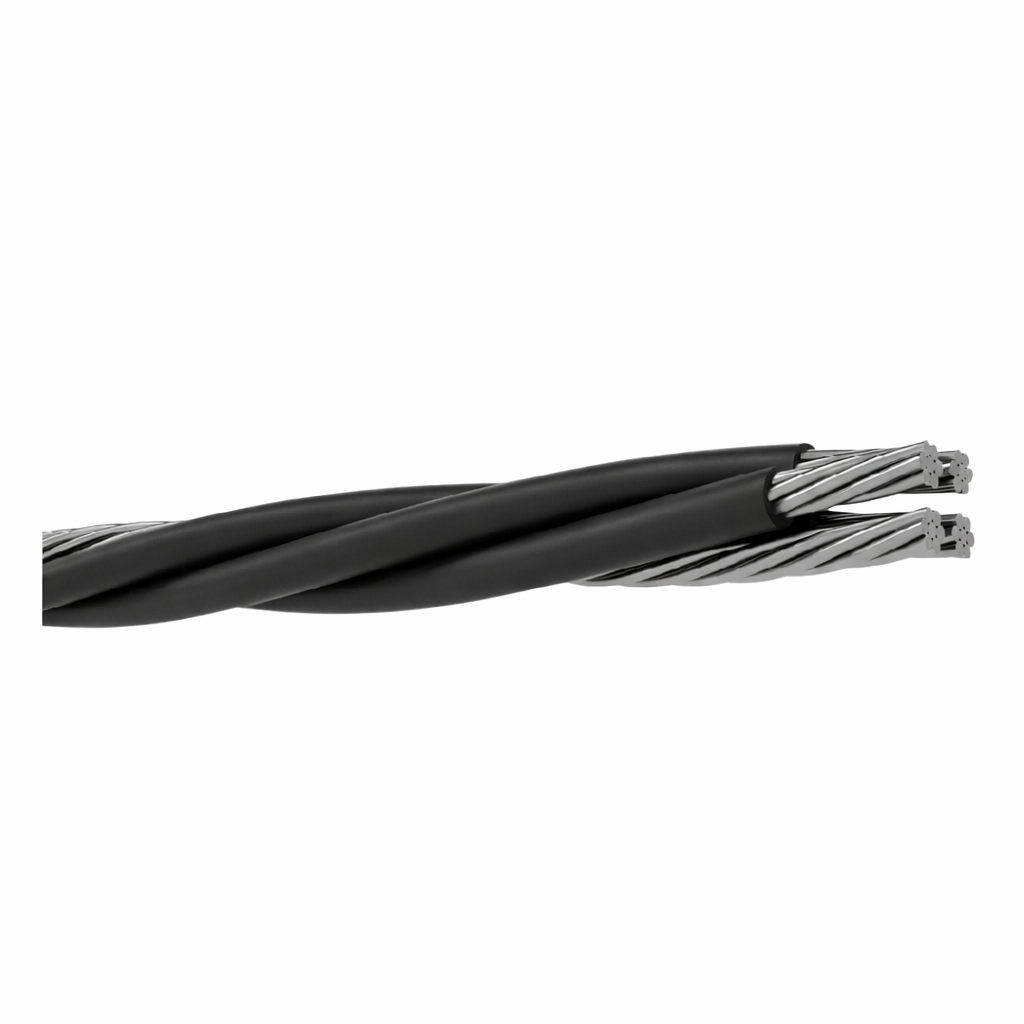

Halogen-Free Cable ABC 3x70 + 54.6 + 1x16 NFC-33-209 XLPE 4kV

ABC
POWERVINE

Powervine is a trusted brand in the energy industry, specializing in the production of top-quality energy cables and equipment. Our products are designed to provide safe and efficient power transmission, with a focus on sustainability and environmental responsibility. We use only the highest-quality materials and the latest manufacturing techniques to ensure that our products meet the strictest industry standards for safety, reliability, and performance. Whether you're looking for cables and equipment for a renewable energy project or traditional power transmission, Powervine has the products and expertise you need to achieve your goals.

Read more
https://www.polytrade.global/web/image/product.template/30415/image_1920?unique=5684b93
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Cable Specification
Twisted Diameter 38 mm
Weight 980.58 kg/km
Max. Permissible Operating Temperature 90 °C
Short Circuit Temperature 250 °C
Test Voltage (AC) 4 kV
Minimum Installation Temperature 5 °C
Minimum Bending Radius 12xD
Insulated Conductors
Number of Conductors 3
Cross Section 70 mm²
Conductor Diameter 9.7 mm
Conductor DC Resistance @ 20°C 0.443 Ω/km
Current Carrying Capacity 158 A
Wires No. 12
Extra Insultated Conductors
Number of Conductors 1
Cross Section 16 mm²
Current Carrying Capacity 80 A
Wire Hanger
Average Wire Diameter 12.8 mm
Tensile Strength 16.6 kN
Conductor DC Resistance @ 20°C 0.63 Ω/km

General Description & Application

ABC (Aerial Bundled Cable) series are high-performance overhead power conductors designed for safe and efficient distribution of electrical energy in urban, rural, and remote areas. Manufactured with aluminum conductors and halogen-free insulation, these cables offer excellent electrical and mechanical properties, corrosion resistance, and long service life.
Their bundled design minimizes line drop, reduces corona effects, improves reliability during harsh weather conditions, and enhances overall grid safety. ABC cables comply with international standards and are suitable for medium and low voltage power distribution systems.

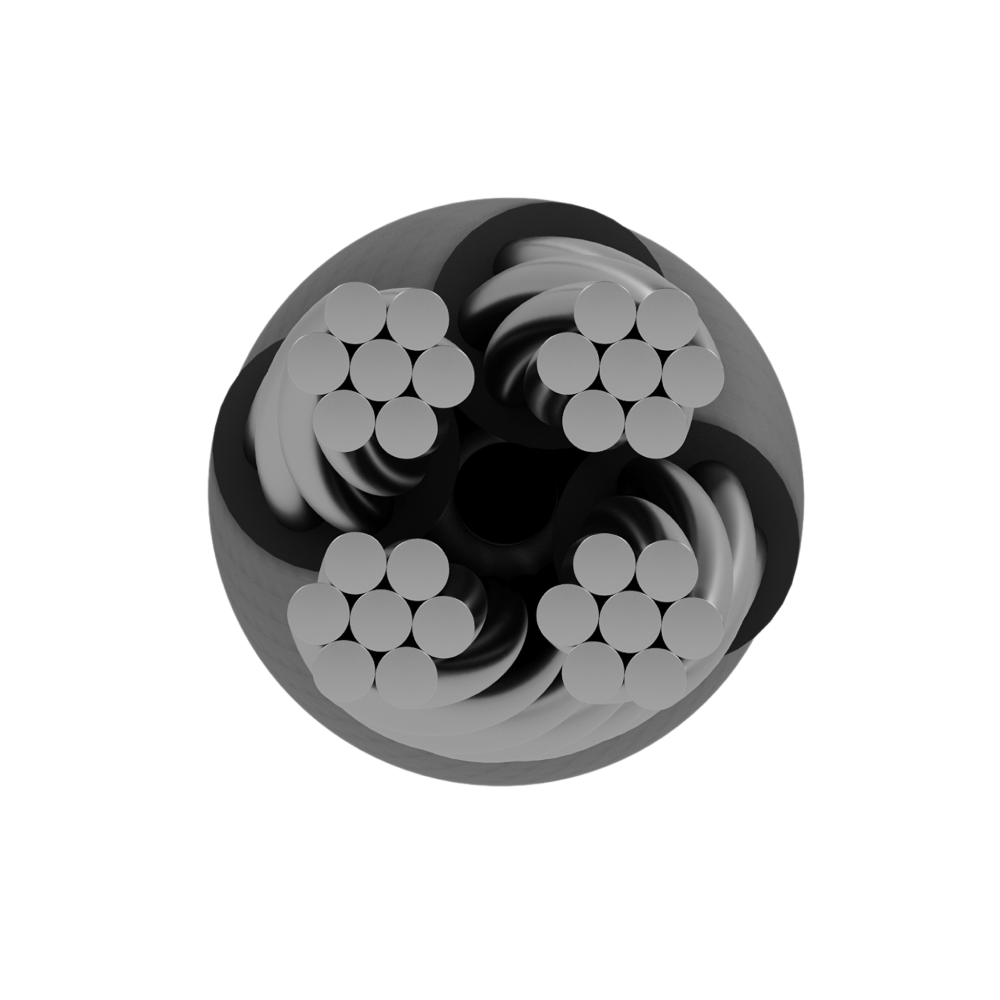

Construction

Conductor: Stranded Aluminium
Insulation: XLPE
Messenger Wire: Aluminium Alloy Hanger Wire
Configuration: Twisted Aerial Bundled Cable (ABC)
Standard: NFC-33-209
