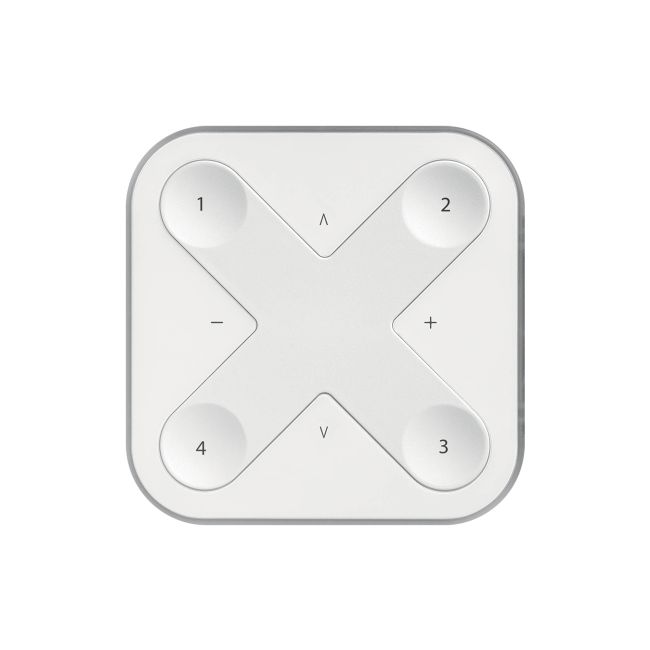

ARELUX BASICDIM Wireless User Interface WH, Casambi Wireless Switch Interface (60m Range, White)

ARELUX BASICDIM Wireless User Interface WH, Casambi Wireless Switch Interface (60m Range, White)

Control Systems
ARELUX

ARELUX offers professional LED control solutions including controllers, dimmers, and smart interfaces compatible with WiFi, RF, DMX, and DALI systems, suitable for residential and commercial lighting applications.

Read more
https://www.polytrade.global/web/image/product.template/31486/image_1920?unique=b1a3a96
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand ARELUX
Manufacturer Code BASICDIM WIRELESS USER INTERFACE WH
General Specifications
Destination Indoor
Usage Commercial
Working Temperature 0 >< +45 °C
Rated Input Voltage -
IP Rating IP20
Length 90 mm
Height 90.0 mm
Width 17.5 mm
Rated Output Power -

General Description & Application

DALI, 0-10V, 1-10V interface and low voltage "push-button" control system, for the light fitting with the input in constant voltage.

Product type: Controller

Housing/structure: The housing of the controller in ABS plastic.

Electrical gear: Blocks of connectors with screws, for maximum diameters of wires 2,5 mm². Dimming control by DALI, 0-10V, 1-10V, low voltage push-button or linear/logarithmic potentiometer of 220 kΩ connected at the 0-10/1-10V input. Selection of the control mode is realize by a double dipswitch. Output circuit PWM (Pulse Width Modulation) with 300 Hz frequency, only for resistive loads up to 12A maximum current. The maximum output voltage is that from the input less 0,5V.
