  2. GEWISS GWD9411B, Msxe 1250, Moulded Case Circuit Breakers with Electronic Release, Interlocked, Lsi, Front Terminals, 50Ka 3P 1250A 690V

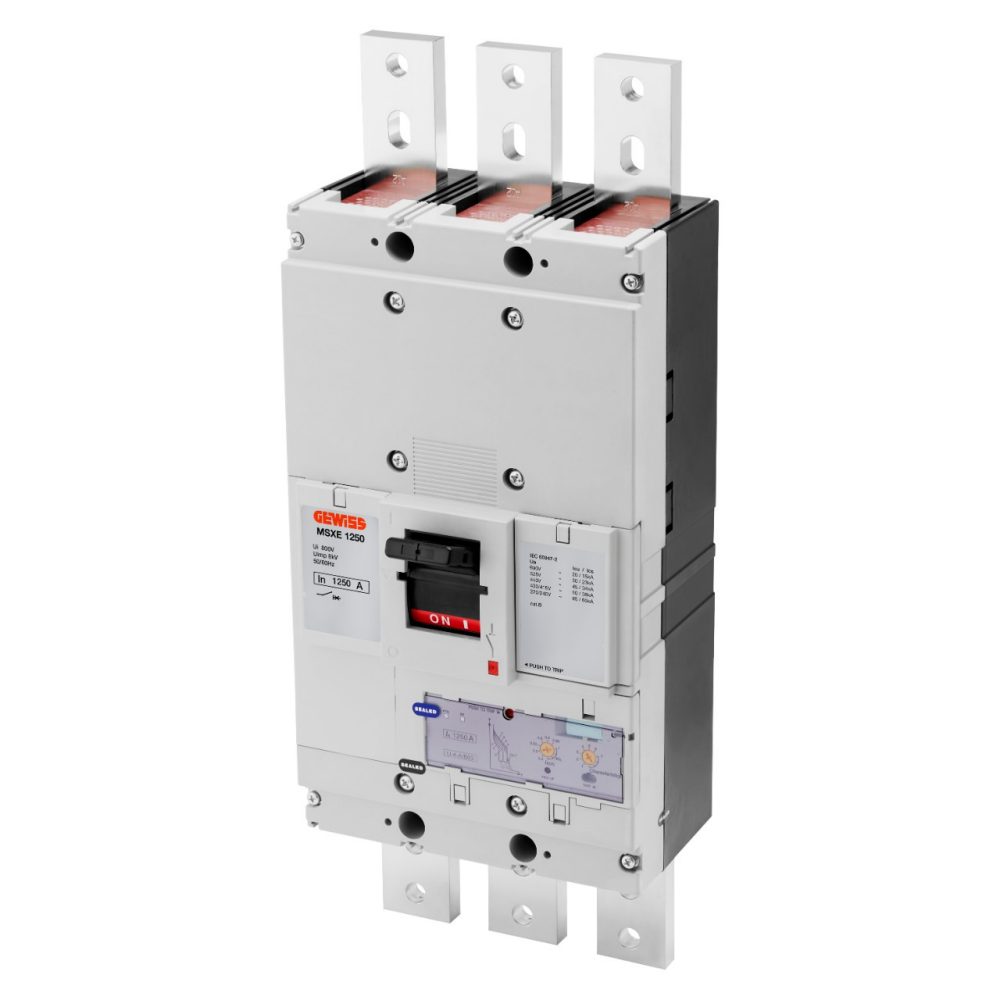

GEWISS GWD9411B, Msxe 1250, Moulded Case Circuit Breakers with Electronic Release, Interlocked, Lsi, Front Terminals, 50Ka 3P 1250A 690V

GEWISS GWD9411B, Msxe 1250, Moulded Case Circuit Breakers with Electronic Release, Interlocked, Lsi, Front Terminals, 50Ka 3P 1250A 690V

Circuit Breakers
GEWISS

Founded in 1970 on the revolutionary innovation of using technopolymer in electrical engineering, today GEWISS is the most important company in the electrotechnical sector with Italian capital.

Read more
https://www.polytrade.global/web/image/product.template/11519/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand GEWISS
Manufacturer Code GWD9411B
Circuit Breaker Type MCCB
Product Family MSX-Moulded case circuit breaker for power distribution
General Specifications
Number of poles 3P
Rated current 1250.0 A
Auxiliaries compatibility N/A
ReStart compatibility N/A
No. modules N/A
Rated residual operating current N/A mA
Rated frequency 50 / 60 Hz
Insulation voltage (Ui) 800.0 V
Rated impulse withstand voltage (Uimp) 8.0 kV
Overvoltage category IV
Operating Temperature -5 >< +65 °C
Stocking temperature -20 >< +65 °C
Electrical endurance N/A
Mechanical endurance N/A
Curve N/A
Energy limiting class N/A
Standards IEC/EN 60947-2

General Description & Application


The moulded case circuit breakers MSX range is made up of circuit breakers with thermo-magnetic release, circuit breakers with thermo-magnetic release and Overcurrent Protection, circuit breakers with electronic release and switch disconnectors.
