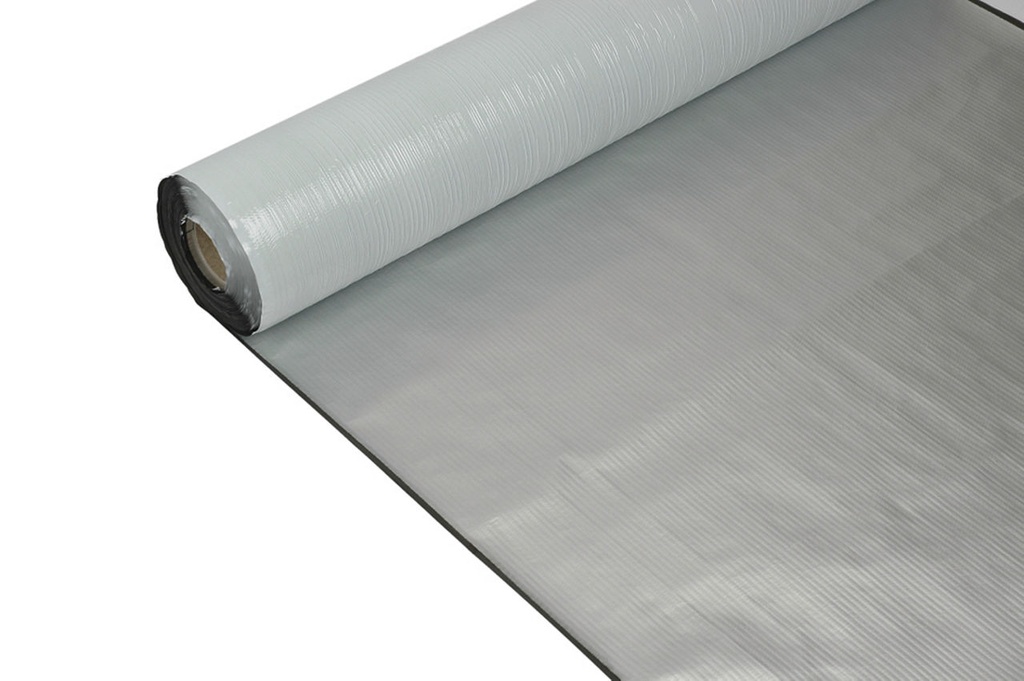

S-Vap 5000 E SA, Self-adhesive Polyethylene Vapour Barrier and Carrier Membrane, Exterior, 1.08 M X 30 M

S-Vap 5000 E SA, Self-adhesive Polyethylene Vapour Barrier and Carrier Membrane, Exterior, 1.08 M X 30 M

Waterproofing
SIKA

Sika is a global leader in specialty chemicals for the construction and industrial sectors. The company develops and supplies innovative products and systems for bonding, sealing, damping, reinforcing, and protecting structures. With a strong focus on sustainability and performance, Sika serves a wide range of applications including concrete production, waterproofing, roofing, flooring, and structural strengthening.

Read more
https://www.polytrade.global/web/image/product.template/18429/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
General Specifications
Packaging 1.08 m x 30 m
Width 2200.0 mm
Length 30000.0 m
Weight 19.0 Kg
Usage S-Vap 5000 E SA may only be used by experienced professionals. As a vapour barrier over most common roof deck types:Concrete / cementitiousMetalPlywood panels, timber boards, oriented strand board (OSB)As a carrier layer for use with approved liquid applied membranes. Temporary waterproofing layer for up to 4 weeks
Chemical Base Polyethylene vapour barrier membrane
Usage Area Exterior
Color Surface: Aluminium foil with PET film
Storage Conditions Product must be stored in original unopened and undamaged sealed packaging in dry conditions and temperatures between + 5 °C and + 35 °C. Store in a horizontal position. Do not stack pallets of the rolls on top of each other, or under pallets of any other materials during transport or storage. Always refer to packaging
Density 600 g/m² (±100)
Consumption 200– 400 g/m

Self-adhesive vapour barrier and carrier membrane

S-Vap 5000 E SA is a multi-layered, self-adhesive vapour barrier manufactured from polymer modified bitumen with a glass-fibre mat reinforcement and an aluminium foil top layer.

  • Ease and speed of installation from self-adhesive properties
  • Can be used in a fully adhered roof build-up. No additional fasteners required for securing the thermal insulation boards to the structural deck
  • Temporary waterproof top layer for up to 4 weeks, without the requirement for additional weight/ballast and/or mechanical fastenings
  • High self adhesion strength allows high wind design loads from 2,4 kN/m 2 to 2,8 kN/m 2
Usage
S-Vap 5000 E SA may only be used by experienced professionals. As a vapour barrier over most common roof deck types:
  • Concrete / cementitious
  • Metal
  • Plywood panels, timber boards, oriented strand board (OSB)
As a carrier layer for use with approved liquid applied membranes. Temporary waterproofing layer for up to 4 weeks.
Advantages
  • Ease and speed of installation from self-adhesive properties
  • Can be used in a fully adhered roof build-up. No additional fasteners required for securing the thermal insulation boards to the structural deck
  • Temporary waterproof top layer for up to 4 weeks, without the requirement for additional weight/ballast and/or mechanical fastenings
  • High self adhesion strength allows high wind design loads from 2,4 kN/m2 to 2,8 kN/m2

  • Provides an air tight layer
  • High tear resistance to foot traffic during roof build up activities
  • High water vapour resistance makes it suitable in combination with all types of membranes
  • Accommodates a wide range of roof system, deck types and substrate combinations
  • Can be bonded onto flashings, inclined or vertical surfaces
Packaging
Roll size

Length30,00 m
Width1,08 m
Weight19,00 kg

Refer to current price list for packaging variations
Colour

Surface: Aluminium foil with PET film
Technical Information
Resistance to Impact

Pass (procedure A 150 mm)

(EN 12691)

Tensile Strength

≥ 500 N/50 mm

(EN 12311-1)

Tear Strength

≥ 100 N

(EN 12310-1)

Joint Peel Resistance

≥ 50 N/50 mm

(EN 12316-2)

Joint Shear Resistance

≥ 400 N/50 mm

(EN 12317-2)

Flexibility at low temperature

-20 °C

(EN 495-5)

Reaction to Fire

Class E

(EN ISO 11925-2: 2002)

(EN 13501)




Resistance to Alkalinity

Pass

(EN 1847)

Artificial Ageing

Pass

(EN 1296)

(EN 1931)




Water Tightness

Pass

(EN 1928)
