S-Drain PVC, Vertical PVC Drains

Name: S-Drain PVC, Vertical PVC Drains
Brand: SIKA
SKU: PTG255.00149
Price: 312.00 RON
Availability: InStock

Category: Waterproofing

SIKA

Sika is a global leader in specialty chemicals for the construction and industrial sectors. The company develops and supplies innovative products and systems for bonding, sealing, damping, reinforcing, and protecting structures. With a strong focus on sustainability and performance, Sika serves a wide range of applications including concrete production, waterproofing, roofing, flooring, and structural strengthening.

377.52 lei Tax Included
377.52 RON

This combination does not exist.

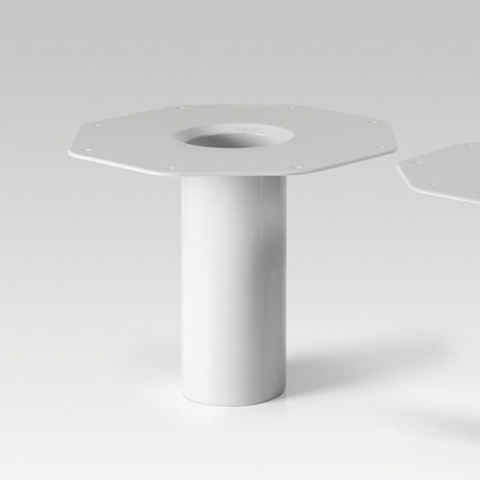

Prefabricated PVC roof drain

S-Drain PVC is a PVC prefabricated injection moulded rainwater outlet for flat roofs used with Sika roof sheet membranes which can be heat welded onto the drain.

Usage

Rainwater outlet for use with Sarnafil® and Sikaplan® sheet membranes.

Advantages

Resistant to UV exposure
Membrane can be welded directly to the base plate
Ease of application
Heat weldable
Recyclable

Packaging

Depending on the order quantity and product size, the products are packaged on pallets or in cartons.

Colour

Surface	Smooth
Colour	Light grey (nearest RAL 7047)

Typical Product Data

APPROVALS / STANDARDS		- Complies with DIN EN 1253 - Gullies for buildings - Roof outlet testing DIN EN 1253-3,Sarnafil G/S,TUV,Rheinland,Report No.57216040-50
Chemical Base		Polyvinyl chloride (PVC)
Shelf Life		5 years from date of production
Storage Conditions		The product must be stored in original, unopened and undamaged sealed packaging in dry conditions at temperatures between +5 °C (+41 °F) and +30 °C (+86 °F). Always refer to packaging. Do not stack pallets of rolls or any other material on top during transport or storage.
Dimensions		Spigot Flow rates outside / length Base plate Depth of water mm mm EN 1253* 55 mm (2.17 in) 65 mm (2.56 in) 40 × 450 250 × 250 squared 2,65 l/s 2,95 l/s 3,05 l/s 50 × 450 250 × 250 squared 3,10 l/s 5,20 l/s 5,30 l/s 56 × 300 300 × 300 octagonal 3,90 l/s 6,65 l/s 6,80 l/s 63 × 300 300 × 300 octagonal 3,90 l/s 6,65 l/s 6,80 l/s 75 × 300 300 × 300 octagonal 4,60 l/s 9,50 l/s 11,.25 l/s 90 × 300 330 × 330 octagonal 5,40 l/s 9,50 l/s 11,75 l/s 95 × 300 330 × 330 octagonal 5,40 l/s 9,50 l/s 11,75 l/s 110 × 300 330 × 330 octagonal 5,50 l/s 9,75 l/s 12,75 l/s 125 × 300 380 × 380 octagonal 9,25 l/s 11,50 l/s 14,75 l/s 140 × 300 380 × 380 octagonal 9,25 l/s 11,50 l/s 14,75 l/s 160 × 300 380 × 380 octagonal 10,00 l/s 13,25 l/s 16,90 l/s * EN 1253: Measured with S-Leafguard (Art. No. 111185) Depth of water: Until Ø 110 mm (4.33 in): 35 mm (1.38 in), from Ø 125 mm (4.92 in): 45 mm (1.77 in)
Thickness		4,0 mm (0.157 in)
System Structure		The following system accessory must be used: - S-Leafguard (Art. no. 111185) Compatible products: - Sarnafil® G 410-types - Sarnafil® G 476-types - Sarnafil® S 327-types - Sikaplan® G / VG / VGWT / S / SG / SGmA - Sikaplan® SGK (with special connection strips)

Application

Ambient Air Temperature

-20 °C (68 °F) min. / +60 °C (+140 °F) max.

Substrate Temperature

-30 °C (86 °F) min. / +60 °C (+140 °F) max.

The above design is only a sample of the options available, for reference purposes only. Our policy of continuous improvement may result in a change of specifications without notice. If any discrepencies might be between the data sheet values and standards, we reserve the rights to make technical changes. Our company will not be held responsible, as all or any of pictures, drawings, weights and dimensions details or other elements in this document are only indicative and must not be considered contractual. Contact our sales team for other specifications or custom made products.

Preview TDS

Download TDS

General Specifications
Packaging	Pallet or carton
Width	- mm
Length	- m
Weight	- Kg
Usage	Rainwater outlet for use with Sarnafil® and Sikaplan® sheet membranes
Chemical Base	Polyvinyl chloride (PVC)
Usage Area	-
Color	Surface Smooth Colour Light grey (nearest RAL 7047)
Storage Conditions	+5…+30 °C, dry, original packaging
Density	-
Consumption	-

Prefabricated PVC roof drain

S-Drain PVC is a PVC prefabricated injection moulded rainwater outlet for flat roofs used with Sika roof sheet membranes which can be heat welded onto the drain.

Usage

Rainwater outlet for use with Sarnafil® and Sikaplan® sheet membranes.

Advantages

Resistant to UV exposure
Membrane can be welded directly to the base plate
Ease of application
Heat weldable
Recyclable

Packaging

Depending on the order quantity and product size, the products are packaged on pallets or in cartons.

Colour

Surface	Smooth
Colour	Light grey (nearest RAL 7047)

Typical Product Data

APPROVALS / STANDARDS		- Complies with DIN EN 1253 - Gullies for buildings - Roof outlet testing DIN EN 1253-3,Sarnafil G/S,TUV,Rheinland,Report No.57216040-50
Chemical Base		Polyvinyl chloride (PVC)
Shelf Life		5 years from date of production
Storage Conditions		The product must be stored in original, unopened and undamaged sealed packaging in dry conditions at temperatures between +5 °C (+41 °F) and +30 °C (+86 °F). Always refer to packaging. Do not stack pallets of rolls or any other material on top during transport or storage.
Dimensions		Spigot Flow rates outside / length Base plate Depth of water mm mm EN 1253* 55 mm (2.17 in) 65 mm (2.56 in) 40 × 450 250 × 250 squared 2,65 l/s 2,95 l/s 3,05 l/s 50 × 450 250 × 250 squared 3,10 l/s 5,20 l/s 5,30 l/s 56 × 300 300 × 300 octagonal 3,90 l/s 6,65 l/s 6,80 l/s 63 × 300 300 × 300 octagonal 3,90 l/s 6,65 l/s 6,80 l/s 75 × 300 300 × 300 octagonal 4,60 l/s 9,50 l/s 11,.25 l/s 90 × 300 330 × 330 octagonal 5,40 l/s 9,50 l/s 11,75 l/s 95 × 300 330 × 330 octagonal 5,40 l/s 9,50 l/s 11,75 l/s 110 × 300 330 × 330 octagonal 5,50 l/s 9,75 l/s 12,75 l/s 125 × 300 380 × 380 octagonal 9,25 l/s 11,50 l/s 14,75 l/s 140 × 300 380 × 380 octagonal 9,25 l/s 11,50 l/s 14,75 l/s 160 × 300 380 × 380 octagonal 10,00 l/s 13,25 l/s 16,90 l/s * EN 1253: Measured with S-Leafguard (Art. No. 111185) Depth of water: Until Ø 110 mm (4.33 in): 35 mm (1.38 in), from Ø 125 mm (4.92 in): 45 mm (1.77 in)
Thickness		4,0 mm (0.157 in)
System Structure		The following system accessory must be used: - S-Leafguard (Art. no. 111185) Compatible products: - Sarnafil® G 410-types - Sarnafil® G 476-types - Sarnafil® S 327-types - Sikaplan® G / VG / VGWT / S / SG / SGmA - Sikaplan® SGK (with special connection strips)

Application

Ambient Air Temperature

-20 °C (68 °F) min. / +60 °C (+140 °F) max.

Substrate Temperature

-30 °C (86 °F) min. / +60 °C (+140 °F) max.
