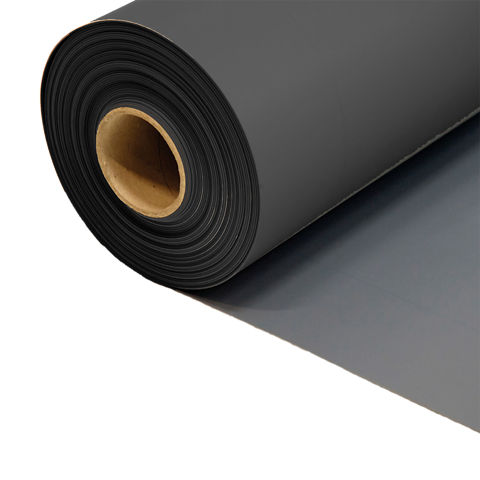

Sikaplan® - 12G, PVC Membrane for Waterproofing, 2m x 20m

Sikaplan® - 12G, PVC Membrane for Waterproofing, 2m x 20m

Waterproofing
SIKA

Sika is a global leader in specialty chemicals for the construction and industrial sectors. The company develops and supplies innovative products and systems for bonding, sealing, damping, reinforcing, and protecting structures. With a strong focus on sustainability and performance, Sika serves a wide range of applications including concrete production, waterproofing, roofing, flooring, and structural strengthening.

Read more
https://www.polytrade.global/web/image/product.template/40806/image_1920?unique=f2e1e15

6,543.68 lei Tax Included
6543.68 RON

Not Available For Sale

You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
General Specifications
Packaging Roll
Width 1.54 m / 2.00 m (-0.5 % / +1 %) mm
Length 20.00 m (-0% / +5 %) m
Weight 1.5 kg/m² (-5 / +10 %) Kg
Usage Membrane for mechanically fixed roof systems
Chemical Base Polyvinyl Chloride (PVC)
Usage Area -
Color Matt; 4 top colours (~RAL 7047/7011/6021/9016); dark grey underside
Storage Conditions +5…+30 °C, dry, original packaging
Density -
Consumption -

Mechanically fixed polymeric PVC membrane for roof waterproofing

Sikaplan® G-12 (thickness 1.2 mm (0.0472 in)) is a polyester-reinforced poly vinyl chloride (PVC) multi-layer synthetic membrane for roof waterproofing containing UV stabilizers and flame retardants in accordance with EN 13956. It is heat-weldable with hot air, designed for direct exposure and designed for use in all global climates.

Use

Sikaplan® G-12 can only be used by experienced professionals. Membrane for waterproofing at:

  • Roof systems with mechanical fixing
Advantages
  • Resistant to UV exposure
  • Resistant to permanent exposure to wind
  • Resistance to the action of environmental factors
  • Heat-sealable with hot air
  • No open flame equipment required
  • High water vapor permeability
  • recycled
pack

Standard rolls are not individually wrapped.

Roll length:20.00 m (65.6 ft) 20.00 m (65.6 ft) 20.00 m (65.6 ft) 20.00 m (65.6 ft)
Roll width:0.77 m (2.53 ft) 1.00 m (3.28 ft) 1.54 m 2.00 m (6.56 ft)
Roll weight:23.10 kg (50.9 lb) 30.00 kg (66.1 lb) 46.20 kg (102 lb) 60.00 kg (132 lb)

See the price list for packaging options.

Color
Surface:matte
Colors:
Top layer:Light grey (~RAL 7047) Lead grey (~RAL 7011) Light green (~RAL 6021) Traffic white (~RAL 9016)
Bottom layer:Dark grey

On request, the membranes can also be delivered in other colors of the top layer, depending on the minimum order quantities.

Typical technical data
SUSTAINABILITY

- LEED v4 SSc 5 compliance (Option 1): Heat island reduction - Roof (traffic white only)
- Compliance with LEED v4 MRc 2 (Option 1): Declaration and optimization of building products - Environmental declarations of products
- Compliance with LEED v4 MRc 3 (Option 2): Declaration and optimization of building products - Origin of raw materials

APPROVALS / CERTIFICATIONS

- CE marking and Declaration of Performance in accordance with EN 13956 - Polymeric membrane for waterproofing roofs
- Approved FM, Certificate of Conformity, No. Sikaplan® G approval identification number 4D3A9.AM

Product statement

EN 13956 - Polymeric membranes for roof waterproofing

Chemical base

Polyvinyl Chloride (PVC)

Validity period

5 years from the date of manufacture.

Storage conditions

The product must be stored in its original packaging, unopened, sealed and undamaged, in dry conditions and temperatures between + 5 °C (+ 41 °F) and + 30 °C (+ 86 °F). Store in a horizontal position. Do not stack roller pallets on top of each other or under other pallets with other materials during transport or storage. Always refer to the packaging.

Visible defects

According to (EN 1850-2)

Length

20.00 m (65.6 ft) (-0% / +5 %) (EN 1848-2)

Width

1.54 m (5.05 ft) / 2.00 m (6.56 ft) (-0.5 % / +1 %) (EN 1848-2)

Effective thickness

1.2 mm (0.0472 in) (-5 % / +10 %) (EN 1849-2)

Linearity

≤ 30 mm (1.18 in) (EN 1848-2)

Flatness

≤ 10 mm (0.394 in) (EN 1848-2)

Mass per unit area

1.5 kg/m² (-5 / +10 %) (EN 1849-2)

System structure

The following products should be considered for use depending on the roof design:
▪ Sikaplan®-18 D (non-reinforced membrane for details) ▪ Corner mouldings, prefabricated corner and pipe parts ▪ Sika® Trocal® Metal Sheet Type S (sheet metal) ▪ Sika® Trocal Cleaner-2000 (cleaner and activator before heat welding) ▪ Sika® Trocal Cleaner L-100 (cleaner) ▪ Sika® Trocal C-733 (contact adhesive)
A wide range of accessories is available, e.g. prefabricated parts, roof drains, overflows, traffic pads and decorative profiles.

Compatibility

It is not compatible in direct contact with bitumen, tar, grease, oil, materials containing solvents and other plastics, for example expanded polystyrene (EPS), extruded polystyrene (XPS), polyurethane (PUR), polyisocyanurate (PIR) or phenolic foam (PF). These materials could adversely affect the properties of the product.

Impact resistance

rigid substrate ≥ 300 mm (11.8 in)
soft substrate ≥ 600 mm (23.6 in)

Hail resistance

rigid substrate ≥ 17 m/s
flexible substrate ≥ 20 m/s

Tensile strength

longitudinal (md) 1) ≥ 1000 N/50 mm (1.97 in)
transverse (cmd) 2) ≥ 900 N/50 mm (1.97 in)
1) md = longitudinal direction
2) cmd = transverse direction

Elongation

longitudinal (md) 1) ≥ 15 %
transverse (cmd) 2) ≥ 15 %
1) md = longitudinal direction
2) cmd = transverse direction

Tear resistance

longitudinal (md) 1) ≥ 150 N
transverse (cmd) 2) ≥ 150 N
1) md = longitudinal direction
2) cmd = transverse direction

Peel resistance of the joint

Breaking mode: C, without breaking the joint (EN 12316-2)

Shear strength of the joint

≥ 600 N/50 mm (1.97 in) (EN 12317-2)

Dimensional stability

longitudinal (md) 1) ≤ |0.5| %
transverse (cmd) 2) ≤ |0.5| %
1) md = longitudinal direction
2) cmd = transverse direction

Bending at low temperatures

≤ -25 °C (77 °F) (EN 495-5)

Impermeability

According to (EN 1928)

Effect of liquid chemicals including water

Resistant to many chemicals. Contact the Sika Technical Department for further information. (EN 1847)

UV resistance

Compliant (> 5000 h / degrees 0) (EN 1297)

External fire performance

B ROOF (t1) < 20° B ROOF (t3) < 10° (EN 13501-5)

Reaction to fire

Class E (EN ISO 11925-2, classification to EN 13501-1)

Application
Ambient air temperature

-15 °C (59 °F) min. / +60 °C (+140 °F) max.

Support temperature

-25 °C (77 °F) min. / +60 °C (+140 °F) max.

EQUIPMENT

Thermal welding of overlaps

Electric hot air welding equipment, such as manual hot air welding equipment and pressure rollers or automatic hot air welding machines with a controlled hot air temperature of at least 600 ° C (1112 °F). Recommended equipment type:

  • Manual: Leister Triac
  • Automata: Leister Varimat or similar
  • Semi-automatic: Leister Triac Drive
SUPPORT QUALITY

The surface of the substrate must be even, smooth and free of sharp projections or burrs, etc. Sikaplan® G-12 must be separated from any incompatible substrates/materials by an effective separation layer to prevent accelerated ageing. The substrate must be membrane compatible, solvent resistant, clean, dry and free from dust and grease. Metal surfaces must be degreased with Sika® Trocal Cleaner-2000 before applying the adhesive.

APPLICATION

Application procedure

Reference should be made to other documents as appropriate such as the relevant application procedure, application manual and installation or work instructions.

Fastening method - General

The waterproofing membrane is installed by loose laying (without stretching or tensioning it) with mechanical fixing at the overlap between the membranes or intermediate fixings. The overlaps are heat-welded using special equipment with hot air.

Fixing method - Point fixing

Sikaplan® G-12 must always be installed perpendicular to the folds of the sheet. Sikaplan® G-12 is fixed with fasteners and plates/tubes along the marked line, 10 mm (0.394 in) from the edge of the membrane. Sikaplan® G-12 overlaps 100 mm (3.94 in). The distance between fasteners is in accordance with Sika's project-specific calculations. At attics and penetrations, the membrane must be fixed with fasteners and additional plates/tubes. Fasteners and plates/tubes protect the Sikaplan® G-12 membrane against tearing and peeling caused by wind uplift.

Thermowelding method

Overlapping edges must be welded with electric hot air welding equipment. Welding parameters, including temperature, machine speed, air flow, pressure and welding machine settings must be evaluated, adapted and checked on site according to the type of equipment and climatic conditions, before starting heat welding.

Welding testing

Welds should be mechanically tested with a screwdriver (rounded edges) to ensure weld integrity / completion. Any imperfections must be repaired by hot air welding.
