| SUSTAINABILITY | | - Conformity with LEED v4 SSc 5 (Option 1): Heat Island Reduction - Roof (only traffic white)
- Conformity with LEED v4 MRc 2 (Option 1): Conformity with LEED v4 MRc 2 (Option 1): Building Product Disclosure and Optimization – Environmental Product Declarations
- Conformity with LEED v4 MRc 3 (Option 2): Building Product Disclosure and Optimization - Sourcing of Raw Materials
- Conformity with LEED v4 MRc 4 (Option 2): Building Product Disclosure and Optimization - Material Ingredients
- Conformity with LEED v2009 SSc 7.2 (Option 1): Heat Island Effect - Roof (only traffic white)
- Conformity with LEED v2009 MRc 4 (Option 2): Recycled Content |

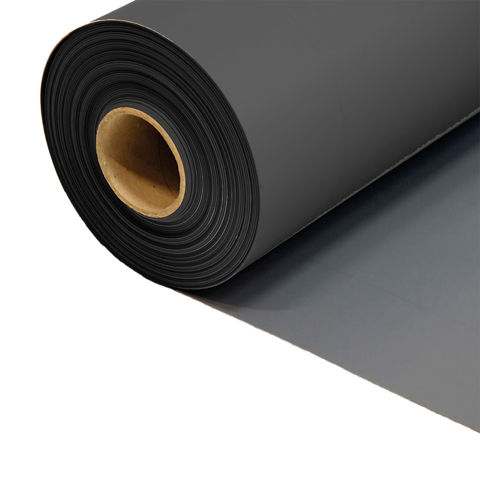

| APPROVALS / CERTIFICATES | | Sikaplan® TM-15 is designed and manufactured to meet the most international recognised standards.
- Polymeric sheets for roof waterproofing according to EN 13956, certified by notified body 1213-CPD-4855 and provided with the CE-mark.
- Reaction to fire according to EN 13501-1.
- External fire performance tested according to EN 1187 and classified according to EN 13501-5: B ROOF (t1).
- Factory Mutual (FM) Approval Class: 4470. |
| Shelf life | | 5 years from date of production in unopened, undamaged and original packaging. |
| Storage conditions | | Rolls must be stored between +5 °C (+41 °F) and +30 °C (+86 °F) in a horizontal position on pallet, protected from direct sunlight, rain and snow. Do not stack pallets of rolls or any other material during transport or storage. |
| Product Declaration | | EN 13956 |
| Visible Defects | | Pass (EN 1850-2) |
| Length | | 20 m (65.6 ft) (-0 % / +5 %) (EN 1848-2) |
| Width | | 2 m (6.56 ft) (-0.5 % / +1 %) (EN 1848-2) |
| Effective Thickness | | 1.50 mm (0.0591 in) (-5 % / +10 %) (EN 1849-2) |
| Straightness | | ≤ 30 mm (1.18 in) (EN 1848-2) |
| Flatness | | ≤ 10 mm (0.394 in) (EN 1848-2) |
| Mass per unit area | | 1.65 kg/m² (-5 % / +10 %) (EN 1849-2) |
| System Structure | | The following accessories shall be used: Sarnafil® T 66-15 D Sheet for detailing Sarnafil® TS 77 strips Sarnafil® T Metal Sheet Sarnafil® T Welding Cord
Sarnabar® / Sarnafast® Sarnafil® T Prep Sarnacol® T 660 Sarnafil® T Clean |
| Compatibility | | Sikaplan® TM-15 may be installed on all thermal insulations and levelling layers suitable for roofing. No additional separation layer is required. Sikaplan® TM-15 is suitable for installation directly on top of existing, carefully cleaned, levelled bituminous roofing, example: re-roofing over old flat roofs. Colour changes in membrane surface may occur in case of direct contact with bitumen. |
| Resistance to Impact | | Hard substrate ≥ 700 mm (27.6 in)
Soft substrate ≥ 900 mm (35.4 in) |
| Hail Resistance | | Rigid substrate ≥ 22 m/s
Flexible substrate ≥ 30 m/s |
| Resistance to Static Load | | Soft substrate ≥ 20 kg (44.1 lb)
Rigid substrate ≥ 20 kg (44.1 lb) |
| Tensile Strength | | Longitudinal (md) 1) ≥ 1100 N/50 mm (1.97 in)
Transversal (cmd) 2) ≥ 1100 N/50 mm (1.97 in)
1) md = machine direction 2) cmd = cross machine direction |
| Elongation | | Longitudinal (md) 1) ≥ 13 %
Transversal (cmd) 2) ≥ 13 %
1) md = machine direction 2) cmd = cross machine direction |
| Dimensional Stability | | Longitudinal (md) 1) ≤ 0.5 %
Transversal (cmd) 2) ≤ 0.2 %
1) md = machine direction 2) cmd = cross machine direction |
| Tear Strength | | Longitudinal (md) 1) ≥ 300 N
Transversal (cmd) 2) ≥ 300 N
1) md = machine direction 2) cmd = cross machine direction |
| Joint Peel Resistance | | No failure of the joint (EN 12316-2) |
| Joint Shear Resistance | | ≥ 500 N/50 mm (1.97 in) (EN 12317-2) |
| Foldability at Low Temperature | | ≤ -25°C (77 °F) (EN 495-5) |
| External Fire Performance | | B ROOF (t1) < 20° (EN 1187) |
| Reaction to Fire | | Class E (EN ISO 11925-2, classification to EN 13501-1) |
| Effect of Liquid Chemicals, Including Water | | On request (EN 1847) |
| Exposure to Bitumen | | Pass 3) (EN 1548)
3) Sikaplan® TM is compatible to old bitumen |
| Resistance to UV Exposure | | Pass (> 5000 h / grade 0) (EN 1297) |
| Watertightness | | Pass (EN 1928) |
| Solar Reflectance Index | | Colour Initial 3 years aged Test Institute
RAL 9016 100 - CRRC
CRRC tested products are listed in Cool Roof Rating Council (CRRC) product data base. |
| USGBC LEED Rating | | Colour Initial 3 years aged
RAL 9016 SRI > 82 -
Conform on the minimum requirements of LEED V4 SS credit 5 option 1 Heat Island reduction - Roof. |
