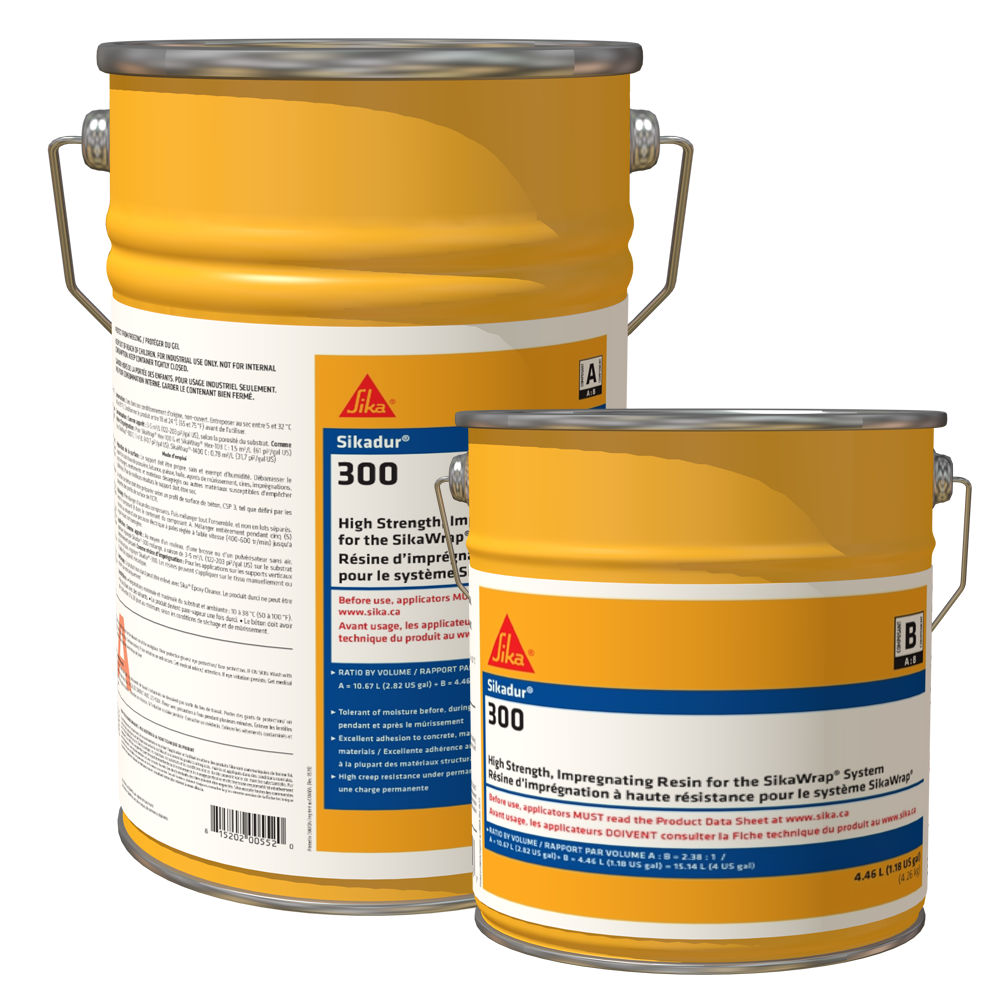

Epoxy impregnating / laminating resin for SikaWrap structural strengthening fabrics Sikadur-300 is a 2-part, epoxy based impregnating / laminating resin for SikaWrap structural strengthening fabrics. - Easy to mix.
- Application by impregnation roller.
- Formulated for manual or mechanical saturation methods.
- Good adhesion to many substrates.
- High mechanical properties.
- Extra long pot-life.
|
Usage - As an impregnating / laminating resin for the SikaWrap fabric reinforcement wet application method.
- As a substrate primer for the wet application method.
Advantages - Easy to mix.
- Application by impregnation roller.
- Formulated for manual or mechanical saturation methods.
- Good adhesion to many substrates.
- High mechanical properties.
- Extra long pot-life.
Packaging | Part A | 22,305 kg pre-batched unit | | Part B | 7,695 kg pre-batched unit | | Bulk containers | Refer to current price list |
Refer to current price list for packaging variations Colour | Part A | ~amber liquid | | Part B | ~pale yellow liquid | | Parts A + B mixed | ~light-yellow liquid |
|
Technical Information Flexural E-Modulus | ~2800 N/mm2 (7 days at +23 °C) | (DIN EN 1465) |
Tensile Strength | ~45 N/mm2 (7 days at +23 °C) | (ISO 527) |
Tensile adhesion strength | Concrete fracture (> 4 N/mm2) on sandblasted substrate | (EN ISO 4624) |
Coefficient of Thermal Expansion | ~6,0 × 10−5 (±0,2 × 10–5) 1/K | (EN 1770) |
(linear expansion between -20 °C and +40 °C)
Service Temperature –40 °C to +45 °C
Glass transition temperature | Curing time | Curing temperature | TG | | 30 days | +30 °C | +53 °C |
Heat deflection temperature | Curing time | Curing temperature | HDT | | 7 days | +15 °C | +43 °C | | 7 days | +23 °C | +49 °C | | 3 days | +40 °C | +60 °C | | 7 days | +40 °C | +66 °C |
Resistant to continuous exposure +45 °C.
|
Application Information Mixing Ratio Part A : Part B = 100 : 34,5 by weight Ambient Air Temperature +15 °C min. / +40 °C max. Dew Point Beware of condensation.
The substrate and uncured applied resin must be at least +3 °C above dew point to reduce the risk of condensation or blooming on the resin surface. Substrate Temperature +15 °C min. / +40 °C max. Substrate Moisture Content ≤ 4 % parts by weight The following test methods can be used: Sika-Tramex meter,
CM-measurement or Oven-dry-method. No rising moisture according to ASTM (Polyethylene-sheet). Pot Life | Temperature | Pot-life | Open time | | +15 °C | ~3 hours | ~6 hours | | +23 °C | - | ~4 hours | | +40 °C | ~60 minutes | ~90 minutes |
The pot-life begins when Parts A+B are mixed. It is shorter at high temperatures and longer at low temperatures. The greater the quantity mixed, the shorter the pot-life. To obtain longer workability at high temperatures, the mixed adhesive may be divided into smaller quantities. Another method is to chill Parts A+B before mixing (although not below +5 °C). |
