| Sikadur-330 is a 2-component, thixotropic, epoxy based impregnating resin and adhesive. - Easily mixed and applied by trowel and impregnation roller.
- Manufactured for manual saturation methods.
- Excellent application behaviour to vertical and overhead surfaces.
- Good adhesion to many substrates.
- High mechanical properties.
- No separate primer required.
|
Usage Sikadur-330 is used as: - Impregnation resin for SikaWrap fabric reinforcement for the dry application method.
- Primer resin for the wet application system.
- Structural adhesive for bonding Sika CarboDur plates into slits.
Advantages - Easily mixed and applied by trowel and impregnation roller.
- Manufactured for manual saturation methods.
- Excellent application behaviour to vertical and overhead surfaces.
- Good adhesion to many substrates.
- High mechanical properties.
- No separate primer required.

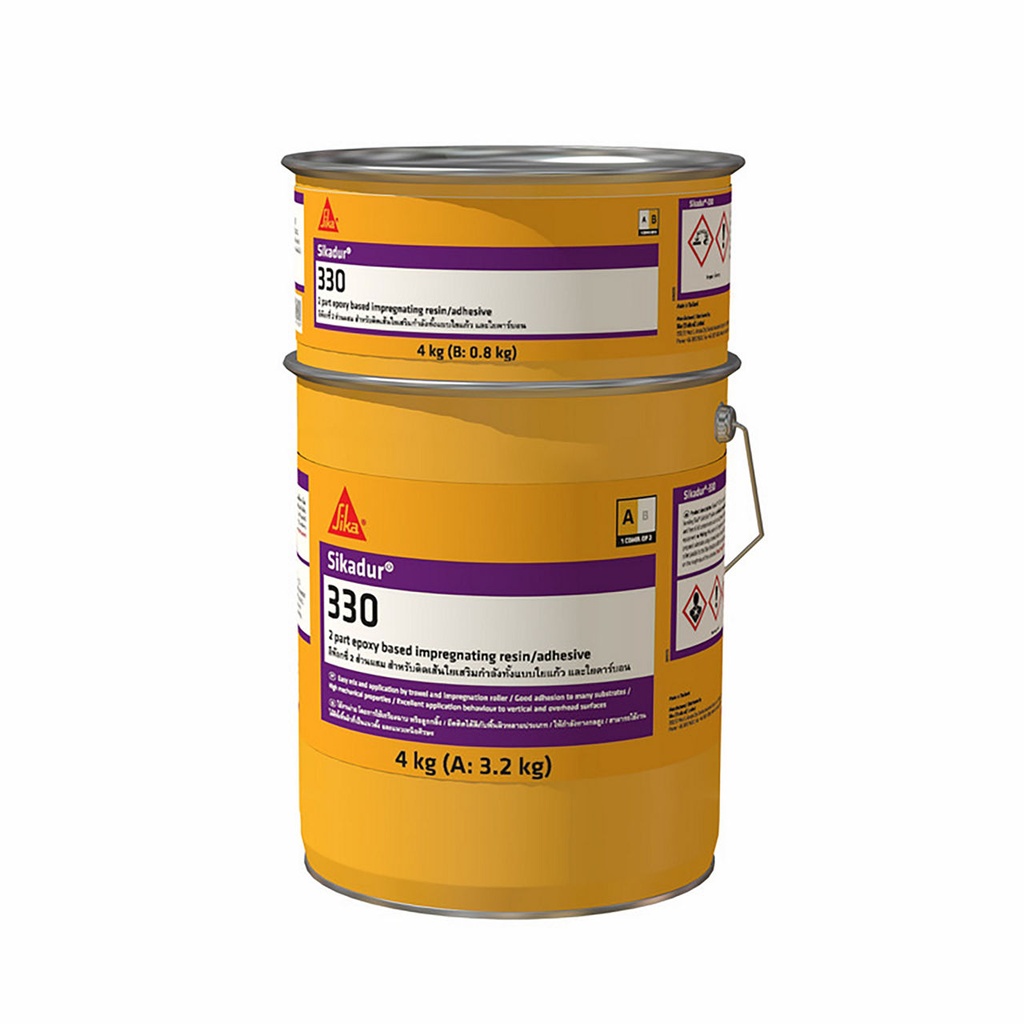

Packaging | 5 kg (A+B) | Pre-batched unit |
Colour Component A: white paste
Component B: grey paste
Components A + B mixed: light grey paste |
Technical Information Flexural E-Modulus | ~ 3 800 N/mm2 (7 days at +23 °C) | (DIN EN 1465) |
Tensile Strength | ~ 30 N/mm2 (7 days at +23°C) | (ISO 527) |
Tensile adhesion strength | Concrete fracture (> 4 N/mm2) on sandblasted substrate | (EN ISO 4624) |
Coefficient of Thermal Expansion | 4.5 × 10−5 1/K (Temperature range −10 °C to +40 °C) | (EN 1770) |
Service Temperature –40 °C to +45 °C
Glass transition temperature Curing time | Curing temperature | TG | 30 days | +30 °C | +58 °C |
Heat deflection temperature Curing time | Curing temperature | HDT | | 7 days | +10 °C | +36 °C | | 7 days | +23 °C | +47 °C | | 7 days | +35 °C | +53 °C |
Resistant to continuous exposure up to +45 °C.
|
Application Information Mixing Ratio Component A : Component B = 4 : 1 by weight
When using bulk material, the exact mixing ratio must be safeguarded by accurately weighing and dosing each component. Ambient Air Temperature +10 °C min. / +35 °C max. Dew Point Beware of condensation.
Substrate temperature during application must be at least 3 °C above dew point. Substrate Temperature +10 °C min. / +35 °C max. Substrate Moisture Content < 4 % pbw Pot Life | Temperature | Pot-life | Open time | | +10 °C | ~90 minutes (5 kg) | ~90 minutes | | +23 °C | ~60 minutes (5 kg) | ~60 minutes | | +35 °C | ~30 minutes (5 kg) | ~30 minutes |
The pot-life begins when the resin and hardener are mixed. It is shorter at high temperatures and longer at low temperatures. The greater the quantity mixed, the shorter the pot-life. To obtain longer workability at high temperatures, the mixed adhesive may be divided into portions. Another method is to chill components A+B before mixing them (although not below +5 °C). |
