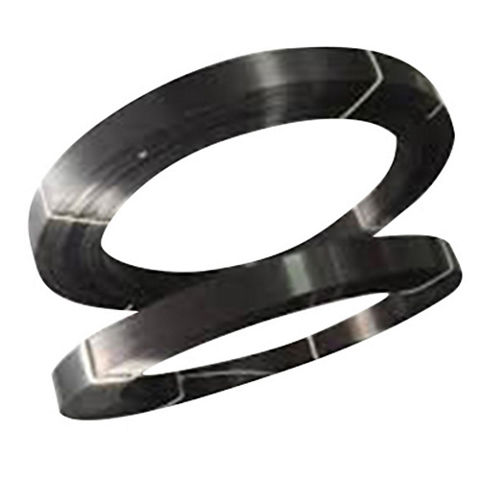

Sika CarboDur Type S 614, Blades

Sika CarboDur Type S 614, Blades

Structural Strengthening
SIKA

Sika is a global leader in specialty chemicals for the construction and industrial sectors. The company develops and supplies innovative products and systems for bonding, sealing, damping, reinforcing, and protecting structures. With a strong focus on sustainability and performance, Sika serves a wide range of applications including concrete production, waterproofing, roofing, flooring, and structural strengthening.

Read more
https://www.polytrade.global/web/image/product.template/40708/image_1920?unique=f2e1e15

534.82 lei Tax Included
534.82 RON

Not Available For Sale

You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
General Specifications
Packaging Roll 250 m
Width - mm
Thickness - mm
Cross Section Area - mm²
Length - m
Construction System: Sikadur®-30 adhesive + Sika® CarboDur® S plates
Usage Structural strengthening: load capacity of slabs, beams, bridges
Usage Area -
Color Carbon fibre reinforced polymer with an epoxy matrix, black
Storage Conditions Max +50 °C, dry, original packaging; away from sunlight
Density -
Consumption Sikadur®-30: 0.20–1.00 kg/m (plate width 50–150 mm)

Pultruded Carbon Fibre Plates for Structural Strengthening as Part of the Sika® CarboDur® System

Sika® CarboDur® plates are pultruded carbon fibre reinforced polymer (CFRP) laminates, designed for strengthening concrete, timber, masonry, steel and fibre reinforced polymer structures. Sika® CarboDur® plates are bonded onto the structure as externally bonded reinforcement using Sikadur®-30 epoxy resin based adhesive for normal temperatures during application and/or service. Please refer to the relevant Product Data Sheet(s) for more detailed information about each of these adhesives.

Usage

Sika® CarboDur® systems are used to improve, increase or repair the performance and resistance of structures for:

Increased Load Carrying Capacity:

  • Increasing the load capacity of floor slabs, beams and bridge sections.
  • For the installation of heavier machinery.
  • To stabilise vibrating structures.
  • For changes in building use.

Damage to structural elements due to:

  • Deterioration of the original construction materials.
  • Steel reinforcement corrosion.
  • Accidents (vehicle impact, earthquakes, fire).

Improvement of serviceability and durability:

  • Reduced deflection and crack width.
  • Stress reduction in the steel reinforcement.
  • Improved fatigue resistance.

Change of the structural system:

  • Removal of walls and/or columns.
  • Removal of floor and wall sections to create access/openings.

Resistance to possible events:

  • Increased resistance to earthquakes, impact or explosion, etc.

To repair design or construction defects such as:

  • Insufficient/inadequate reinforcement.
  • Insufficient/inadequate structural depth.
Advantages
  • Non-corroding.
  • Very high strength.
  • Excellent durability and fatigue resistance.
  • Unlimited lengths, no joints required.
  • Low system thickness, simple execution of plate intersections or crossings.
  • Easy transportation (rolls).
  • Lightweight, very easy to install, especially overhead (without temporary support).
  • Minimum preparation of plate, applicable in several layers.
  • Smooth edges without exposed fibres as result of production by pultrusion.
  • Extensive Testing and Approvals available from many countries worldwide.
Packaging

Cut to size in non-returnable cardboard packaging. Supplied in rolls of 250 m (820 ft) in non-returnable cardboard boxes.

Colour

Carbon fibre reinforced polymer with an epoxy matrix, black.

Typical Product Data
APPROVALS / STANDARDS

- Slovakia: TSUS, Building Testing and research institutes.
- Slovakia: Technical Approval TO-09/0080, 2009: Systémy dodatočného zosilňovania konštrukcií Sika® CarboDur® a SikaWrap®.
- Poland: Technical Approval ITB AT-15-5604/2011: Zestaw wyrobów Sika® CarboDur® do wzmacniania i napraw konstrukcji betonowych.
- Poland: Technical Approval IBDiM Nr AT/2008-03-0336/1 „Płaskowniki. pręty, kształtki i maty kompozytowe do wzmacniania betonu o nazwie handlowej: Zestaw materiałów Sika® CarboDur® do wzmacniania konstrukcji obiektów mostowych.
- France: CSTB - Avis Technique 3/16-875, Sika CarboDur, SikaWrap.
- Fib, Technical Report, bulletin 14: Externally bonded FRP reinforcement for RC structures, July 2001.
- USA: ACI 440.2R-08, Guide for the Design and construction of Externally Bonded FRP Systems for strengthening concrete structures, July 2008.
- UK: Concrete Society Technical Report No. 55, Design guidance for strengthening concrete structures using fibre composite material, 2012.
- Switzerland: SIA 166:2004 Klebebewehrungen.
- Italy: CNR-DT 200 R1/2013 - Guide for the Design and Construction of Externally Bonded FRP Systems for Strengthening Existing Structures.

Fibre Volume Content

> 68 %

Shelf Life

Unlimited, provided the storage conditions are met.

Storage Conditions

Store in original, unopened, sealed and undamaged packaging in dry conditions at temperatures of max. +50 °C (+122 °F). Protect from direct sunlight.
Transportation: only in the original packaging, or otherwise adequately protected against any mechanical damage

Dimensions

Type Sika® CarboDur® S Width Thickness Cross section area
S512 50 mm (1.97 in) 1.2 mm (0.0472 in) 60 mm (2.36 in) 2
S812 80 mm (3.15 in) 1.2 mm (0.0472 in) 96 mm (3.78 in) 2
S1012 100 mm (3.94 in) 1.2 mm (0.0472 in) 120 mm (4.72 in) 2
S1512 150 mm (5.91 in) 1.2 mm (0.0472 in) 180 mm (7.09 in) 2
S626 60mm (2.36 in) 2.6mm (0.102 in) 156 mm (6.14 in) 2
S626 Tensioning Force: 220 kN Pre-stressing Loss: <0.1% Pre-tensioning Strain: 8.5%

System Structure

The system build-up and configuration as described must be fully complied with and may not be changed. Resin adhesive: Sikadur®-30. Structural strengthening Carbon plates: Sika® CarboDur® S. For detailed information on Sikadur®-30 together with the application details, refer to the Sikadur®-30 Product Data Sheet and the “Technical Information Manual Sika® CarboDur® Externally Bonded Reinforcement” Ref: 850 41 05.

Laminate Tensile Strength

Mean value 3 100 N/mm 2 (14504 psi)
5 % fractile-value 2 900 N/mm 2 (130534 psi)
Values in the longitudinal direction of the fibres.

Laminate Tensile Modulus of Elasticity

Mean value 170 000 N/mm 2 (0 psi)
5 % fractile-value 165 000 N/mm 2 (0 psi)
Values in the longitudinal direction of the fibres.

Laminate Elongation at Break

Strain mean value 1.80 %
Values in the longitudinal direction of the fibres.

Glass transition temperature

>100 °C (212 °F) (EN 61006)

Application
Consumption
Width of Sika® CarboDur® S plateTypical consumption of Sikadur®-30*
50 mm (1.97 in)0.20 − 0.28 kg/m
80 mm (3.15 in)0.32 − 0.44 kg/m
100 mm (3.94 in)0.44 − 0.64 kg/m
150 mm (5.91 in)0.68 − 1.00 kg/m

*Note: Consumption is for standard application only. Rough or uneven substrate surfaces, plate crossings, loss and wastage can lead to a higher adhesive consumption of up to 20 %.

SUBSTRATE QUALITY

Sika® CarboDur® plates externally bonded to the concrete surface Recommended minimum concrete pull-off strength after surface preparation:

  • Mean: 2.0 N/mm 2 (290 psi)
  • Minimum: 1.5 N/mm 2 (218 psi)

The effective concrete pull-off strength after surface preparation has to be verified. If concrete pull-off strength is below the stated minimum requirements, alternative Sika solutions are available:

  • CarboDur® applied in slots as near surface mounted (NSM) reinforcement.
  • SikaWrap® fabrics: Please refer to the Product Data Sheet for the SikaWrap® fabrics.

Concrete must generally be older than 28 days (dependent on curing conditions and the type of concrete etc.).

Sika® CarboDur® externally bonded to other substrates For application of CarboDur® plates to all other substrates (brick, stone, steel, wood, fibre reinforced polymer, etc.) refer to the “Technical Information Manual for Sika® CarboDur® Externally Bonded Reinforcement” Ref: 850 41 05. Contact Sika Technical Service for detailed advice.

SUBSTRATE PREPARATION

Concrete must be cleaned and prepared to achieve a laitance and contaminant free, open textured surface. Refer to the “Technical Information Manual for Sika® CarboDur® Externally Bonded Reinforcement” Ref: 850 41 05.
