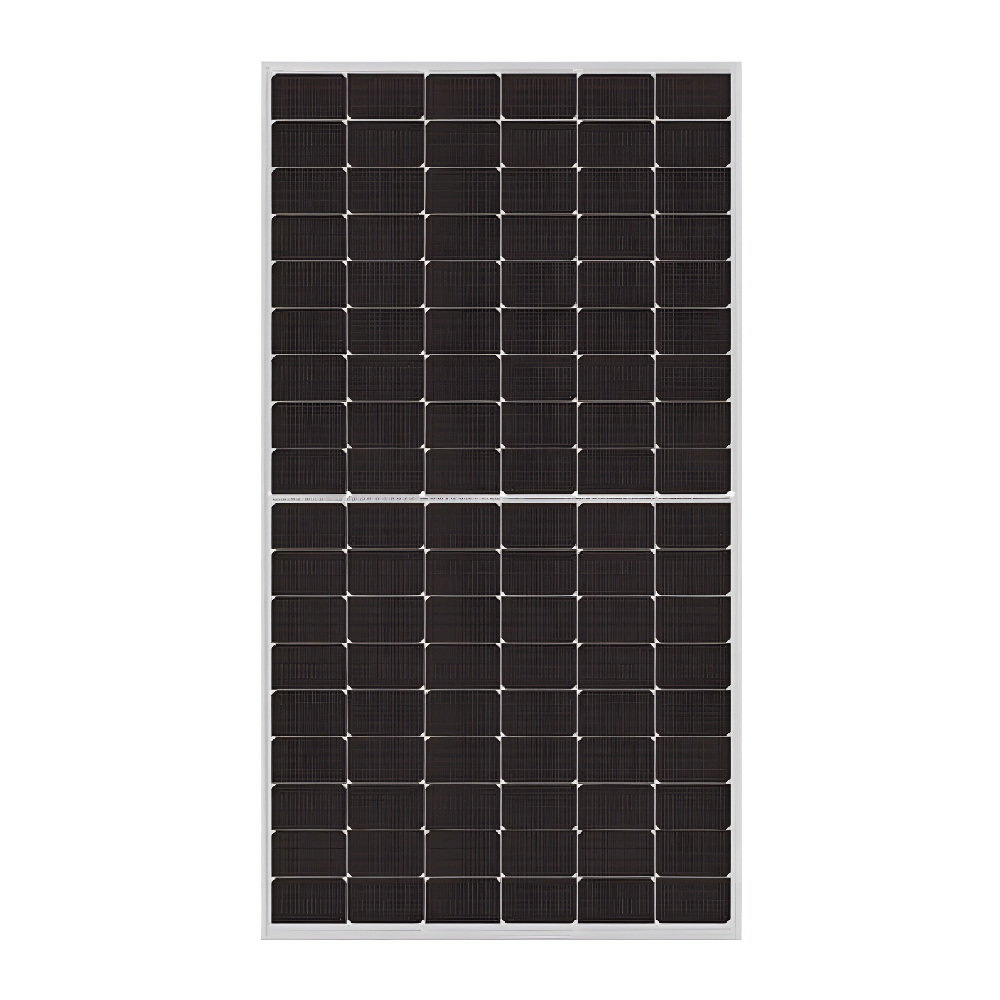

JINKO SOLAR, JKM580N-72HL4-BDV, Standard Bifacial Monocrystalline N-Type 580Wp Solar Panel

PV Panels
JINKO SOLAR

Jinko Solar Co., Ltd. (referred to as "JinkoSolar," stock code: 688223) is a globally renowned and highly innovative solar technology company. Embracing the mission of "changing the energy portfolio and taking responsibility for enabling a sustainable future," the company strategically positions itself in the core segments of the photovoltaic industry chain. It focuses on integrated research, development, and manufacturing of photovoltaic products, as well as providing comprehensive clean energy solutions, leading in sales in the global mainstream photovoltaic market.

Read more
https://www.polytrade.global/web/image/product.template/4552/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand JINKO SOLAR
Product Code JKM580N-72HL4-BDV

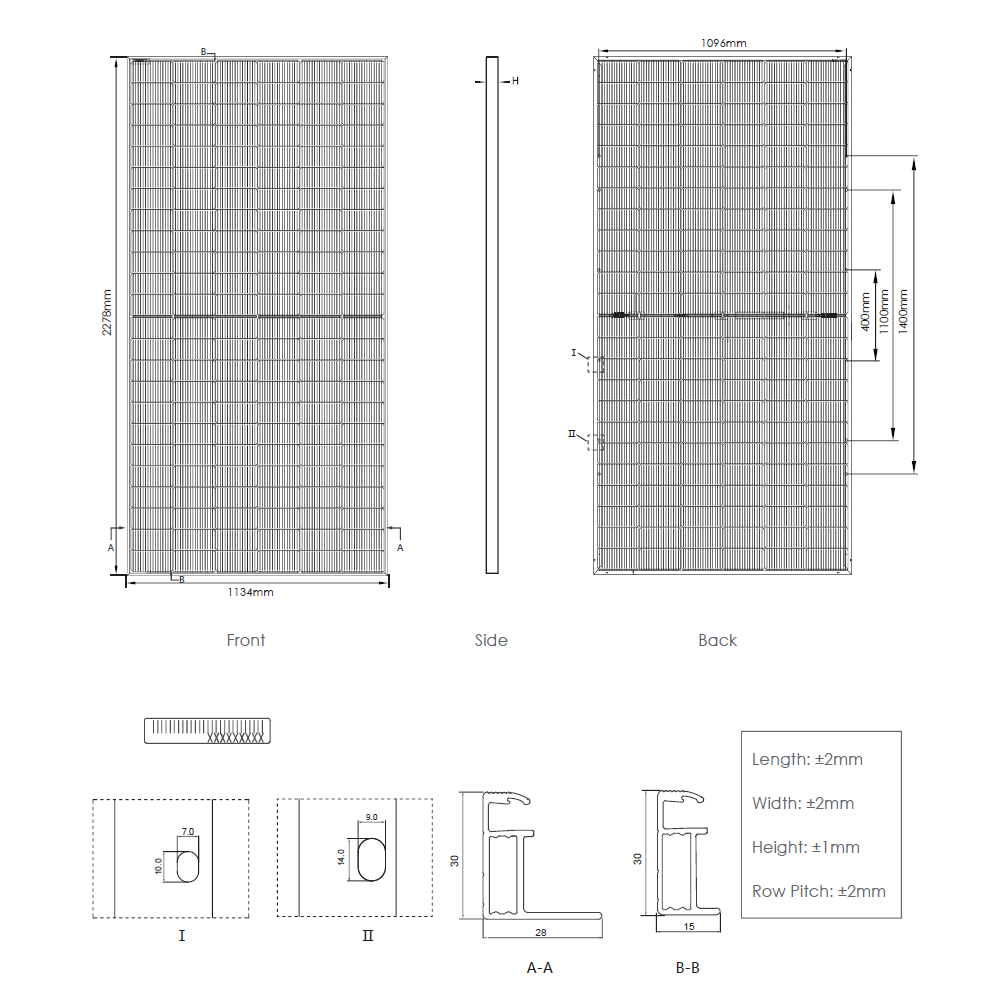

Design & Mechanical Specification
Panel Type Bifacial
Panel Surface Standard
Panel Weight 32.0 Kg
Panel Length 2278.0 mm
Panel Width 1134.0 mm
Panel Thickness 35.0 mm
Cell Material Monocrystalline
Cell Type N-Type
No. of Cells 144.0
Cell Dimension N/A
Glass Type Dual
Encapsulation Type EVA
Junction Box IP Rate 68.0
Frame Type Anodized aluminum alloy
Connector Type MC4
Wind Load 2400.0 Pa
Mechanical Load 5400.0 Pa
Operating Temperature -40 >< +85 °C
Electrical Specifications (*STC)
Nominal Max Power - Pmax 580.0 Wp
Maximum Operating Voltage - Vmpp 42.59 V
Maximum Operation Current - Impp 13.62 A
Open Circuit Voltage - Voc 51.47 V
Short Circuit Current - Isc 14.37 A
Module Efficiency - η 22.45 %
Power Tolerance (+)3% Wp
Maximum System Voltage 1500.0 V
Maximum Series Fuse Rating 30.0 A
Warranty
Products Warranty 12.0 yrs
Performance Warranty 30.0 yrs

General Description & Application

Solar panels are engineered for maximum efficiency, capturing sunlight and converting it into electricity with remarkable precision. Solar panels incorporate the latest advancements, ensuring you benefit from the most efficient and reliable solar solutions available on the market.
From extreme weather conditions to daily wear and tear, solar panels are designed to provide long-lasting, reliable performance, ensuring a sound investment in your energy future.
With solar panels, you're actively contributing to the reduction of greenhouse gas emissions and promoting a cleaner, healthier planet for generations to come.

Standards

Solar panels are engineered and testing according to below standards, as the case may be:
Low Voltage EU Directive 2014/35/EU
IEC 60068-2-68:1994
IEC 61215-1:2016
IEC 61215-1-1:2016
IEC 61215-2:2016
IEC 61730-1:2016
IEC 61730-2:2016
EN 61215-1:2016
EN 61215-1-1:2016
EN 61215-2:2017
EN 61730-1:2018
EN 61730-2:2018
IEC 61701:2011
EN 61701:2012
IEC 62716:2013
EN 62716:2013
IEC 62804-1:2015 / 2 PFG 2387/01.18
IEC 60068-2-68:1994
