  2. RISEN ENERGY, RSM110-8-545M, Standard Monofacial Monocrystalline PERC half-cut cells 545Wp Solar Panel

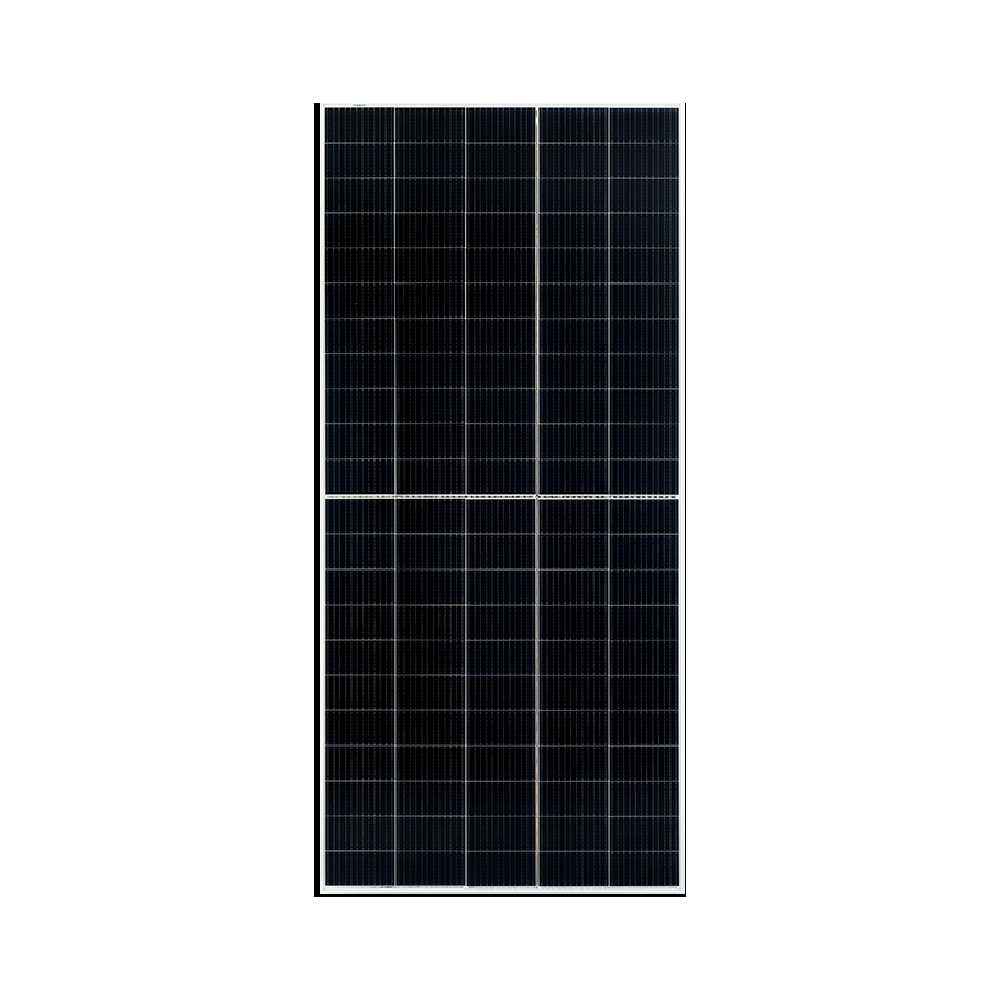

RISEN ENERGY, RSM110-8-545M, Standard Monofacial Monocrystalline PERC half-cut cells 545Wp Solar Panel

PV Panels
RISEN ENERGY

As a world-leading new energy enterprise, Risen Energy is driving global energy innovation with solar modules and photovoltaic power plants, providing sustainable energy solutions and integrated services across the globe. Risen Energy is helping customers reach their low-carbon and zero-carbon goals. Risen Energy strives to do our part to support the global community in entering a new era of carbon neutrality!

Read more
https://www.polytrade.global/web/image/product.template/4736/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand RISEN ENERGY
Product Code RSM110-8-545M
Design & Mechanical Specification
Panel Type Monofacial
Panel Surface Standard
Panel Weight 31.0 Kg
Panel Length 2384.0 mm
Panel Width 1096.0 mm
Panel Thickness 35.0 mm
Cell Material Monocrystalline
Cell Type PERC half-cut cells
No. of Cells 110.0
Cell Dimension N/A
Glass Type Single
Encapsulation Type EVA
Junction Box IP Rate 68.0
Frame Type High strength alloy steel
Connector Type Risen Twinsel PV-SY02
Wind Load 2400.0 Pa
Mechanical Load 5400.0 Pa
Operating Temperature -40 >< +85 °C

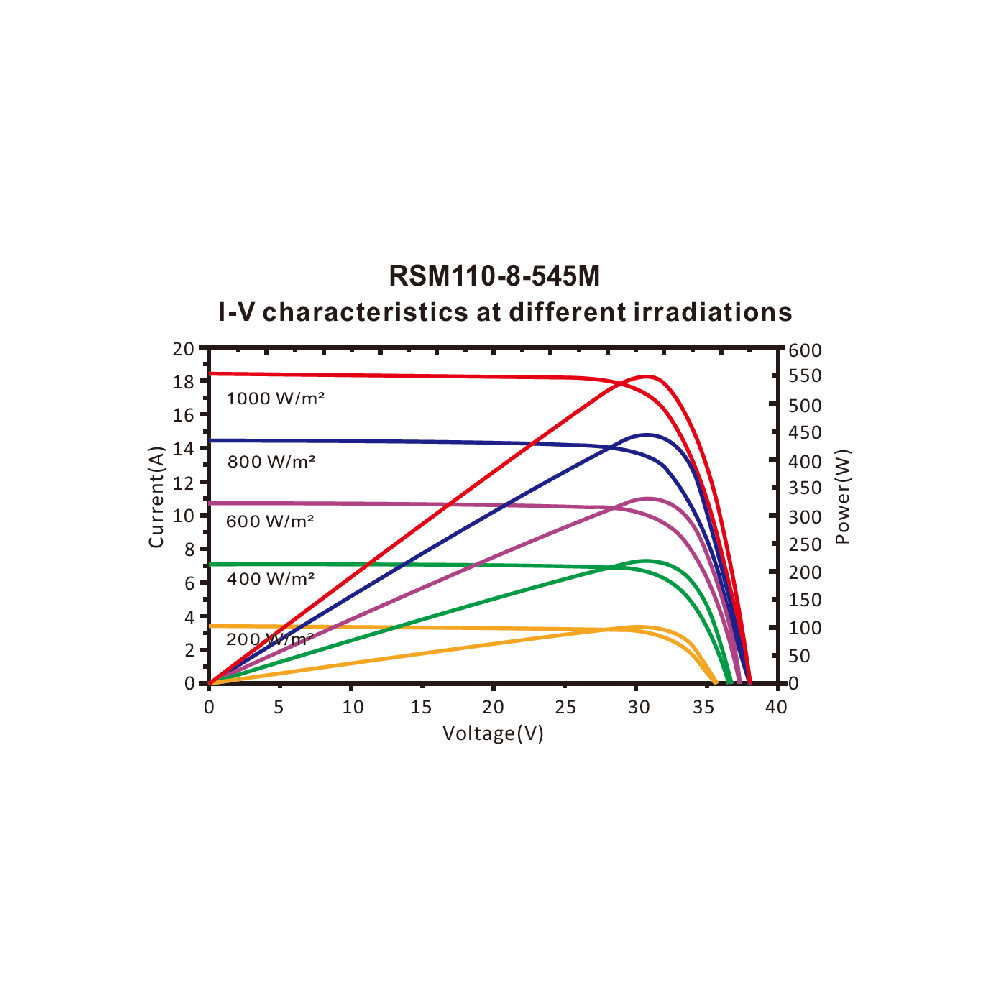

Electrical Specifications (*STC)
Nominal Max Power - Pmax 545.0 Wp
Maximum Operating Voltage - Vmpp 31.66 V
Maximum Operation Current - Impp 17.22 A
Open Circuit Voltage - Voc 38.02 V
Short Circuit Current - Isc 18.23 A
Module Efficiency - η 20.9 %
Power Tolerance (+)3% Wp
Maximum System Voltage 1500.0 V
Maximum Series Fuse Rating 30.0 A
Warranty
Products Warranty 12.0 yrs
Performance Warranty 25.0 yrs

General Description & Application

Solar panels are engineered for maximum efficiency, capturing sunlight and converting it into electricity with remarkable precision. Solar panels incorporate the latest advancements, ensuring you benefit from the most efficient and reliable solar solutions available on the market.
From extreme weather conditions to daily wear and tear, solar panels are designed to provide long-lasting, reliable performance, ensuring a sound investment in your energy future.
With solar panels, you're actively contributing to the reduction of greenhouse gas emissions and promoting a cleaner, healthier planet for generations to come.

Standards

Solar panels are engineered and testing according to below standards, as the case may be:
Low Voltage EU Directive 2014/35/EU
IEC 60068-2-68:1994
IEC 61215-1:2016
IEC 61215-1-1:2016
IEC 61215-2:2016
IEC 61730-1:2016
IEC 61730-2:2016
EN 61215-1:2016
EN 61215-1-1:2016
EN 61215-2:2017
EN 61730-1:2018
EN 61730-2:2018
IEC 61701:2011
EN 61701:2012
IEC 62716:2013
EN 62716:2013
IEC 62804-1:2015 / 2 PFG 2387/01.18
IEC 60068-2-68:1994
