  2. AIKO SOLAR, NEOSTAR 3S54 AIKO-A470-MCE54Mb, Standard Monofacial N-Type ABC 470Wp Solar Panel

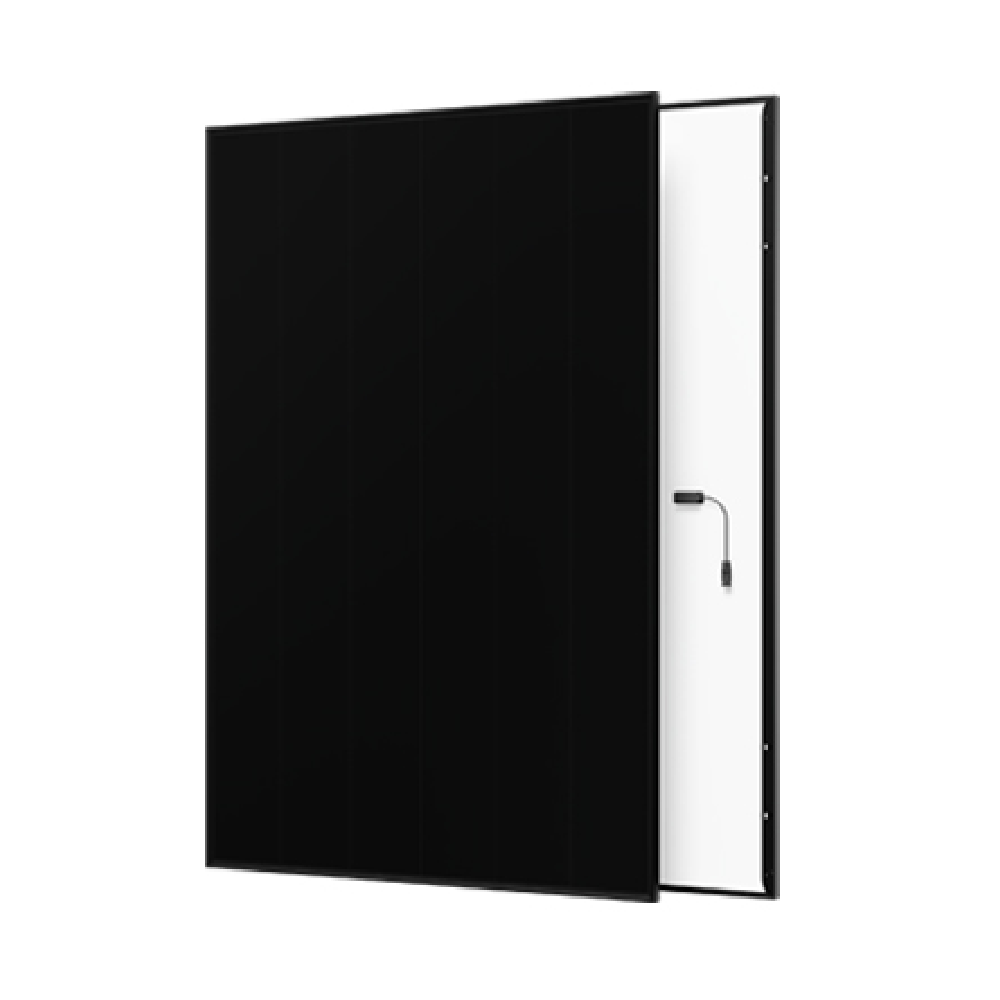

AIKO SOLAR, NEOSTAR 3S54 AIKO-A470-MCE54Mb, Standard Monofacial N-Type ABC 470Wp Solar Panel

PV Panels
AIKO SOLAR

AIKO is a global-leading new energy technology company, focusing on the R&D manufacturing of solar generation products and PV-Storage-Charging integrated solutions, providing customers with solar cells, ABC (All Back Contact) modules and scenario-based packaged solutions. With the mission of “Empowering transformation towards a carbon-free era”, AIKO keeps on pursuing extreme innovation and cutting-edge technology.

Read more
https://www.polytrade.global/web/image/product.template/16552/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand AIKO SOLAR
Product Code NEOSTAR 3S54 AIKO-A470-MCE54Mb

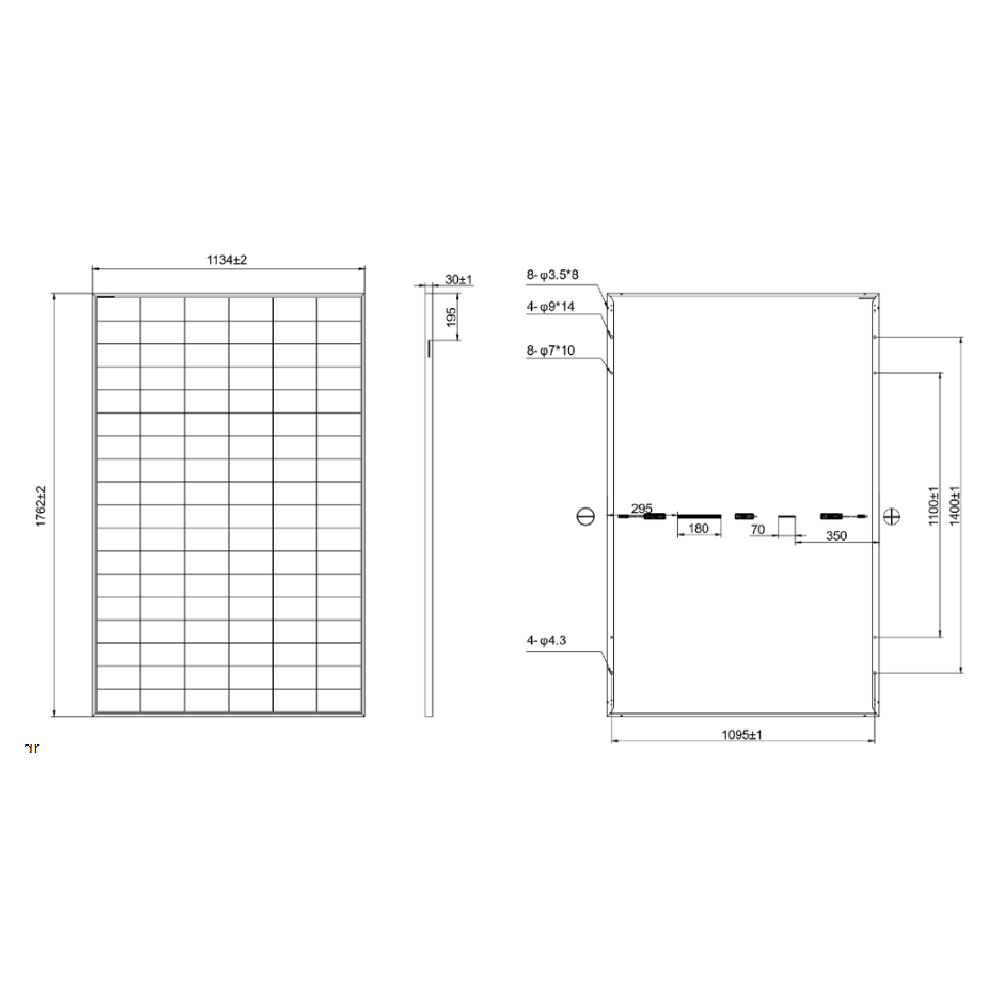

Design & Mechanical Specification
Panel Type Monofacial
Panel Surface Standard
Panel Weight 20.6 Kg
Panel Length 1762.0 mm
Panel Width 1134.0 mm
Panel Thickness 30.0 mm
Cell Material Monocrystalline
Cell Type N-Type ABC
No. of Cells 108.0
Cell Dimension 6*18
Glass Type Single
Encapsulation Type EVA
Junction Box IP Rate IP68, 3 bypass diode
Frame Type Black anodized aluminu
Connector Type Original MC4
Wind Load 2400.0 Pa
Mechanical Load 5400.0 Pa
Operating Temperature -40 >< +85 °C
Electrical Specifications (*STC)
Nominal Max Power - Pmax 470.0 Wp
Maximum Operating Voltage - Vmpp 34.3 V
Maximum Operation Current - Impp 13.71 A
Open Circuit Voltage - Voc 40.7 V
Short Circuit Current - Isc 14.72 A
Module Efficiency - η 23.5 %
Power Tolerance 0~+3 Wp
Maximum System Voltage 1500.0 V
Maximum Series Fuse Rating 25.0 A
Warranty
Products Warranty 25.0 yrs
Performance Warranty 30.0 yrs

General Description & Application

NEOSTAR 3S54 Mono-Glass 460W-485W

Third generation comprehensive upgrade | Higher power output | High Returns | High Safety

  • Efficiency: up to 24.3%

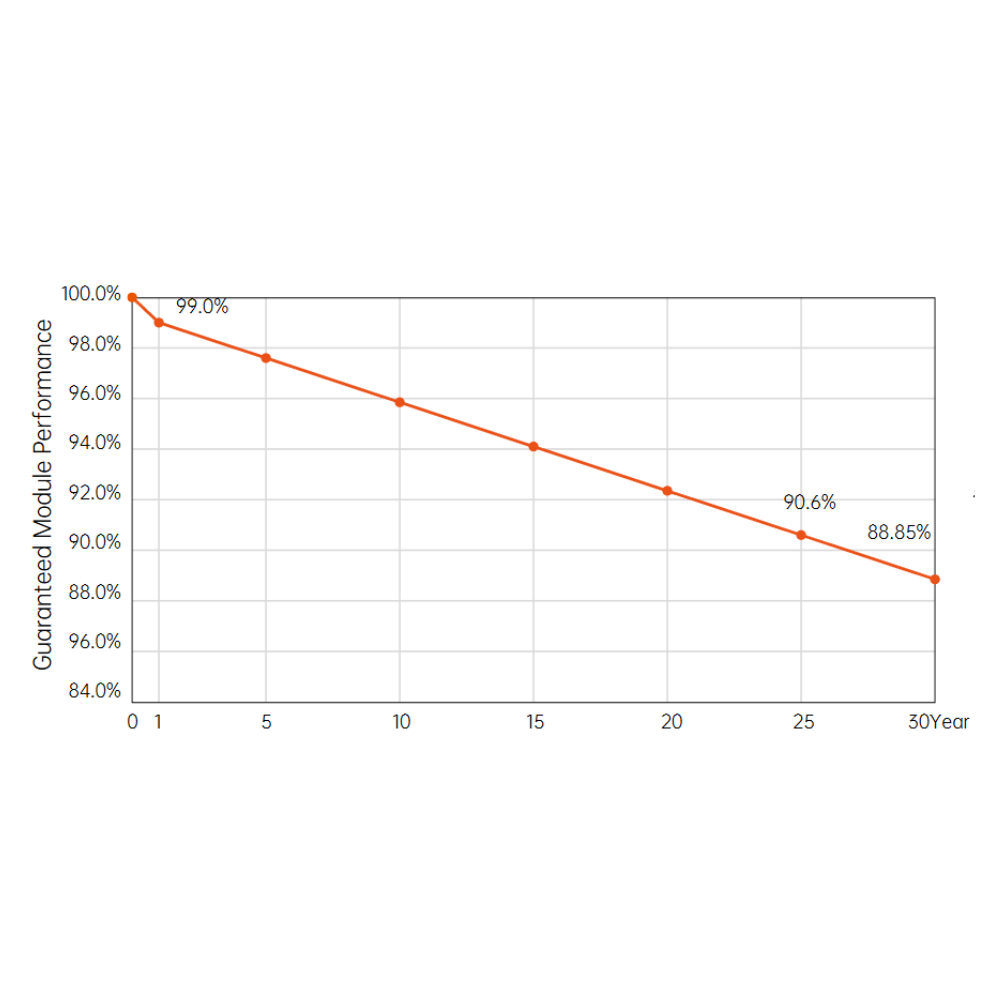

  • Low performance degradation: ≤1% in the first year, and ≤ 0.35%/year in the following years
  • Premium warranty: 25-year product warranty and 30-year performance warranty
  • Better temperature coefficient: -0.26%/°C

Certifications

  • Intersolar AWARD 2023
  • The world’s first XBC PV module red dot design award in 2023
  • BloombergNEF Tier 1 Solar PV module manufacturer
