  2. AIKO SOLAR, NEOSTAR 2P+54 AIKO-A475-MAH54Dw, Standard Bifacial N-Type ABC 475Wp Solar Panel

AIKO SOLAR, NEOSTAR 2P+54 AIKO-A475-MAH54Dw, Standard Bifacial N-Type ABC 475Wp Solar Panel

PV Panels
AIKO SOLAR

AIKO is a global-leading new energy technology company, focusing on the R&D manufacturing of solar generation products and PV-Storage-Charging integrated solutions, providing customers with solar cells, ABC (All Back Contact) modules and scenario-based packaged solutions. With the mission of “Empowering transformation towards a carbon-free era”, AIKO keeps on pursuing extreme innovation and cutting-edge technology.

Read more
https://www.polytrade.global/web/image/product.template/16576/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand AIKO SOLAR
Product Code NEOSTAR 2P+54 AIKO-A475-MAH54Dw

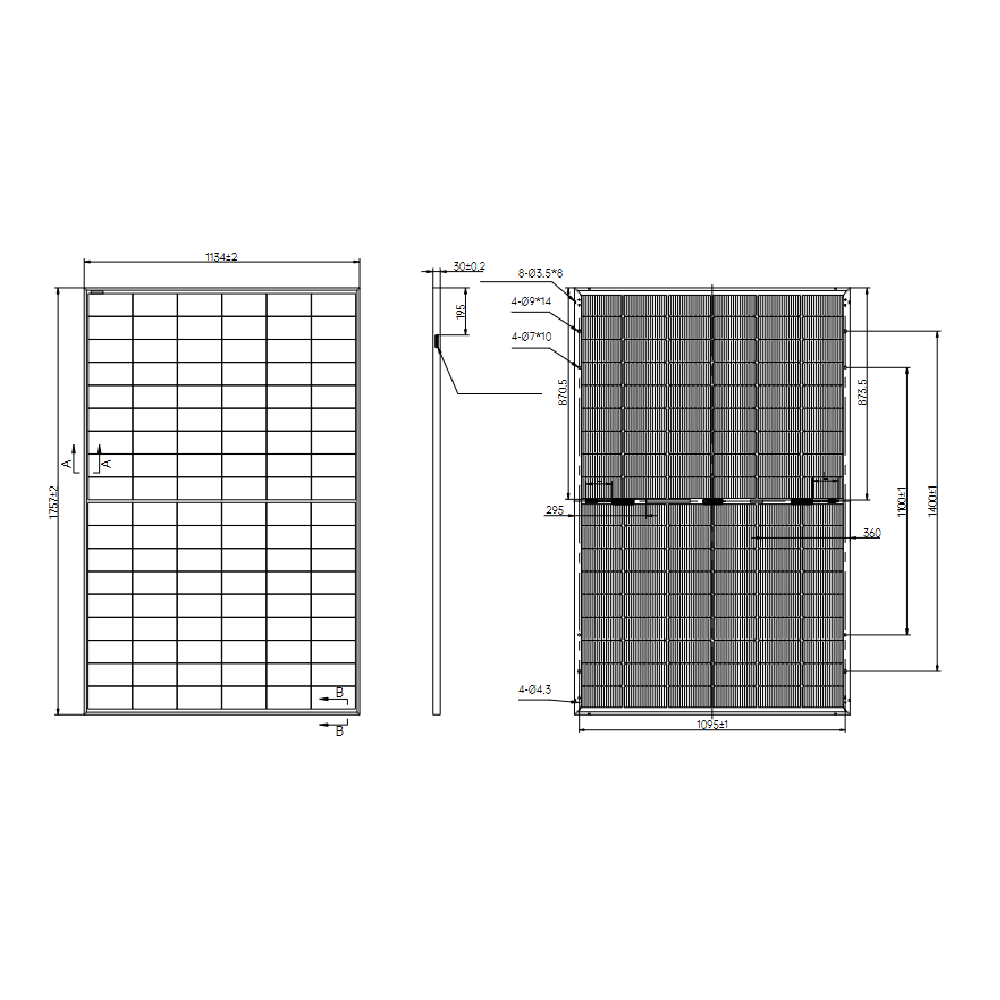

Design & Mechanical Specification
Panel Type Bifacial
Panel Surface Standard
Panel Weight 24.2 Kg
Panel Length 1757.0 mm
Panel Width 1134.0 mm
Panel Thickness 30.0 mm
Cell Material Monocrystalline
Cell Type N-Type ABC
No. of Cells 108.0
Cell Dimension 6*18
Glass Type Dual Glass
Encapsulation Type EVA
Junction Box IP Rate IP68, 3 bypass diode
Frame Type Black anodized aluminu
Connector Type Original MC4
Wind Load 2400.0 Pa
Mechanical Load 5400.0 Pa
Operating Temperature -40 >< +85 °C
Electrical Specifications (*STC)
Nominal Max Power - Pmax 475.0 Wp
Maximum Operating Voltage - Vmpp 34.8 V
Maximum Operation Current - Impp 13,66 A
Open Circuit Voltage - Voc 41.24 V
Short Circuit Current - Isc 14.35 A
Module Efficiency - η 23.8 %
Power Tolerance 0~+3 Wp
Maximum System Voltage 1500.0 V
Maximum Series Fuse Rating 25.0 A
Warranty
Products Warranty 15.0 yrs
Performance Warranty 30.0 yrs

General Description & Application

NEOSTAR 2P+54 Dual-Glass 455W-475W

Second generation comprehensive upgrade | Higher power output | Lower BOS | Quality aesthetics

  • Efficiency: up to 23.8%

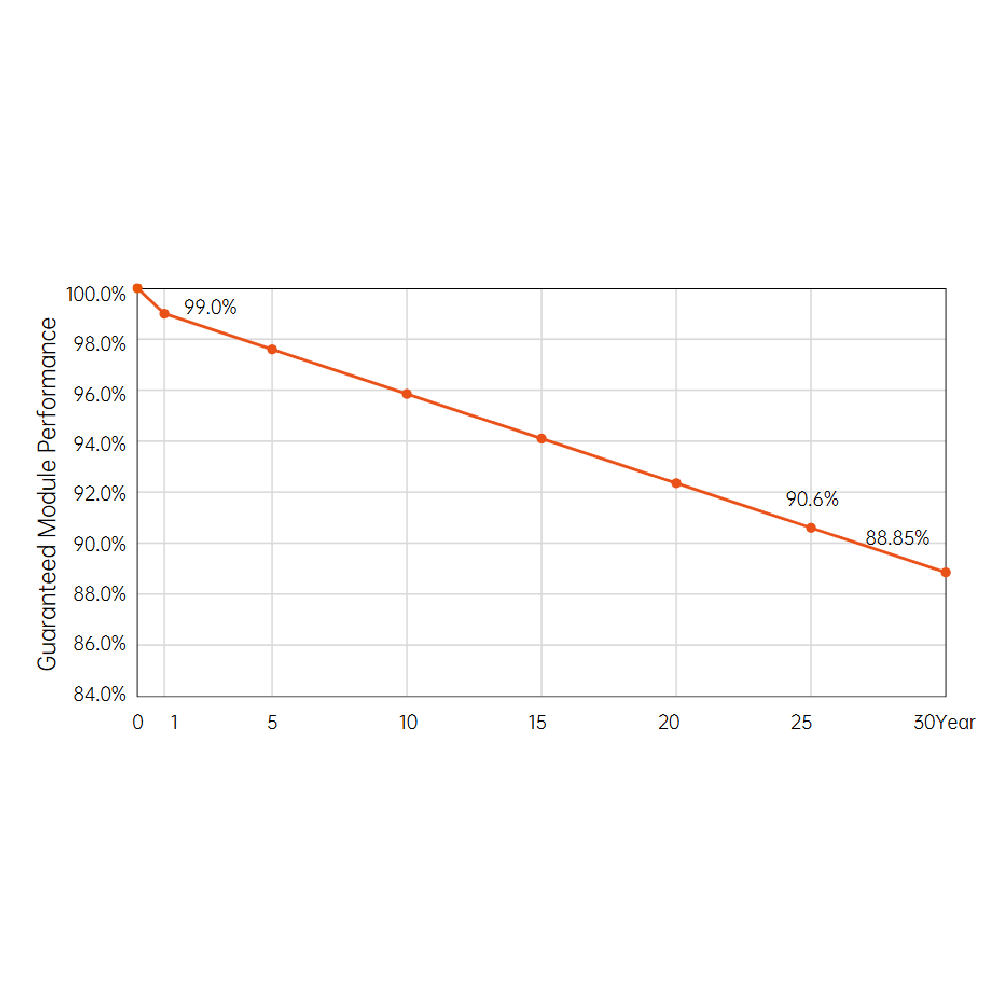

  • Low performance degradation: ≤1% in the first year, and ≤ 0.35%/year in the following years
  • Premium warranty: 15-year product warranty, extendable to 25-year and 30-year performance warranty
  • Better temperature coefficient: -0.26%/°C
  • Maximizing the installation capacity, Partial shading optimization
  • Lower O&M cost
    High temperature restriction and micro-crack resistance, front grid free, ensuring roof safety, reducing module failure rate.
    The same DC capacity with connection points reduced by about 5.5%.

Certifications

  • Intersolar AWARD 2023
  • The world’s first XBC PV module red dot design award in 2023
  • BloombergNEF Tier 1 Solar PV module manufacturer
