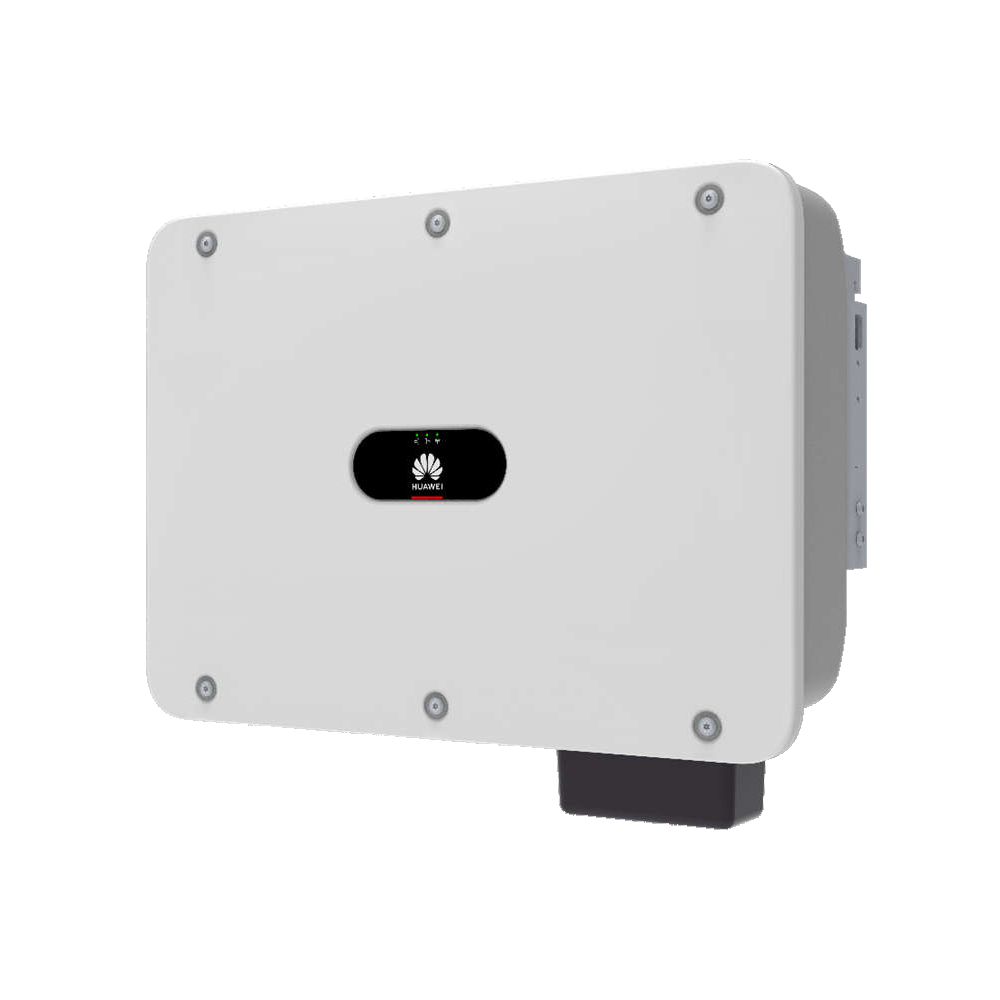

HUAWEI, SUN2000-30KTL-M3, 30kW, Three Phase Inverter

Inverters
HUAWEI FUSION SOLAR

Huawei FusionSolar is a smart photovoltaic (PV) solution provided by Huawei Technologies. It represents a comprehensive approach to solar energy, integrating advanced technology and innovation to optimize solar power generation and management.

Read more
https://www.polytrade.global/web/image/product.template/6695/image_1920?unique=742326b
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identifications
Brand HUAWEI FUSION SOLAR
Product Code SUN2000-30KTL-M3
Type Three Phase
General Specifications
Width 640.0 mm
Height 530.0 mm
Depth 270.0 mm
Weight 43.0 Kg
Min. Operating Temperature -25.0 °C
Max. Operating Temperature 60.0 °C
Max. Operating Altitude 4000.0 m
Relative Humidity 0-100 %
Topology Transformerless
IP Rating IP66
Max. Efficiency 98.7 %
Input
Max. Input Voltage 1100.0 V
Rated Input Voltage 600.0 V
Max. Input Current 26.0 A
Max.Short Circuit Current 40.0 A
Start Voltage 200.0 V
No. of MPPTS 4.0
Max. number of inputs 8.0
MPPT Operating Voltage Range 200-1000 V
Output
Rated Output Power 30000.0 W
Max. AC Apparent Power 33000.0 VA
Max. Output Power N/A W
Rated AC Output Voltage 230/400 VA
Rated Grid Frequency 50/60 Hz
Max. Output Current 47.9 A
Total Harmonic Distortion <3 %
Power Factor 0.8
Protection
Anti-islanding Protection Yes
AC Overcurrent Protection Yes
AC Short Circuit Protection N/A
DC Reverse Connection Yes
DC Surge Arrester Yes
AC Surge Arrester Yes
Insulation Detection Yes
Communication
Display LED Indicators
RS485 Yes
USB N/A
Monitoring BUS (MBUS) Yes
WiFi Yes

General Description & Application

Huawei FusionSolar inverters are intelligent photovoltaic power conversion solutions designed to deliver high efficiency, advanced safety, and smart energy management. Built on Huawei’s digital and power electronics expertise, FusionSolar inverters are suitable for residential, commercial, and industrial solar systems, offering seamless integration with energy storage and smart monitoring platforms.

Key Features:

  • High Efficiency & Advanced MPPT:

    • Multiple MPPT Trackers: Optimizes energy harvest in complex rooftop layouts and varying shading conditions.
    • AI-Driven Performance Optimization: Intelligent algorithms enhance energy yield and system stability.

  • Smart Monitoring & Connectivity:

    • Integrated Smart Monitoring: Real-time data access through dedicated cloud-based management platforms.
    • Remote Configuration & Updates: Supports firmware upgrades and parameter settings remotely.
    • Flexible Communication Interfaces: WiFi, Ethernet, RS485, and smart energy meter compatibility.

  • Enhanced Safety & Reliability:

    • Comprehensive Protection Functions: Includes over-voltage, over-current, short-circuit, and anti-islanding protection.
    • Arc Fault Protection (AFCI): Advanced safety mechanism to detect and mitigate arc faults.
    • IP65 Protection Degree: Suitable for both indoor and outdoor installations.

Huawei FusionSolar inverters provide scalable and future-ready solutions, supporting hybrid configurations and energy storage systems, ensuring efficient solar energy utilization and long-term operational performance.

Standards

Huawei FusionSolar inverters are manufactured and tested according to international standards, including:

IEC 62109-1/2 (Safety requirements for PV power converters)
IEC 61000-6-1 / IEC 61000-6-3 (Electromagnetic compatibility)
IEC 61727 (Utility interface requirements)
IEC 62116 (Anti-islanding testing)
EN 50549 (Grid connection compliance)
