  2. Solis S5-GC60K, 60kW, Three Phase Inverter

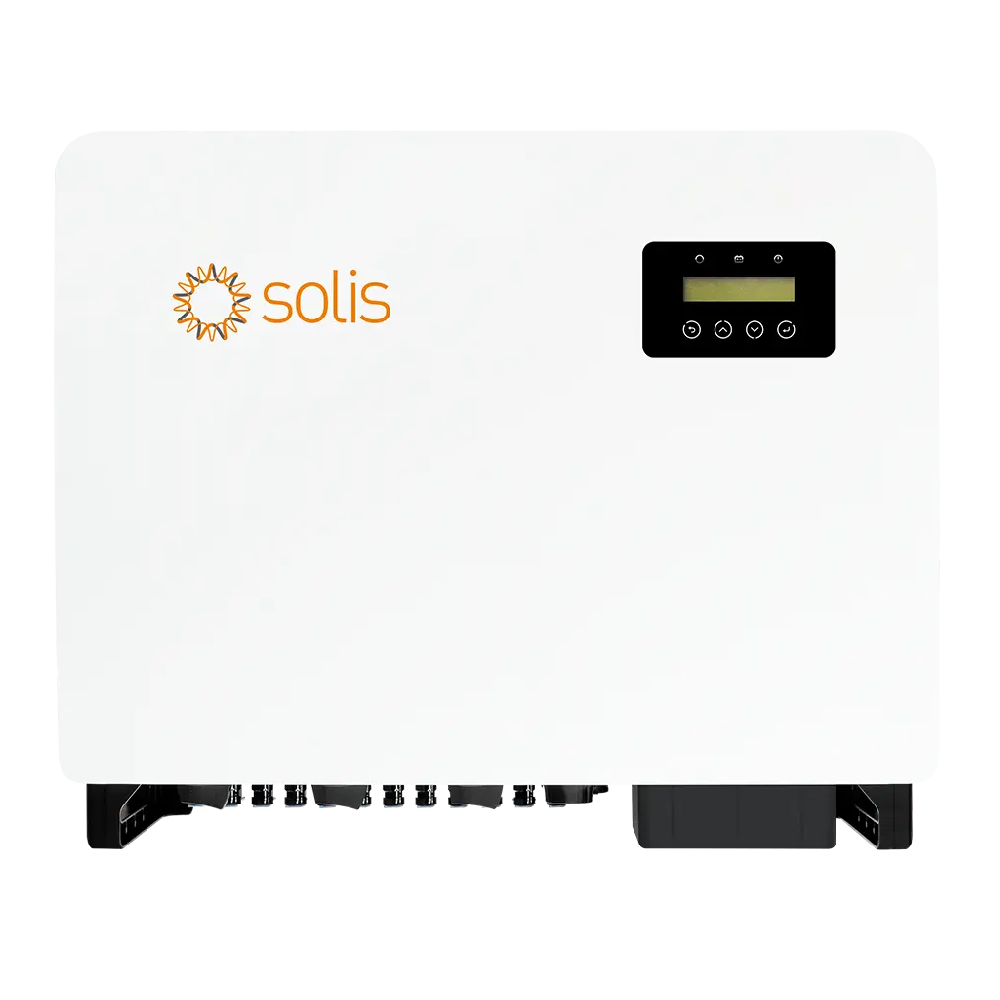

Solis S5-GC60K, 60kW, Three Phase Inverter

Inverters
SOLIS

Established in 2005, Ginlong (Solis) is recognized as the world’s third-largest PV inverter manufacturer. As a global provider of solar and energy storage solutions for residential, commercial, and utility-scale customers, the company delivers value throughout the solar supply chain. Operating under the Solis brand, its solar inverter product line utilizes innovative string technology, ensuring top-tier reliability validated by rigorous international certifications.

Read more
https://www.polytrade.global/web/image/product.template/16278/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identifications
Brand Solis
Product Code S5-GC60K
Type Three Phase
General Specifications
Width 691.0 mm
Height 578.0 mm
Depth 338.0 mm
Weight 53.7 Kg
Min. Operating Temperature -25.0 °C
Max. Operating Temperature 60.0 °C
Max. Operating Altitude 4000.0 m
Relative Humidity 0-100 %
Topology Transformerless
IP Rating IP66
Max. Efficiency 98.7 %
Input
Max. Input Voltage 1100.0 V
Rated Input Voltage 600.0 V
Max. Input Current 6x32 A
Max.Short Circuit Current 6x40 A
Start Voltage 195.0 V
No. of MPPTS 6.0
Max. number of inputs 12.0
MPPT Operating Voltage Range 180 - 1000 V
Output
Rated Output Power 60000.0 W
Max. AC Apparent Power 66000.0 VA
Max. Output Power 66000.0 W
Rated AC Output Voltage 220/380, 230/400 VA
Rated Grid Frequency 50/60 Hz
Max. Output Current 100.3 A
Total Harmonic Distortion <3 %
Power Factor >0,99
Protection
Anti-islanding Protection Yes
AC Short Circuit Protection Yes
AC Overcurrent Protection Yes
Insulation Detection Yes
AC Surge Arrester Yes
DC Surge Arrester Yes
DC Reverse Connection Yes
Communication
WiFi Optional: Wi-Fi, GPRS
RS485 Yes
Monitoring BUS (MBUS) N/A
Display LCD
USB No

General Description & Application

S5-GC(50-60)K

Key Features:

  • Three Phase Grid-Tied Inverter

  • S5-GC(50-60)K three-phase series string inverter are suitable for the installation of three-phase input pv system of commercial and industrial PV plants. Adopt 5/6 MPPT design to provide a more flexible configuration scheme and higher generation efficiency. Perfect commercial site monitoring solution, intelligent redundancy fan.
