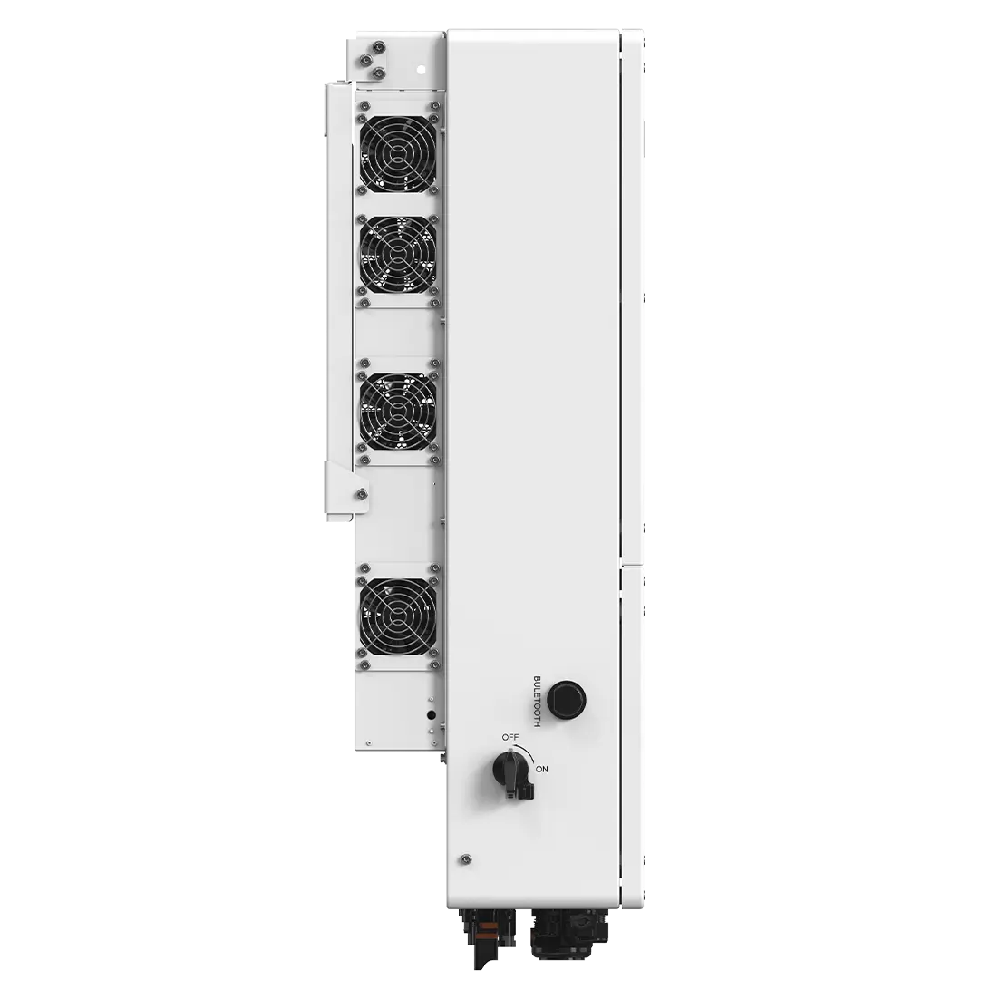

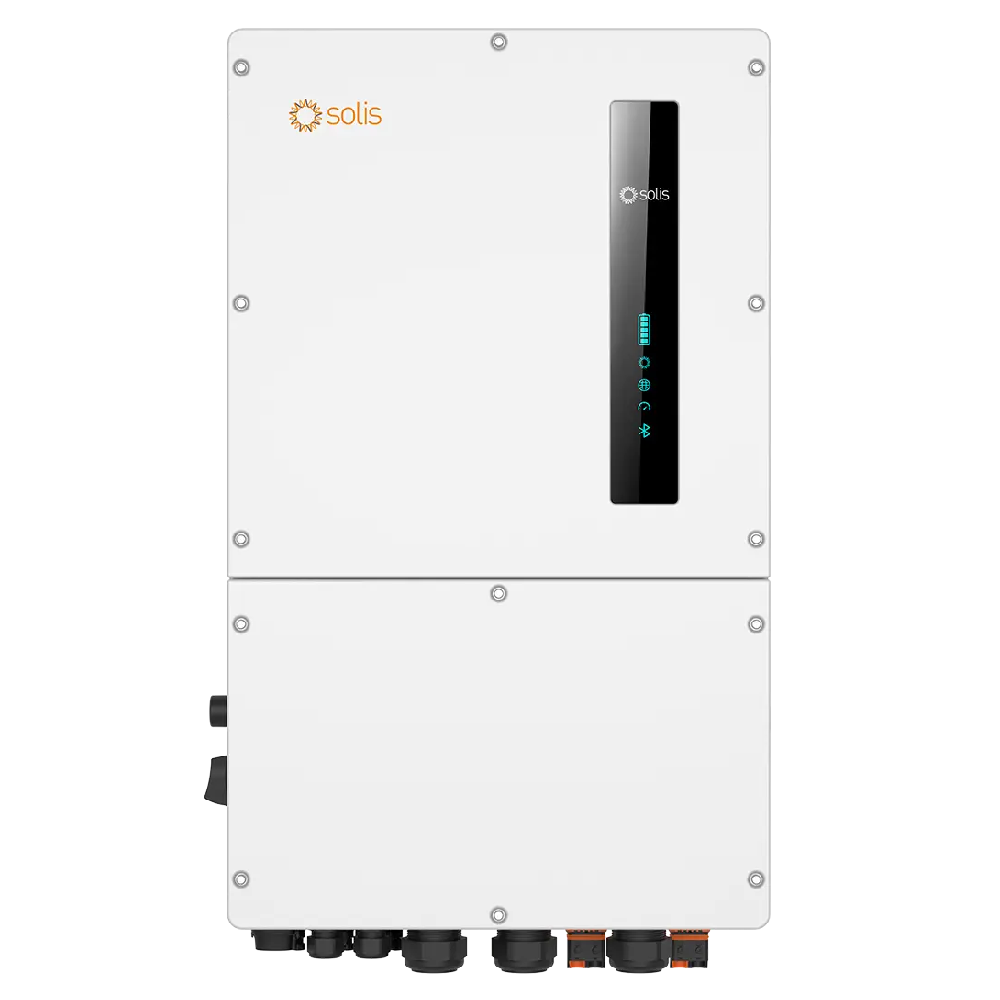

Solis S6-EH3P50K-H-ND, 50kW, Three Phase Hybrid Energy Storage Inverter

Inverters
SOLIS

Established in 2005, Ginlong (Solis) is recognized as the world’s third-largest PV inverter manufacturer. As a global provider of solar and energy storage solutions for residential, commercial, and utility-scale customers, the company delivers value throughout the solar supply chain. Operating under the Solis brand, its solar inverter product line utilizes innovative string technology, ensuring top-tier reliability validated by rigorous international certifications.

Read more
https://www.polytrade.global/web/image/product.template/16393/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identifications
Brand Solis
Product Code S6-EH3P50K-H-ND
Type Three Phase Hybrid Energy Storage
General Specifications
Width 530.0 mm
Height 880.0 mm
Depth 290.0 mm
Weight 73.0 Kg
Min. Operating Temperature -25.0 °C
Max. Operating Temperature 60.0 °C
Max. Operating Altitude 4000.0 m
Relative Humidity 0-95 %
Topology Transformerless
IP Rating IP66
Max. Efficiency 97.8 %
Input
Max. Input Voltage 1000.0 V
Rated Input Voltage 600.0 V
Max. Input Current 4x40 A
Max.Short Circuit Current 4x60 A
Start Voltage 180.0 V
No. of MPPTS 4.0
Max. number of inputs 8.0
MPPT Operating Voltage Range 150 - 850 V
Output
Rated Output Power 50000.0 W
Max. AC Apparent Power 50000.0 VA
Max. Output Power N/A W
Rated AC Output Voltage 220/380, 230/400 VA
Rated Grid Frequency 50/60 Hz
Max. Output Current 76/72,2 A
Total Harmonic Distortion <3 %
Power Factor >0,99
Protection
Anti-islanding Protection Yes
AC Short Circuit Protection Yes
AC Overcurrent Protection Yes
Insulation Detection No
AC Surge Arrester Yes
DC Surge Arrester Yes
DC Reverse Connection Yes
Communication
WiFi Optional: Wi-Fi, Cellular, LAN
RS485 Yes
Monitoring BUS (MBUS) N/A
Display LED indicator & Bluetooth + APP
USB No

General Description & Application

S6-EH3P(30-50)K-H-ND

Key Features:

  • Three Phase High Voltage Energy Storage Inverter

  • The Solis S6-EH3P(30-50)K-H-ND series three-phase energy storage inverter is tailored for commercial PV energy storage systems. These products support an independent generator port and the parallel operation of multiple inverters. With 4 MPPTs and a 40A/MPPT input current capacity, they maximize the advantages of rooftop PV power. These products also offer independent generator ports, high current charging and discharging capacity, and various flexible load capacity options, including UPS-level switching. They readily adapt to three-phase unbalanced loads and half-wave loads, ensuring a highly reliable energy supply.
