SolaX, AELIO-P60B100, Energy Storage System (ESS)

BESS
SOLAX POWER

SolaX Power is a leading global manufacturer of photovoltaic solutions, specializing in inverters, hybrid systems, and energy storage batteries. Its products deliver high efficiency, reliability, and smart monitoring, making them ideal for residential and commercial applications. With cutting-edge technology, SolaX supports energy independence and the transition to a sustainable future.

Read more
https://www.polytrade.global/web/image/product.template/18526/image_1920?unique=cee24b3
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand SolaX Power
Product Code AELIO-P60B100
General Specifications
Width 1310.0 mm
Height 2300.0 mm
Depth 1140.0 mm
Weight 1600.0 Kg
Operating Temperature -30 >< 55 °C
Max. Operating Altitude 3000.0 m
Relative Humidity 0 ~ 100 (non-condensing) %
IP Rating Cabinet: IP55; Inverter: IP66
Battery Chemistry LiFePO4
Max. Efficiency 98.2 %
Electrical Data
Rated AC Output Power 60.0 kVA
Rated DC Power N/A kW
Storage Capacity 100.0 kWh
DC Voltage (Nominal) 650.0 V
DC Voltage Range 160 - 950 V
Max.Short Circuit Current 50.0 A
Protection
Protection <p>Fire protection: Aerosol / Water</p>
Communication
Communication Interface SolaXCloud, Wireless meter compatibility
Communication Protocol IEEE 2030.5, OpenADR

General Description & Application

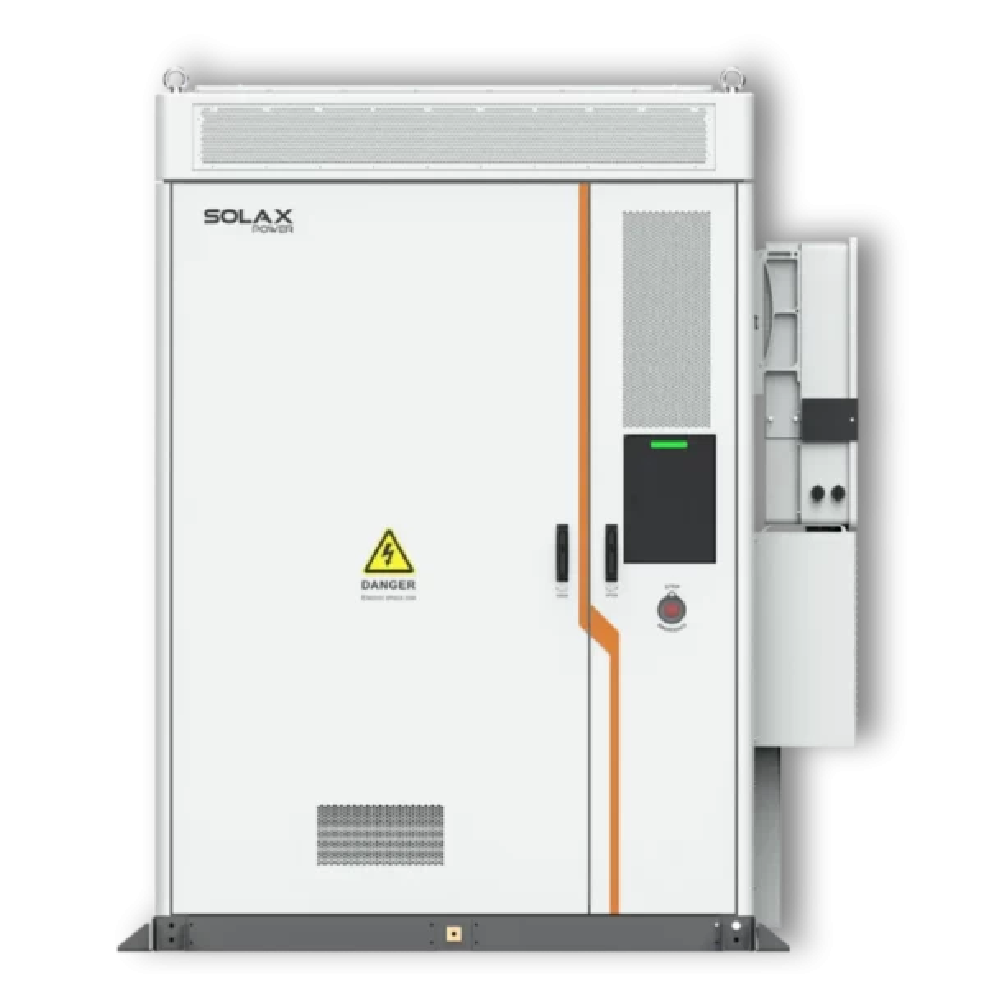

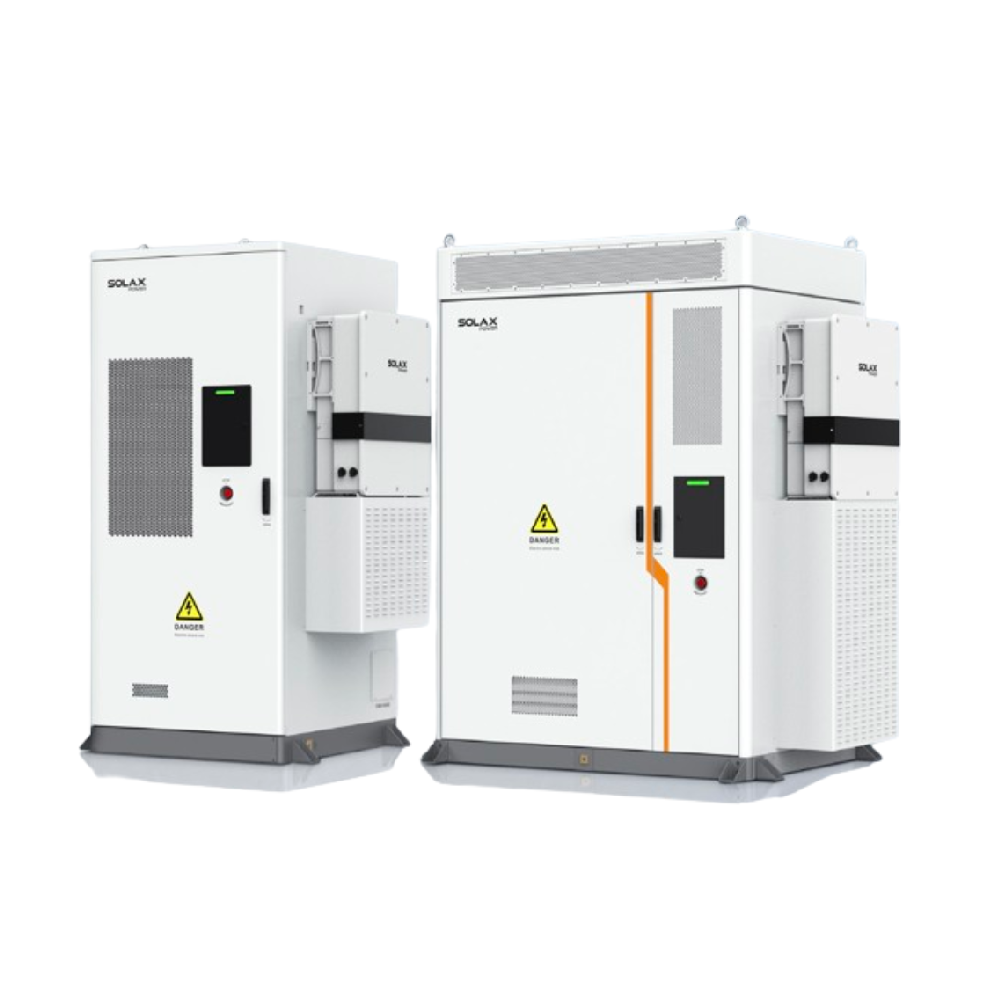

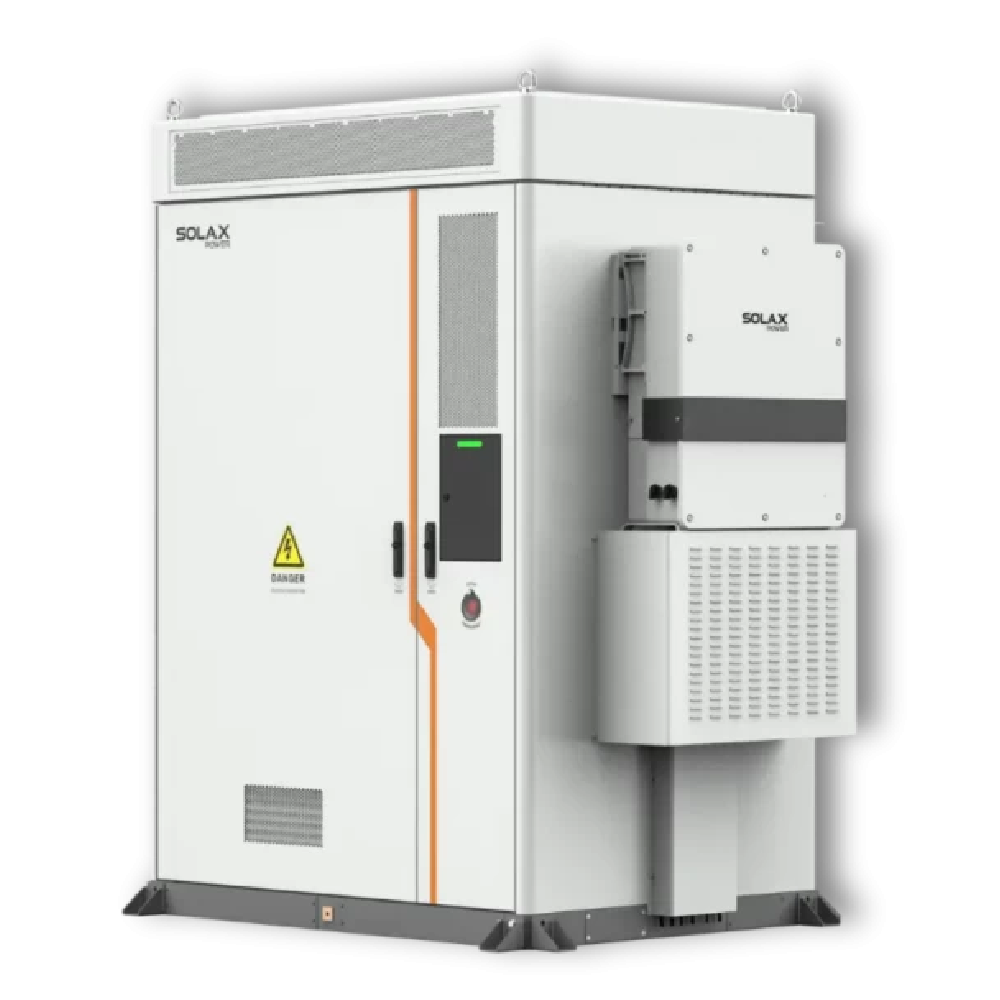

ESS-AELIO Hybrid C&I ESS Cabinet | 50kW / 60kW | 100/200kWh
Its modular architecture allows flexible deployment for a range of applications, from commercial to industrial. Designed to support grid-tied and off-grid scenarios, the Hybrid ESS cabinet offers seamless integration and maximized space utilization, making it an ideal choice for growing energy demands.


High Performance

  • Max. 200% PV oversizing input
  • MPP scan for optimal energy harvest
  • Single cabinet with up to 200kWh, expandable to
  • MWh-scale capacity

Assured Reliability

  • Four-level fire safety protection
  • IP66 for inverter, IP55 for cabinet
  • Type II SPD on AC & DC side
  • Smart IV curve scan for early panel diagnosis
  • Optional AFCI protection
  • Supporting three-phase unbalance output

Smart Management

  • AI-driven intelligent algorithms for high SOC and accuracy
  • VPP ready with SolaXCloud (IEEE 2030.5, OpenADR)
  • Supporting micro-grids and diverse scenarios
  • Smart schedule, smart scene and 7×24h TOU
  • Wireless meter compatibility

Flexible Adaptability

  • Supporting grid-connected and off-grid
  • Expandable design with modular capacity options
  • Max. 40A DC input current for high power solar panel
