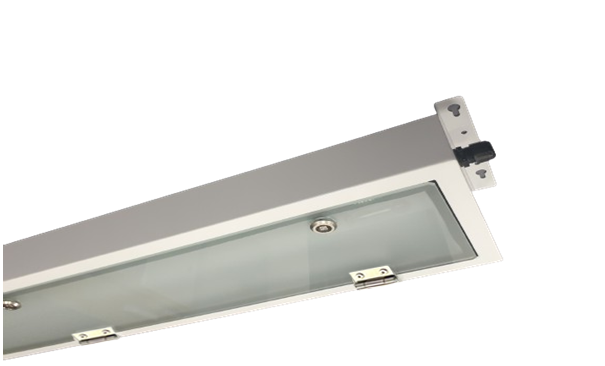

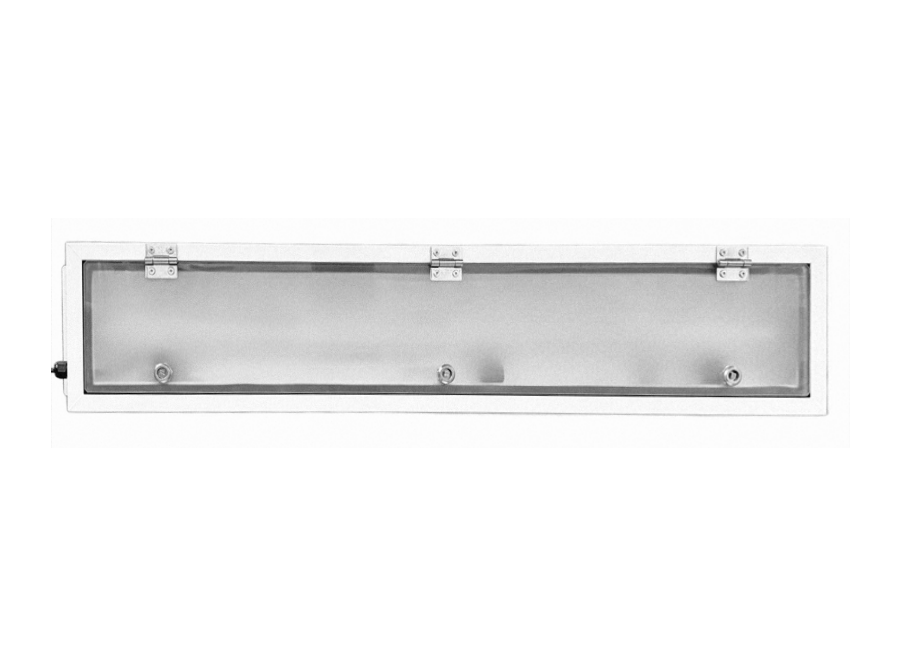

ELBA 23418997, CFSM 04 LED EX 5700K

Iluminat ANTIEX
ELBA

ELBA este unul dintre cei mai importanți producători de echipamente de iluminat din România, cu o experiență de peste 100 de ani în domeniu. Compania oferă o gamă variată de soluții de iluminat pentru aplicații industriale, comerciale, stradale și speciale, inclusiv pentru medii cu risc de explozie (ATEX).

Read more
https://www.polytrade.global/web/image/product.template/34376/image_1920?unique=8123e96
You have already submitted a query for this product today.

Această combinație nu există.

Contactați-ne
Preview TDS
Download TDS
Identificare
Brand ELBA
Cod Producător 23418997
Specificații Generale
Destinaţie Exterior
Tip Led driver
Metoda de Montare Aparente, Aparente montate pe perete
Tipul de Lampă Modul LED
Puterea Luminii de la 20 la 100
Număr de Lămpi Modul LED
Clasificare IP IP65
Tensiune Nominală 230 Vdc
Putere Maximă Nominală 53 W
Curent Nominal -
Clasa de Protecție I
Greutate 9.8 Kg
Temperatura Ambientală -20 >< +40 °C
Lungime 1270 mm
Înălţime 140.0 mm
Lăţime 240.0 mm

General Description & Application

The CFSM-04 LED EX luminaire is intended for lighting in environments with potentially explosive atmospheres group II, zone 1 and 2 (gas) and zone 21 and 22 (combustible dust), at ambient temperatures between -20°C and +40°C.

  • White painted metal housing.
  • Diffuser made of thermally tempered, sandblasted glass.
  • LED module Ex: II 2G Ex mb IIC.
  • Electronic driver included: II 2G Ex eb mb IIC Gb.
  • Polyamide cable glands Ø7–Ø13 mm.
  • Metal latches with locking.
Usage
  • Lighting in ATEX areas: group II.
  • Areas gas: 1 and 2.
  • Dust zones: 21 and 22.
  • Operating temperature: -20°C … +40°C.
Advantages
  • Robust construction with metal housing.
  • ATEX certified explosion protection.
  • Extended LED module life.
  • Efficient light dispersion through sandblasted glass.
Technical Data
  • Number of terminals: 3 (N, L, PE).
  • Protection: II 2G Ex eb mb IIC T6 Gb.
  • Protection: II 2D Ex tb IIIC T70°C Db.
  • Protection types: eb (increased safety), mb (encapsulation), tb (housing protection).
  • Standards: SR EN IEC 60079-0:2018; SR EN 60079-7:2016+A1/2018+A11/2024; SR EN 60079-18; SR EN IEC 60079-31:2024; SR EN 60598-1.
  • Certificate: INSEMEX-OEC.ATEX.25.0308X.
Light Source
  • LED module 5700K or 5000K, CRI ≥80.
  • Lifespan: L80B50 > 80,000 hours (Ta = 25°C).
  • Equivalent to T8 Ø26 mm fluorescent lamps.
Color

White
