  2. Solis, S6-EH1P5K-L-PLUS, 5000 W, Invertor de stocare a energiei hibrid monofazat

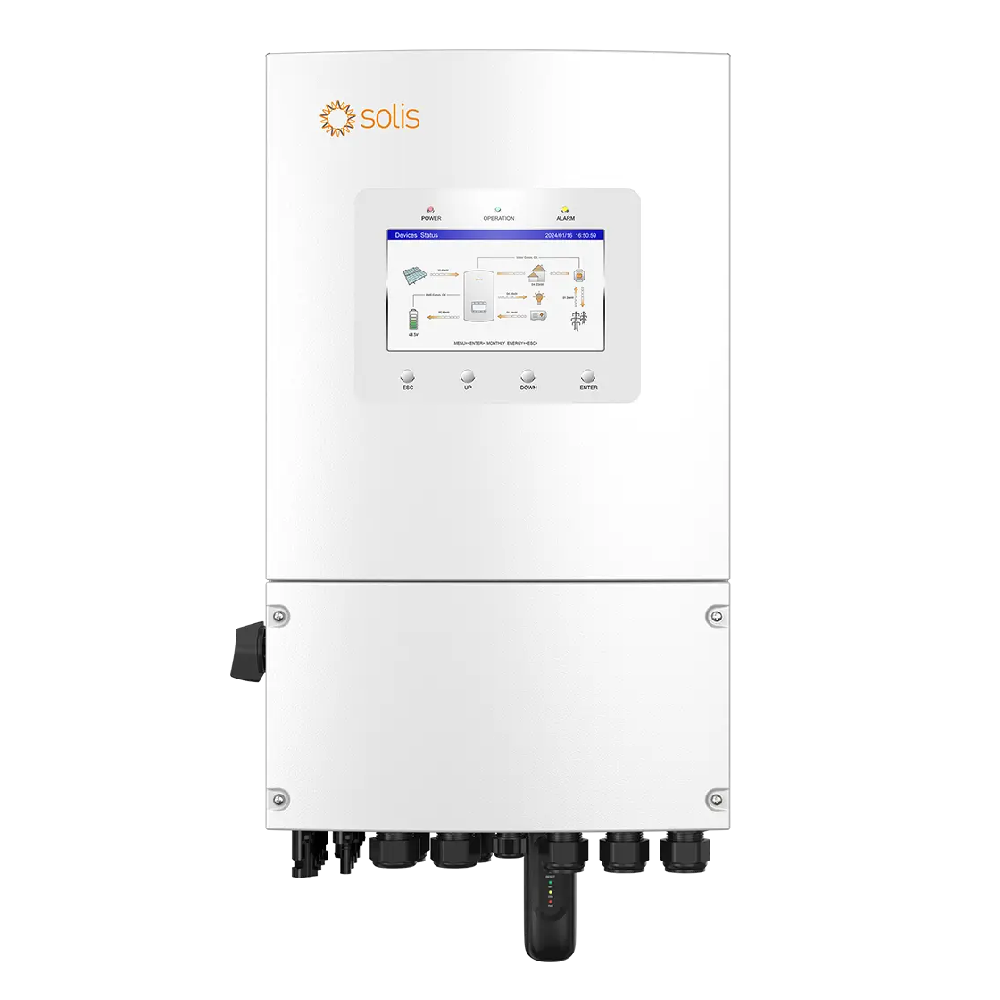

Solis, S6-EH1P5K-L-PLUS, 5000 W, Invertor de stocare a energiei hibrid monofazat

Invertoare
SOLIS

Established in 2005, Ginlong (Solis) is recognized as the world’s third-largest PV inverter manufacturer. As a global provider of solar and energy storage solutions for residential, commercial, and utility-scale customers, the company delivers value throughout the solar supply chain. Operating under the Solis brand, its solar inverter product line utilizes innovative string technology, ensuring top-tier reliability validated by rigorous international certifications.

Read more
https://www.polytrade.global/web/image/product.template/16354/image_1920?unique=ab4a244
You have already submitted a query for this product today.

Această combinație nu există.

Contactați-ne
Preview TDS
Download TDS
Identifications
Marcă Solis
Cod producător S6-EH1P5K-L-PLUS
Tip Single Phase Hybrid Energy Storage
General Specifications
Lățime 335.0 mm
Înălțime 560.0 mm
Adâncime 253.0 mm
Greutate 23.0 Kg
Temperatura Min. de funcționare -40.0 °C
Temperatura Max. de funcționare 60.0 °C
Altitudinea Max. de operare 3000.0 m
Umiditate relativă N/A %
Topologie High frequency isolation (for battery)
Evaluare IP IP66
Eficienţă Max. 96.2 %
Input
Tensiunea Max. de intrare 500.0 V
Tensiune de intrare nominală 330.0 V
Curent Max. de intrare 16/16 A
Max.Curent De Scurtcircuit 20/20 A
Tensiunea de pornire 90.0 V
Nr. de MPPTS 2.0
Număr max. de intrări 2.0
Intervalul de tensiune de operare MPPT 90 - 435 V
Output
Putere de ieșire nominală 5000.0 W
Max. AC Putere aparentă 5000.0 VA
Max. Putere de ieșire N/A W
Tensiunea nominală de ieșire AC 220/230 VA
Frecvența nominală a rețelei 50/60 Hz
Curent Max. de ieșire 22,8/21,8 A
Distorsiune armonică totală <2 %
Factor de putere >0,99
Protection
Protecție împotriva insularizării No
Protecția la scurtcircuit AC No
AC Protecție la supracurent No
Detectarea izolației No
Protecție la supratensiune AC No
Protecție la supratensiune DC No
Conexiune inversă DC Yes
Communication
WiFi Optional: Wi-Fi, GPRS, LAN
RS485 Yes
BUS de monitorizare (MBUS) N/A
Afișaj 7.0" LCD display & Bluetooth + APP
USB No

General Description & Application

S6-EH1P(3-8)K-L-PLUS

Key Features:

  • Single Phase Low Voltage Energy Storage Inverter

  • S6-EH1P(3-8)K-L-PLUS series energy storage inverter is suitable for residential PV energy storage system, support up to 32A MPPT current input, suitable for various high power PV panels; 6-stage timed charge and discharge function, integrated battery treatment and protection functions, more friendly to batteries. And can support multiple inverters in parallel to form a single-phase or three-phase system with a maximum power of 48kW. With UPS switching and provides an independent generator interface to make energy applications more reliable. The product provides solutions for demanding power scenarios with residential energy storage systems.
