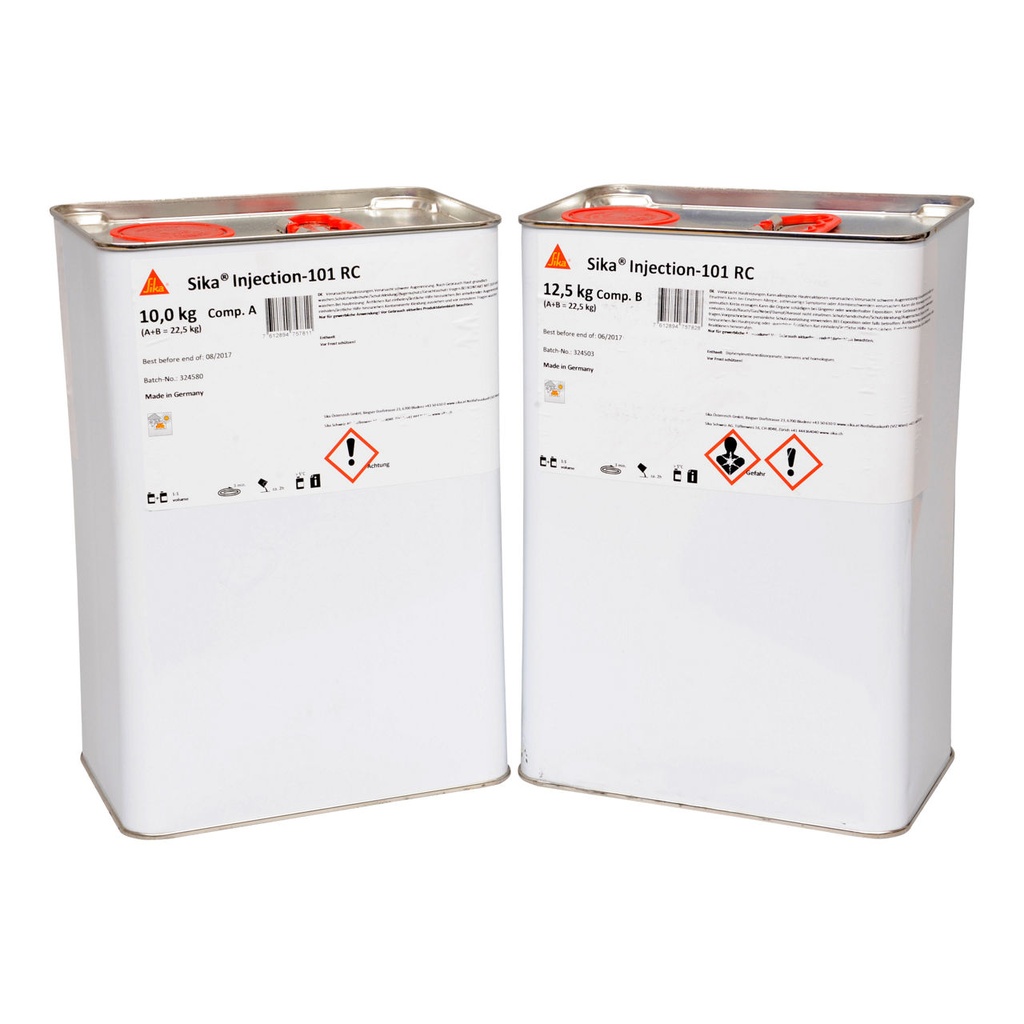

Sika Injection-101 RC, Flexible Polyurethane Injection Resin for Temporary Sealing, Exterior

Sika Injection-101 RC, Flexible Polyurethane Injection Resin for Temporary Sealing, Exterior

Waterproofing
SIKA

Sika is a global leader in specialty chemicals for the construction and industrial sectors. The company develops and supplies innovative products and systems for bonding, sealing, damping, reinforcing, and protecting structures. With a strong focus on sustainability and performance, Sika serves a wide range of applications including concrete production, waterproofing, roofing, flooring, and structural strengthening.

Read more
https://www.polytrade.global/web/image/product.template/18387/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
General Specifications
Packaging Part A: 10 kg, 20 kg; Part B: 12.5 kg, 25 kg
Width mm
Length m
Weight Kg
Usage Temporary waterstopping of high water intrusions in cracks, joints and cavities in concrete and masonry.Waterstopping in special applications such as bored or sheet pile walls, anchor heads and microtunneling.To achieve permanent watertight crack sealing inject with Sika Injection-201 CE or Sika Injection-203 after temporary waterstopping
Chemical Base Water-reactive polyurethane resin
Usage Area Exterior
Color Part A (Resin): Colourless; Part B (Hardener): Brown
Storage Conditions The product must be stored in original, unopened and undamaged packaging in dry conditions at temperatures between +5 °C and +35 °C. Always refer to packaging
Density Part A: ~1.00 kg/l; Part B: ~1.25 kg/l
Consumption N/A

Polyurethane flexible injection resin for temporary waterstopping

Sika® Injection-101 RC is a 2-part, polyurethane, low viscous, fast foaming, water-reactive injection resin. It cures to a dense flexible foam.

  • Foaming reaction only takes place in direct contact with water
  • Can be injected as a single component system
  • Free foaming expansion up to 40 times
  • Can be accelerated using Sika® Injection-AC10 in cold temperatures (< + 10 °C)
Usage
  • Temporary waterstopping of high water intrusions in cracks, joints and cavities in concrete and masonry.
  • Waterstopping in special applications such as bored or sheet pile walls, anchor heads and microtunneling.
  • To achieve permanent watertight crack sealing inject with Sika® Injection-201 CE or Sika® Injection-203 after temporary waterstopping.

Advantages
  • Foaming reaction only takes place in direct contact with water
  • Can be injected as a single component system
  • Free foaming expansion up to 40 times
  • Can be accelerated using Sika® Injection-AC10 in cold temperatures (< + 10 °C)
Packaging
Part A (Resin)10 or 20 kg
Part B ( Hardener)12,5 or 25 kg

Refer to current price list for packaging variations.
Colour
Part A (Resin)Colourless
Part B (Hardener)Brown
Technical Information
Expansion

Expansion start~15 seconds after contact with water
Expansion end~67 seconds

Values at +20 °C
Application Information
Mixing Ratio

Part A : Part B =  1:1 by volume

Reaction times
(PM 10081-11)

0 % Sika® Injection-AC10 *
Material temperature

Expansion start

Expansion end

+5 °C~19 sec~89 sec

+10 °C

~17 sec

~88 sec

+20 °C

~16 sec

~70 sec

5 % Sika® Injection-AC10 *
Material temperatureExpansion start

Expansion end

+5 °C~12 s~57 s
+10 °C~11 s~49 s

+20 °C

~10 s~39 s

10 % Sika® Injection-AC10 *

Material temperature

Expansion start

Expansion end

+5 °C~9 s~41 s

+10 °C

~8 s

~37 s

+20 °C

~7 s

~35 s

* Dosage of Sika® Injection-AC10 in % by weight of Sika® Injection-101 RC (Parts A+B)

 The data above are laboratory parameters and may deviate depending on the situation and conditions on site.

The reaction speed (foam formation) is influenced by the temperatures of the mixed material, the structure and the contact water, plus the hydrodynamic conditions.

Smaller volumes can be used at a ratio of  Part A : Part B =  1:1 by volume
Ambient Air Temperature

+5 °C min. / +35 °C max.
Substrate Temperature

+5 °C min. / +35 °C max.
Pot Life

~2 hours (at + 20 °C)

(ISO 9514)
